Clay Paky Alpha Spot HPE 1500 Instruction Manual

Hide thumbs Also See for Alpha Spot HPE 1500:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
INDEX
Pag.
Contents
2
Safety information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
7
Menu setting
15
Maintenance
23
Technical information
23
Cause and solution of problems
24
Channel functions

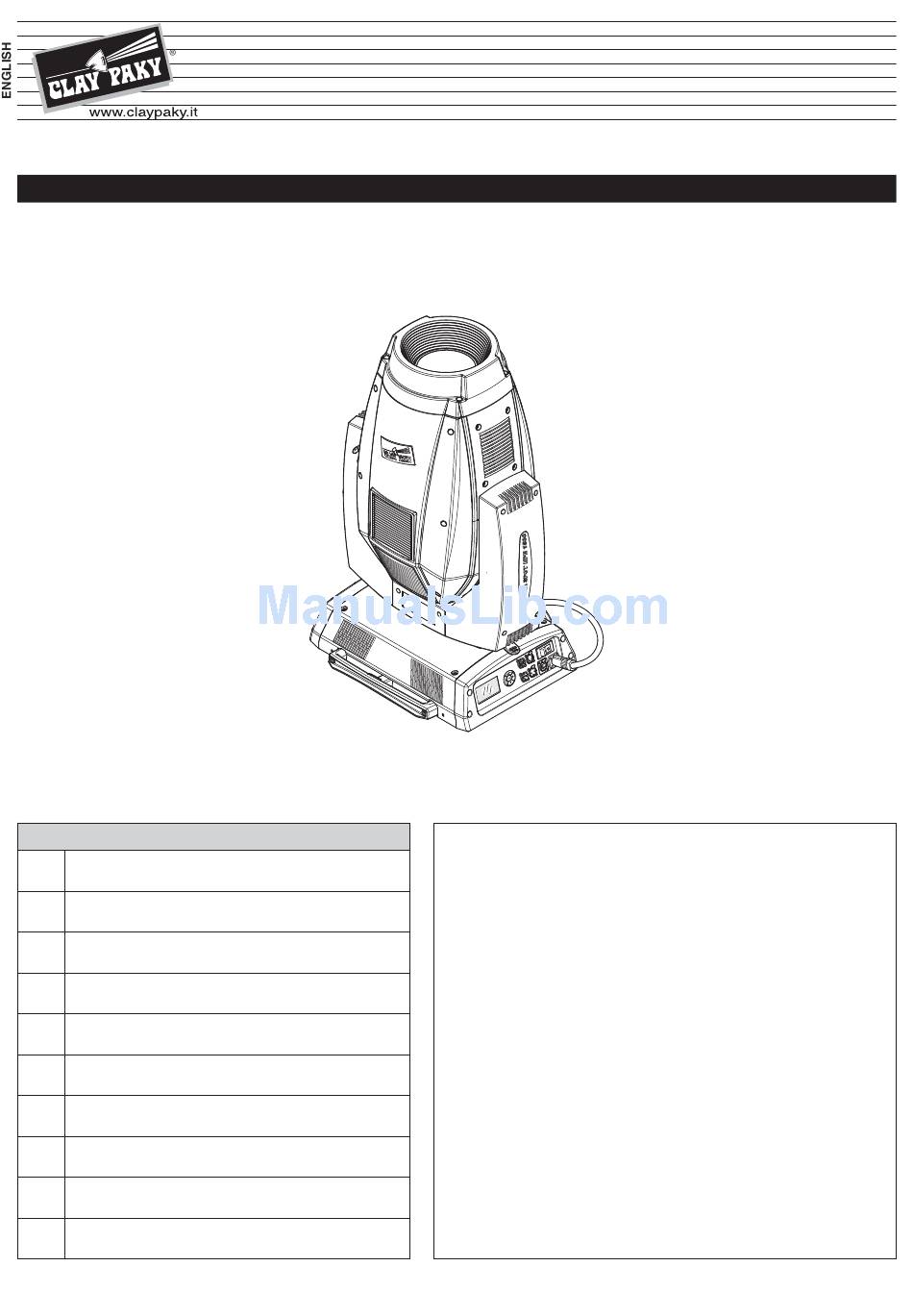

ALPHA SPOT HPE 1500
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
1
C61325

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alpha Spot HPE 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Clay Paky Alpha Spot HPE 1500

Summary of Contents for Clay Paky Alpha Spot HPE 1500

  • Page 1 Control panel the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Menu setting or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    The products referred to in this manual conform to the European Community Directives to which they are subject: • Low Voltage 2006/95/CE • Electromagnetic Compatibility 2004/108/CE ALPHA SPOT HPE 1500...
  • Page 3 (fitted into projector) 099105 2 x 183102/802 Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 ALPHA SPOT HPE 1500...
  • Page 4 WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. Connecting and disconnecting power cable - Fig. 5 ALPHA SPOT HPE 1500...

  • Page 5: Control Panel

    During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. ➔ Continue ALPHA SPOT HPE 1500...
  • Page 6 All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. ALPHA SPOT HPE 1500...
  • Page 7 Low fan speed 1500-1200 Auto fan speed Display Default Setting Preset User Access code Preset 1 Test Pan / Tilt Advanced 1234 User Preset 2 Colour Upload User Firmware Preset 3 Beam Setup Model Gobo Calibration ➔ Continue ALPHA SPOT HPE 1500...
  • Page 8 – the current Universe address appears on the display. 2) Use the UP , DOWN , RIGHT keys to set the Universe address. 3) Press to confirm the selection or LEFT to keep the current setting. ALPHA SPOT HPE 1500...
  • Page 9 1) Use the UP and DOWN keys to enable (On) or disable (Off) the overwriting. 2) Press to confirm the selection or LEFT to keep the current setting. ➔ Continue ALPHA SPOT HPE 1500...
  • Page 10 Quiet Standard: Maximum speed and consequently maximum effects noise level. Quiet: reduces the speed of some effects, thereby reducing their noise level. 3) Press to confirm the selection or LEFT to keep the current setting. ALPHA SPOT HPE 1500...
  • Page 11 Invert Tilt Swap Pan-Tilt Encoder Pan-Tilt Colour mixing Fixed Wheel Shortcut Macro Color Adjustment Shutter on error Dimmer on Shutter Auto-focus mode Limited zoom range Silent mode Standard Power mode 1500-1200w full fan speed Display ➔ Continue ALPHA SPOT HPE 1500...
  • Page 12 0: PT-3f CPU brd (CPU board) 1: 8-Ch 2: 8-Ch 0: PT-3f (Pan / Tilt board) 3: 8-Ch x.x. 1: 8-Ch (8 channel board) 2: 8-Ch (8 channel board) 3: 8-Ch (8 channel board) ALPHA SPOT HPE 1500...

  • Page 13: Manual Control

    3) Press and use the UP and DOWN keys to select the required DMX level (value between 0 and 255). 4) Press LEFT to return to the top menu level. ➔ Continue ALPHA SPOT HPE 1500...
  • Page 14 – a confirmation message appears on the display (Reset calibration to factory default ?). 2) Select YES to reset calibration to factory default or NO to keep the current setting and return to the top menu level. ALPHA SPOT HPE 1500...
  • Page 15 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 11. Closing the head covers - Fig. 12. ALPHA SPOT HPE 1500...
  • Page 16 Opening and closing lamp compartment - Fig. 13 Lamp regulation - Fig. 15 To centre the lamp, turn the three adjusting screws as shown in the figure. Lower Side Fan support plate opening and closing (Lower side) - Fig. 16 ➔ Continue ALPHA SPOT HPE 1500...
  • Page 17 085908/001 085907/001 085904/001 085903/001 085912/001 085911/001 085906/001 085901/001 Replacing fixed gobos (ø 31.5 mm - max 25 mm image - thickness max 1 mm) - Fig. 18 IMPORTANT: Please contact CLAY PAKY before using customized gobos. ALPHA SPOT HPE 1500...
  • Page 18 084629/001 084630/001 084626/001 084632/001 084628/001 084633/001 084627/001 Replacing rotating gobos (ø 37.5 mm - max 25 mm image – thickness 1 mm) - Fig. 20 IMPORTANT: Please contact CLAY PAKY before using customized gobos. ➔ Continue ALPHA SPOT HPE 1500...
  • Page 19 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 20 Thermostat Lower Side Extraction of the effect modules: Preliminary operations - Fig. 23 ➔ Continue ALPHA SPOT HPE 1500...
  • Page 21 Extraction of the effect modules - Fig. 24 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 24 and 25 in reverse order ALPHA SPOT HPE 1500...
  • Page 22 Extraction of the effect modules - Fig. 25 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 24 and 25 in reverse order ALPHA SPOT HPE 1500...

  • Page 23: Technical Information

    Signal transmission cable faulty or disconnected. Replace the cables. Incorrect addressing. Check addresses (see instructions). Fault in the electronic circuits. Call an authorised technician. Lenses or reflector broken Call an authorised technician. Dust or grease deposited. Clean (see instructions). ALPHA SPOT HPE 1500...
  • Page 24 CHANNEL FUNCTION ALPHA SPOT HPE 1500 CHANNEL MODE CHANNEL STANDARD VECTOR CYAN CYAN MAGENTA MAGENTA YELLOW YELLOW C.T.O C.T.O COLOUR WHEEL COLOUR WHEEL MACRO COLOURS MACRO COLOURS STOP/STROBE STOP/STROBE DIMMER DIMMER DIMMER FINE DIMMER FINE IRIS IRIS ANIMATED STAR GOBO...
  • Page 25 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 50% - Tilt 50%) all the others channels stay at 0%. • MACRO COLOURS - channel 6 • COLOUR MIXING - channel 1 - 2 - 3 Operation with option color mixing RGB EFFECT COLOR NAME...
  • Page 26 24 - 31 9.5 - 12.0 GOBO 3 16 - 23 6.2 - 9.0 GOBO 2 8 - 15 3.2 - 6.0 GOBO 1 0 - 7 0 - 3.0 WHITE • IRIS - channel 10 ALPHA SPOT HPE 1500...
  • Page 27 24.7 24.7 16.2 180° POSITION 16.2 180° POSITION 90° POSITION 90° POSITION 0° 0° 0° POSITION 0° POSITION • GOBO 1 FINE - channel 15 • GOBO 2 FINE - channel 18 50.0 50.0 ➔ Continue ALPHA SPOT HPE 1500...
  • Page 28 191 - 192 74.7 - 75.0 STOP 74.2 SLOW ROTATION (3 rph) 50.0 FAST ROTATION (120 rpm) 49.7 POSITION 540° ° 41.7 POSITION 450° 33.0 POSITION 360° ° 24.7 POSITION 270° 16.2 POSITION 180° POSITION 90° ° WIDE BEAM POSITION 0° ALPHA SPOT HPE 1500...
  • Page 29 (Tilt conventionally represented at 14% and option Invert Tilt Off) 64-75 25,0-29,5 MACRO 5 52-63 20,5-24,7 MACRO 4 40-51 15,5-20,0 MACRO 3 28-39 11,0-15,0 MACRO 2 16-27 6,2-10,5 MACRO 1 12-15 4,7-6,0 STAND BY BLACK 8-11 3,2-4,2 STAND BY 0,0-3,0 MACRO OFF ALPHA SPOT HPE 1500...
  • Page 30 • LAMP CONTROL (only with option LAMP DMX On) - channel: 36 Operation with option Invert Tilt (Pan conventionally represented at 0% and option Invert Pan Off) IMPORTANT: Alpha Spot HPE 1500 is not provided with hot restrike igniter EFFECT LAMP ON (1500 W) Lamp ignition after 5 s in full power levels.
  • Page 31 Dimmer - Iris -Focus effects movment - Focus - Zoom - Frost – Rotating Prism change – Frost insertion Gobo time Gobo Fix - Rotating Gobo 1/2 change – Animation Disk insertion TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data ALPHA SPOT HPE 1500...
