Clay Paky ALPHA PROFILE 700 Instruction Manual

Hide thumbs Also See for ALPHA PROFILE 700:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Manual
INDEX
Page Contents
2
Safety Information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
7
Menu setting
15
Maintenance
23
Technical information
23
Cause and solution of problems
24
Channel functions

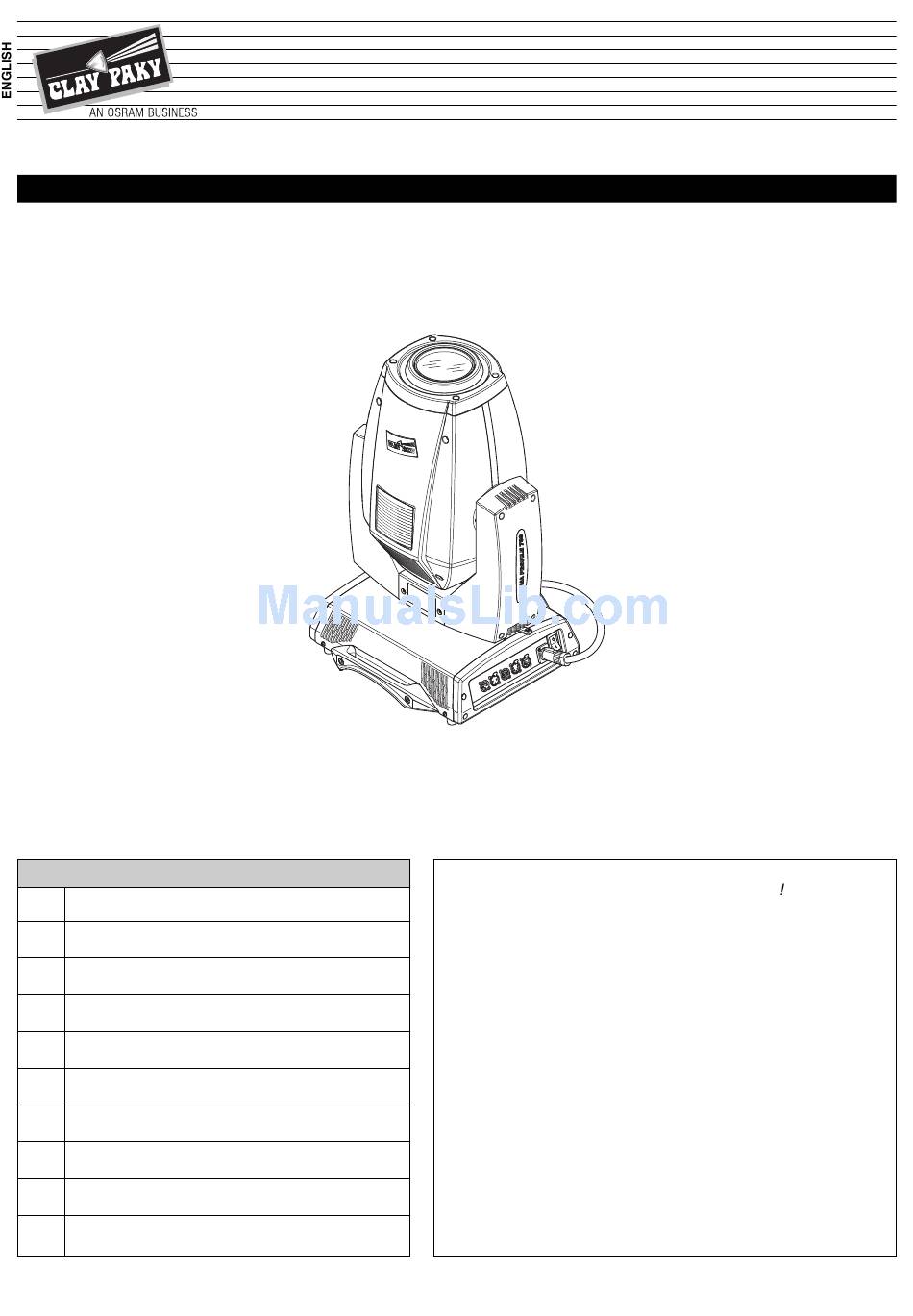

ALPHA PROFILE 700
ALPHA PROFILE 700
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
1
C61365
ST
"
"
C61366

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA PROFILE 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Clay Paky ALPHA PROFILE 700

Summary of Contents for Clay Paky ALPHA PROFILE 700

  • Page 1 Menu setting CLAY PAKY S.p.A. disclaims all liability for damage to the fitting or to other property or persons deriving from installation, use and Maintenance...

  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Clay Paky recommends you carefully read and keep the safety information on this product, also http://www.claypaky.it/en available in digital format at the following link: Ref: [FIS00U – Safety Information Alpha 700 series] INFORMAZIONI DI SICUREZZA...

  • Page 3: Unpacking And Preparation

    2 x 183102/805 Lamp 700W (fitted into projector) Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 “ ” ALPHA PROFILE 700...

  • Page 4: Installation And Start-Up

    WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. Connecting and disconnecting power cable - Fig. 5 “ ” ALPHA PROFILE 700...

  • Page 5: Control Panel

    During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. Continue “ ” ALPHA PROFILE 700...

  • Page 6: Using The Menu

    All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. “ ” ALPHA PROFILE 700...

  • Page 7: Menu Setting

    Low fan speed Test Pan / Tilt Advanced 1234 4-700W Display Auto fan speed Colour Upload Default Firmware Setting Preset Beam Setup User Model Preset 1 Gobo User Calibration Preset 2 User Menu locking Preset 3 Continue “ ” ALPHA PROFILE 700...

  • Page 8: Setup Menu

    Custom IP address Custom IP address Allows you to set the IP address manually by the user default. Custom IP mask Custom IP mask Allows you to set manually the Subnet Mask by the user default. “ ” ALPHA PROFILE 700...

  • Page 9: Options Menu

    Lets you assign the Tilt channel “home” position at the end of Reset, with- Def Pos out a DMX input signal. 1) Press , the current setting appears on the display. 2) Use the UP and DOWN keys to select one of the following settings: 12.5% Continue “ ” ALPHA PROFILE 700...

  • Page 10: Autofocus Mode

    Limited Zoom Range: The “Autofocus” works only in the optical run that Complete was specifically designed for the projector in question. Zoom Range Complete Zoom Range: The “Autofocus” also works in overrun 3) Press to confirm the selection or LEFT to keep the current setting. “ ” ALPHA PROFILE 700...

  • Page 11: Lamp Dimming

    User Load configurations: Preset 1 Preset 1 - Default preset (*) - User preset 1 Save To - User preset 2 Preset 1 - User Preset 3 Continue “ ” ALPHA PROFILE 700...

  • Page 12: Information Menu

    (Are you sure ?) appears on the display. 3) Select YES to reset partial counter or NO to keep the current setting and return to the top menu level “ ” ALPHA PROFILE 700...

  • Page 13: Manual Control

    2) Use the UP and DOWN keys to turn the lamp on (On) or off (Off) 3) Press to confirm the selection or LEFT to keep current settings and return to the top level. Continue “ ” ALPHA PROFILE 700...

  • Page 14: Advanced Menu

    MENU LOCKING Menu Locking It allows you to assign a password to lock the access to the user menu, so that only users know the password can change settings. The pass- word is 4-digit number. “ ” ALPHA PROFILE 700...

  • Page 15: Maintenance

    1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10 Closing the head covers - Fig. 11 Continue “ ” ALPHA PROFILE 700...
  • Page 16 CAUTION: fast lamp ON-OFF cycles (for example 10 minutes ON / 10 minutes OFF) will reduce the lamp life. Upper Side Lower Side Lamp regulation - Fig. 14 To centre the lamp, turn the three adjusting screws as shown in the figure. “ ” ALPHA PROFILE 700...
  • Page 17 086401/001 085531/001 Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness 1.1 mm) - Fig. 16 IMPORTANT: Please contact CLAY PAKY before using customized gobos. IMPORTANT: Use only glass gobos on the rotating gobos wheel. Continue “...
  • Page 18 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 19 Upper Side Lower Side Extraction of the effect modules: Preliminary operations - Fig. 19 Upper Side Upper Side Continue “ ” ALPHA PROFILE 700...
  • Page 20 Extraction of the effect modules - Fig. 20-21-22 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. “ ” ALPHA PROFILE 700...
  • Page 21 Battery removal - Fig. 23 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 “ ” ALPHA PROFILE 700...

  • Page 22: Optional Accessories

    OPTIONAL ACCESSORIES C61188 - HEAVY FROST FILTER KIT “ ” ALPHA PROFILE 700...

  • Page 23: Technical Information

    Signal transmission cable faulty or disconnected. Replace the cables. Incorrect addressing. Check addresses (see instructions). Fault in the electronic circuits. Call an authorised technician. Lenses or reflector broken Call an authorised technician. Dust or grease deposited. Clean (see instructions). “ ” ALPHA PROFILE 700...

  • Page 24: Channel Function

    NB: To prevent accidental breakage of the effects, which could collide with each other during transport, ALPHA PROFILE 700 & “ST” before switching the projector OFF check that all the projector Channels have been excluded (DMX level = 0 bit).
  • Page 25 LAVENDER + AQUAMARINE LAVENDER Random Macro Color LIGHT GREEN + LAVENDER LIGHT GREEN (only for Macro effects) GREEN + LIGHT GREEN GREEN Unused Range CTO + GREEN RED + CTO WHITE + RED WHITE Continue “ ” ALPHA PROFILE 700...
  • Page 26 • GOBO FINE - channel 13 EFFECT MAXIMUM APERTURE 252 - 255 FAST PULSATION, FAST CLOSING SLOW PULSATION, FAST CLOSING FAST PULSATION, FAST OPENING SLOW PULSATION, FAST OPENING FAST PULSATION SLOW PULSATION MAXIMUM APERTURE 128 - 131 MINIMUM APERTURE “ ” ALPHA PROFILE 700...
  • Page 27 EFFECT EFFECT BLADE IN BLADE IN BLADE OUT BLADE OUT • BLADE UP 2 - channel: 17 • BLADE RG 2 - channel: 21 EFFECT EFFECT BLADE IN BLADE IN BLADE OUT BLADE OUT Continue “ ” ALPHA PROFILE 700...
  • Page 28 • AUTOFOCUS DISTANCE - channel 28 AUTOFOCUS priority: EFFECT 1 - Blades 100 METRES 2 - Rotating Gobo 3 - Iris 10 METRES 9 METRES 8 METRES 7 METRES 6 METRES 5 METRES 4 METRES 3 METRES AUTOFOCUS OFF “ ” ALPHA PROFILE 700...
  • Page 29 Off) 40-51 MACRO 3 28-39 MACRO 2 16-27 MACRO 1 12-15 STAND BY BLACK 8-11 STAND BY MACRO OFF Operation with option InvertPan (Tilt conventionally represented at 35 bit and option Invert Tilt Off) Continue “ ” ALPHA PROFILE 700...
  • Page 30 (Pan conventionally represented at 0 bit and option Invert Pan Off) • LAMP CONTROL (only with option LAMP DMX On) - channel: 37 IMPORTANT: Alpha Profile 700 is not provided with hot restrike igniter EFFECT LAMP ON (FULL POWER) Lamp ignition after 5 s in full power levels.

  • Page 31: Timing Channels

    Dimmer – Zoom – Focus – Frost - Prism – Iris Gobo time Rotating Gobo change - Framing - Framing rotation TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data “ ” ALPHA PROFILE 700...
  • Page 32 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
