INSTRUCTION MANUAL
IMPORTANT: Read carefully. It is essential for the correct and safe use of the
equipment that erectors and operators should be fully conversant with the
information and instructions given in this manual.

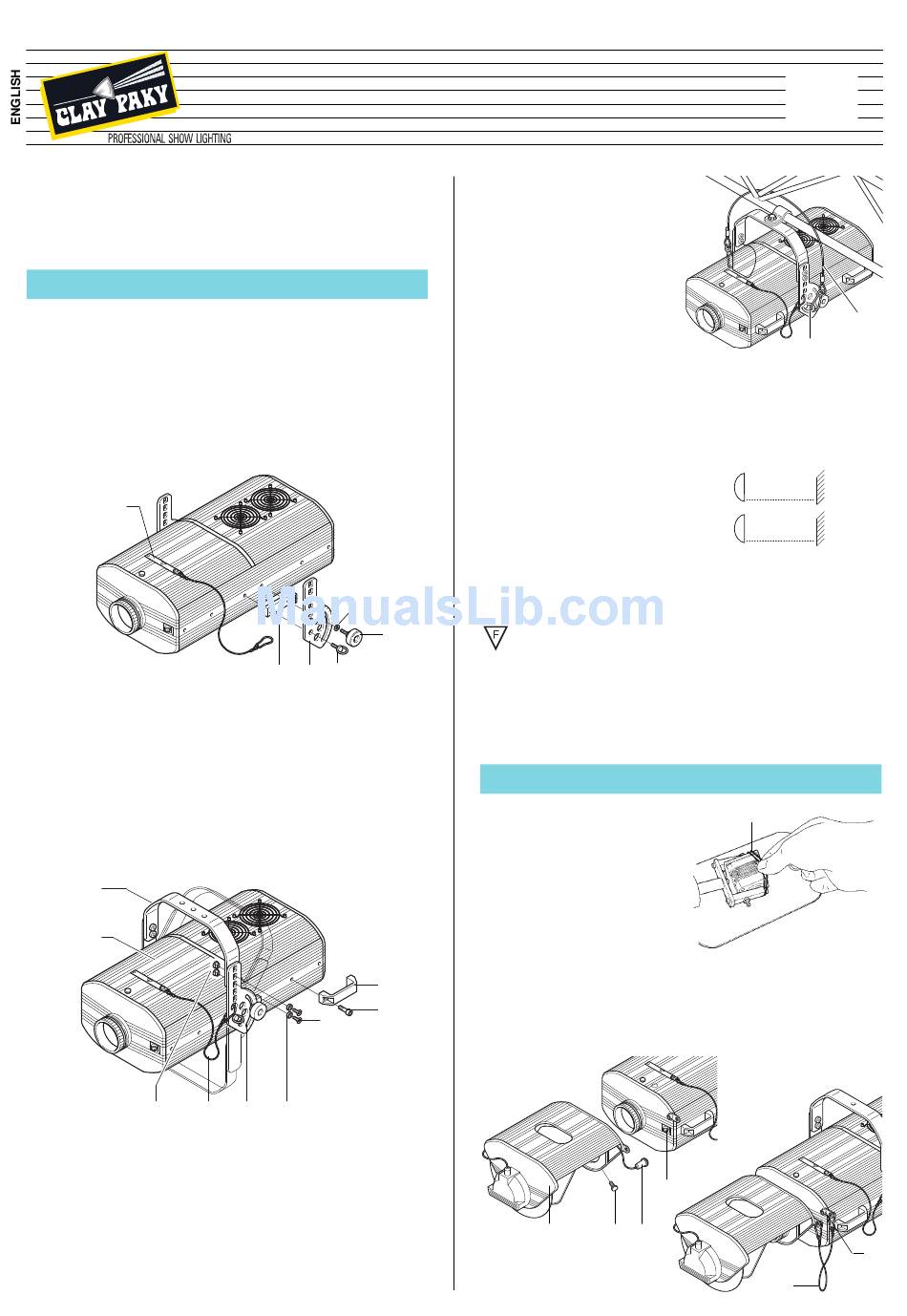

1. INSTALLING THE PROJECTOR
• Unpacking
Open the box, remove the projector from the packing and place it on a flat horizontal
surface. Unpack the standard accessories supplied with the equipment. Inspect the
lamp change label (1) and replace with one of the optional language versions if nec-
essary. Make certain that the label is never removed, as it displays important safety
information.
• Initial assembly operations
Position the block (2) over the threaded holes on the projector housing, offer the grad-
uated plate (3) and secure with the eyebolt (4), then fit the knob (5) and washer (6).
1
Align the bracket (7) with the plates (3) so as to give the desired height, insert the
bushing (8), the countersunk washer (9) and the screw (10) in the selected holes
and secure with the Allen key supplied. The bracket (7) can also be fitted from the
underside of the projector by reversing the position of the graduated plates (3).
If the projector has been shipped with plate (3) already fitted, before removing
the plate (if necessary) remove the safety bolt located inside the fixture in corre-
spondence with eyebolt (4).
Adjust the bracket to the desired angle and secure by tightening the knobs (5).
Fix the safety wire (11) of the lamp access cover (12) to the graduated plate (3).
Fit the four side handles (13) with the screws (14) provided. (Touring Version only).
7
12
8
• Fitting the lamp
Refer to directions for replacement of the lamp given under heading 7 MAIN-
TENANCE.
• Installing the projector
The projector can be mounted any position without its operating characteristics
being affected.
IMPORTANT: fix the projector in the desired position utilizing the holes in the
bracket (7). Secure preferably using two ø12 bolts with nuts and lock washers.
Make certain that the anchorage is stable before positioning the projector.
GOLDEN SCAN 3
6
2 3 4
10
11 5 9
• Fitting the safety wire
The projector must never be erected
without the safety wire (15). The
wire is secured to the gantry or other
structure, then anchored to the eye
bolts (4) on the projector itself.
IMPORTANT: the safety wire must be secured to the projector and to the support-
ing structure in such a way that if the bracket should fail, the projector will fall as
short a distance as possible.
Following any such failure, the safety wire must be replaced with a genuine Clay
Paky spare.
• Minimum distance from target objects
The projector must be positioned in such a way
that objects struck by the beam are separated
from the lens at least by the distance indicated on
the lamp change label against the symbol shown
alongside.
• Minimum distance of inflammable materials from any part of the equipment:
0.1 m (4") for HTI 1200 and 0.07 m (3") for HMI 575.
5
The appliance may be mounted on normally inflammable surfaces.
IMPORTANT: For better and more reliable operation of the projector, the ambient
temperature must not exceed 35° C (95° F). Protection factor IP 20: the appliance is
protected against penetration of solid bodies more than 12mm (0.5") in diameter
(first digit 2), but can be damaged by spray, jet, drip or rain water (second digit 0).
2. INSTALLING THE MIRROR HEAD
• Unpacking
Open the box, take out the mirror head,
position it on a horizontal surface and
remove the elastic transit bands (16) from
the Tilt motor
• Fitting the mirror head
Fit the mirror head (17) to the projector and secure with the three knobs (18).
13
Connect the mirror head plug (19) to the socket (20) located on the front of the
projector.
14
Connect the metal safety wire (21) to the tag (22) on the projector.
17
1
(8' 2")
2.5 m
(5' 11")
1.8 m
16
20
18 19
21
HMI 575
HMI 1200
HMI 1200TV
15
4
HMI 1200
HMI 575
22
