Disassembly and assembly of stabilizer

Disassembly

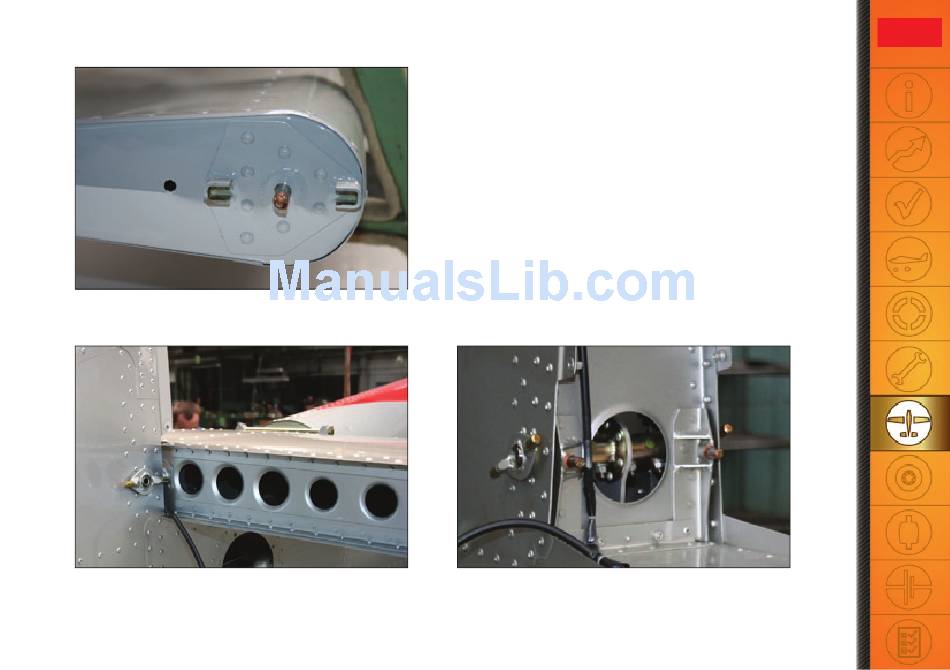

- Unscrew the screws of the fi ber-glass "boot" of the fi n; take
the fi ber-glass "boot" out of the fuselage
- Remove fi xation to the cables; take trim control cables out
- Take the split pins out of the stabilizer bolt nuts; unscrew the
M6 nuts
- Grasp the stabilizer and take out the bolts; lift the stabilizer
until it is out of the front attachment points and than move
forward until it is out of the rear attachment points and put
it on a proper pad
