Maintenace Manual SL 200
Book 2
2.5.

Disassembly and assembly of elevators

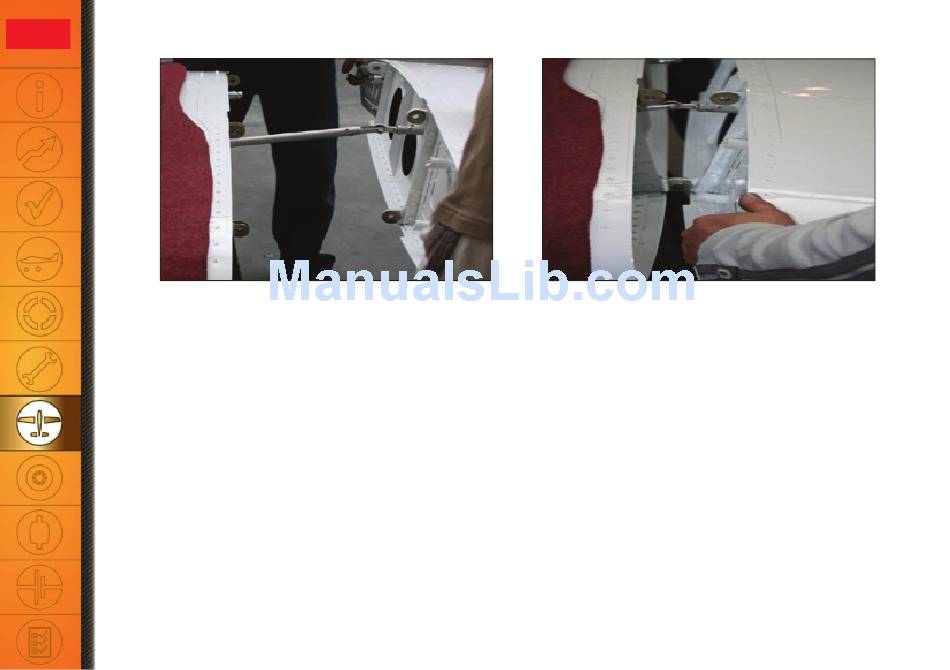

Disassembly
- Disconnect the trim connector on the right elevator
- Take off the split pins on the outer attachment points of the elevator
- Unscrew the nut take out the screw on one side
- Extend the elevator out of stabilizer attachment point fi rst, and then out of the fi n carrier
- Wrap joint bearings with scotch tape to guard against dirt
- Disconnect the other elevator in the same way
Assembly
- Lightly lubricate inner elevator attachment by Cu 7439 plus; drip oil + M55 plus on joint bearings
- Insert the front attachment points of the stabilizer to the front attachment points of the fuselage
- Connect the trim cable with the connector on the right side of the elevator
- Insert the inner attachment point (bolt) of the elevator to the carrier on the fuselage
- Insert the screw, put the washer and the nut on, and tighten (5,5 Nm (4.06 lbf.ft)) and secure with new split pins
- Carry on analogically with the second half of the elevator but remember, that there is no balancing tab
SL200 FMM 2009-10-21
