Adjusting jaw clearances

Wheel is disassembled; brake is out of the hub.
Adjusting of lever's operational range:
- Turn to left (counter clockwise) by adjusting screw on the lever till beginning of screw thread. Set the operational
range using the setting screw down the side of lever's collar to leave the highest possible stroke and free lever does
not interfere with the parking brake lock. There should be clearance of cca 1 mm (0.039 in).
Adjusting of clearances on brake pads.

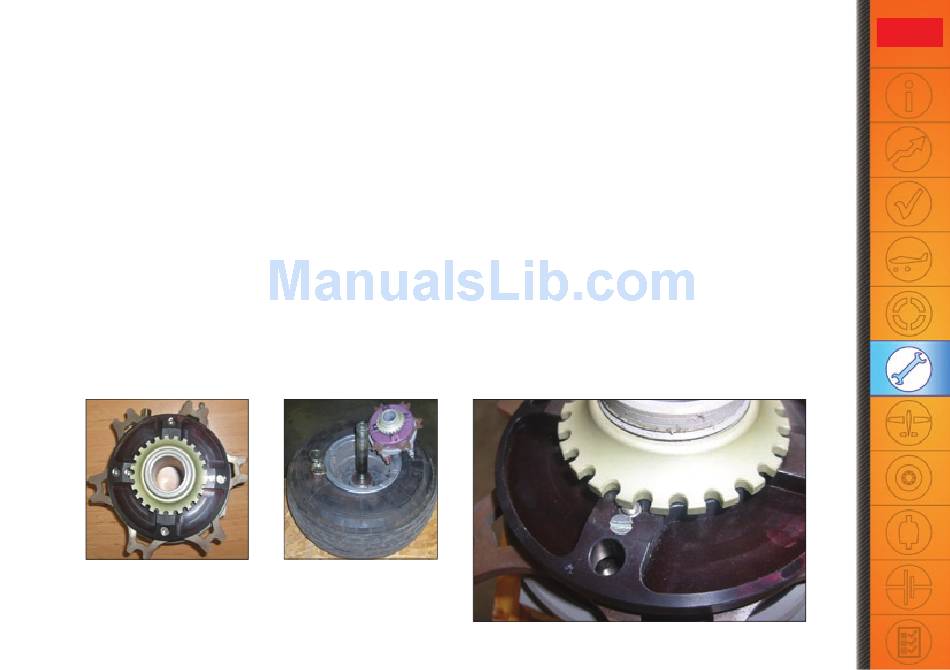

- Tighten the central nut with outer toothing and concurrently press in the locking pin. If the pin is not in the mortise,
loosen the nut until the pin goes into the mortise.
- Loosen the nut about 5 cogs until the pin locks the nut. Total clearance between brake pads is 0,5-0,7 mm
(0.02-0.028 in) and lever's stroke has to correspond to this range (cca 60 mm (2.362 in) measured on the top of
the lever).
- This working range can be kept during its operation by turning the adjusting screw according to condition of the
brake pads.
