Maintenance Manual SL 200
2.

WINGS AND HORIZONTAL TAIL UNIT DISMANTLING

2.1.

Removal of cover strip between wing and central section

- Unhook the covering strip on the bottom part of the wing (by grasping the hook and pulling the spring)
- Disengage both parts of the strip (they are held together by M4 screws (x2) and riveting nuts)
- Shift both strip portions out of the wing backwards (towards the trailing edge)
- Take off the strip, which is around the other wing in the same way
Replace in opposite way. Remember correct position of facing sheets into the covering strip. It is recommended
to lightly lubricate doubled part of the covering strip. Stated description is valid for metallic covering strips. If the
covering tape is used on your aircraft, you have to check, if basic tape is still sticked on the wing and central section
facings. Use tape PATTEX POWER TYPE as basic and covering tape.
SL200 FMM 2009-10-21

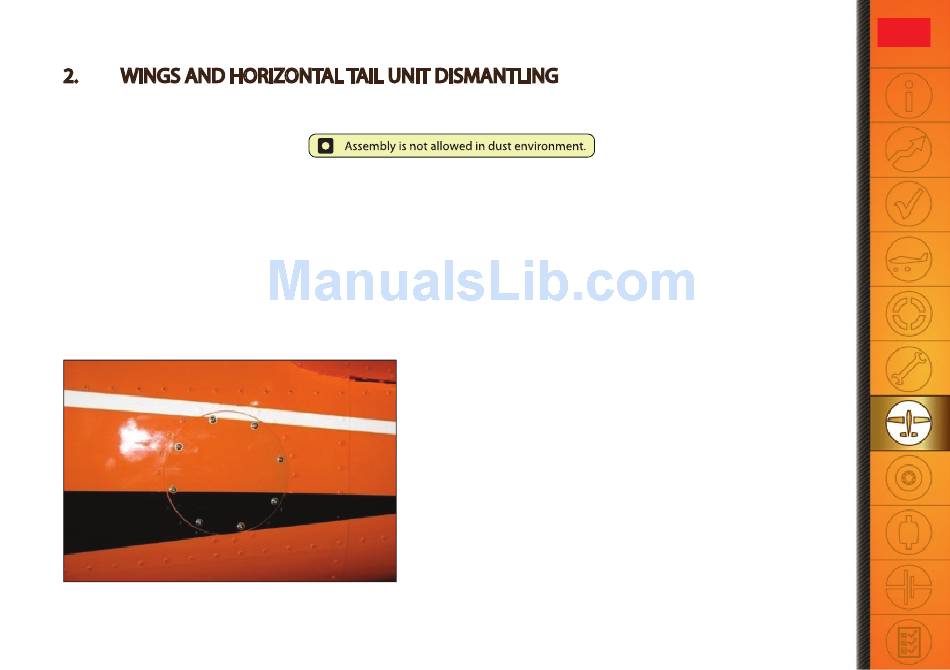

2.2. Removal and replacement of inspection
covers
For the inspection covers on the bottom side of the wings and
on the trailing edge close to fl aps:
- Insert a suitable instrument into 4 mm hole
- Pull and lift cover until spring clip is freed
- Move the cover round to free the other clips and pull off cover
- Round covers may be moved in any direction
- Rectangular covers may only be moved from side to side
Replace in opposite way.
