Maintenance Manual SL 200
Assembly:
- clean all parts before assembly from all contamination and old lubrication
- if plastic parts are worn so that piston rod touches the tube, it is necessary
to replace it.
- set the rubber springs and metal fi llers on the rod by alternating
them – for one absorber use 8 rubber springs and 7 metal fi llers
- set the upper stop on the rod behind the last rubber spring
- the slide on the plastic bearing and plastic stop
- set the M5 screw to the plastic stop
- slide together both parts of the absorber
- set two M3 screw with washers – join upper stop with upper part of
absorber (adjust properly the plastic bearing). Secure M3 screws with
LOCTITE 246
- press together the absorber and set inside the hole the spacing tube and
the M8 screw
- use M8 self-locking nut with washer and tighten it by 23Nm moment
3.4.

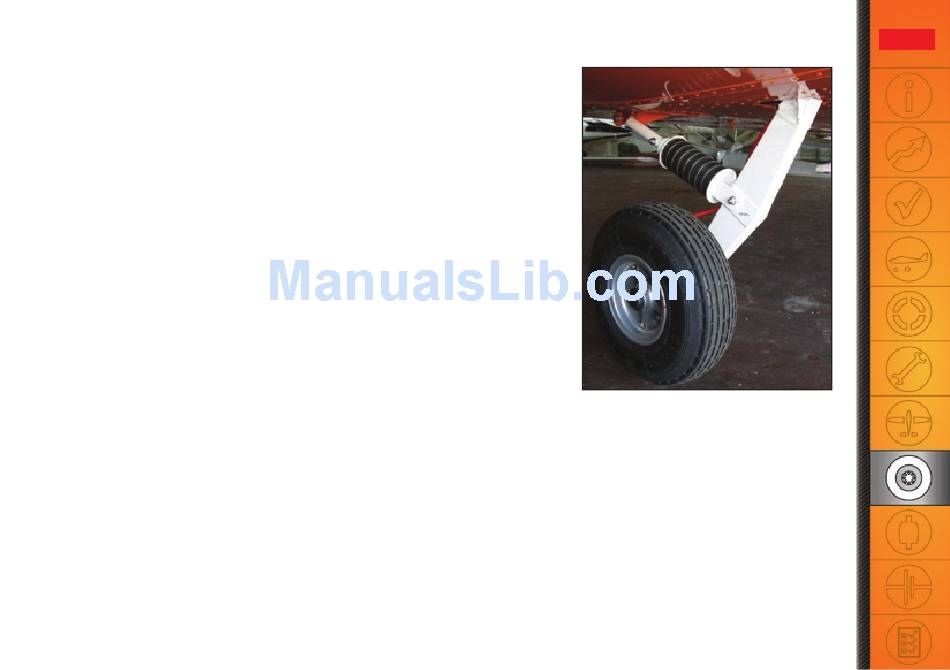

Front undercarriage shock absorber removal and assembly

Disassembly
- Remove split pins; unscrew castle M8 nuts and remove upper and lower M8 bolts from the ends of the shock
absorber – do not interchange them!
- Remove spacing tubes from ends of shock absorber
- Remove shock absorber from mounts
SL200 FMM 2009-10-21
101
