- The rentention tabs on the cover and the processor contacts should point
each other.

Installing a Processor

1. Remove the processor from its shipping materials, and, if applicable, remove
its protective cover.

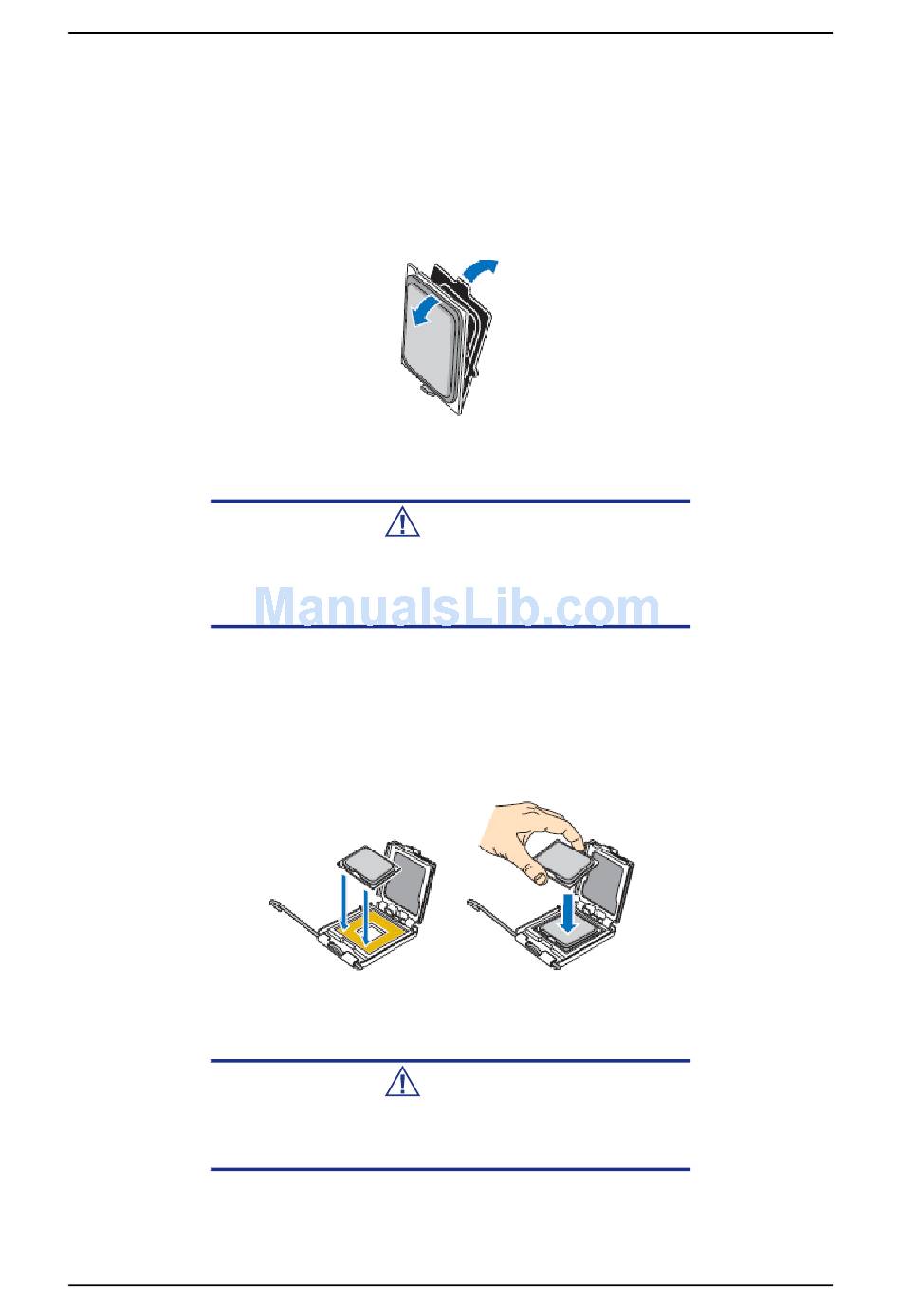

Figure 139: Removing from the shipping materials
■
Do not touch the processor sensitive contacts.
■
Hold the processor by the substrate edges.
2. Locate the connection 1 indicator and the two orientation key notches on the
CPU and on the socket.
3. Grasp the processor with your thumb and index finger by the orientation key
notches.
4. Carefully lower down the processor into the socket body.
Do not tilt the processor or shift it into place, doing so may dam-
age the sensitive contacts.
Caution
Figure 140: Installing the processor
Caution
