Ubiquiti AiAF-5 Quick Start Manual

Ubiquiti AiAF-5 Quick Start Manual

5 ghz point to point 1.0+ gbps radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

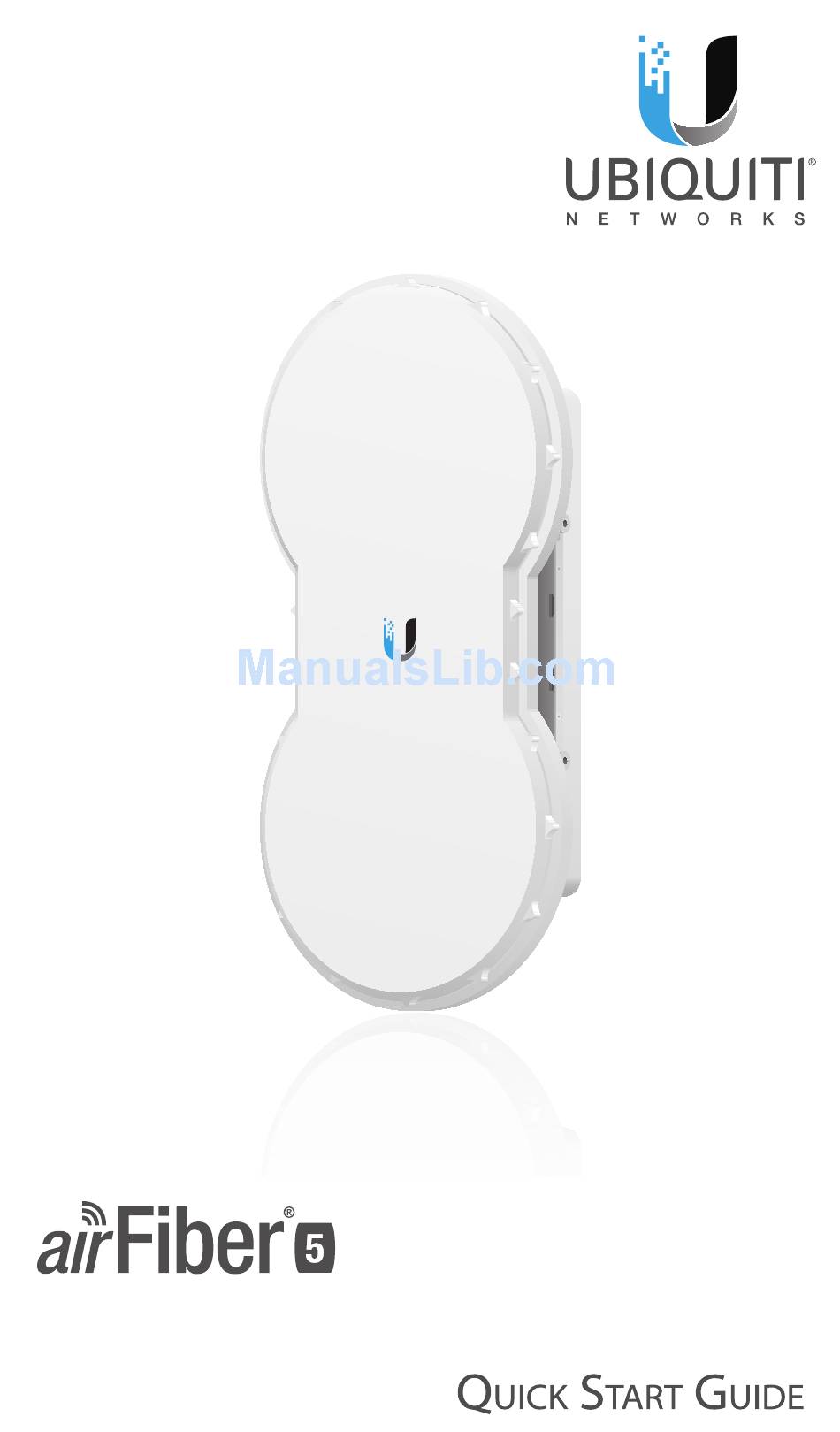

5 GHz Point to Point
1.0+ Gbps Radio
Model: AF-5, AF-5U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AiAF-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti AiAF-5

Summary of Contents for Ubiquiti AiAF-5

  • Page 1 5 GHz Point to Point 1.0+ Gbps Radio Model: AF-5, AF-5U...

  • Page 3: Package Contents

    Power Cord Quick Start Guide (Qty. 2) (50V, 1.2A) TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 4: Hardware Overview

    airFiber® AF-5/AF-5U Quick Start Guide Hardware Overview Side Lanyard Attachment Loop Elevation Rod Hex Nut to adjust Elevation Rod Pre-Installed M10 x25 Flanged Bolts Grounding Point Lanyard Attachment Loop Assembled View...
  • Page 5 Hardware Overview Interfaces OVERLOAD MASTER LINK REMOTE RESET 4X TO 0.25X LOCAL MANAGEMENT DATA SPEED SPEED Interface Description To reset to factory defaults, press and hold the Reset Button Reset button for more than five seconds while the unit is already powered on. Displays the received signal strength in dBm of Remote Display the remote airFiber radio.
  • Page 6 airFiber® AF-5/AF-5U Quick Start Guide LEDs OVERLOAD MASTER LINK REMOTE RESET 4X to 0.25X LOCAL MANAGEMENT DATA SPEED SPEED State Status No GPS Synchronization Operational (Strong Signal) Normal Flash* Non-Operational (Weak Signal) Slave mode Master Master mode RF Off Short Flash* Syncing Link Normal Flash*...
  • Page 7 Hardware Overview State Status Displays the received signal Local strength in dBm of the local airFiber radio. Overload Fast Flash Overload Condition (reserved) – – 256QAM MIMO 64QAM MIMO 16QAM MIMO Long Flash* QPSK MIMO 4x to 0.25x Normal Flash* 1x QPSK xRT ™...

  • Page 8: Installation Requirements

    airFiber® AF-5/AF-5U Quick Start Guide Installation Requirements Pre-Assembly Tool • 13 mm wrench Pole-Mounting Tool • 17 mm wrench Other Requirements • Clear line of sight between airFiber radios • Clear view of the sky for proper GPS operation • Vertical mounting orientation •...

  • Page 9: Installation Overview

    Installation Overview Installation Overview We recommend that you configure your paired airFiber radios before mounting. Below is an overview of the installation with specific details in the following instructions: • Connect Power over Ethernet to the Data port, and connect an Ethernet cable between your computer and the Management port.
  • Page 10 airFiber® AF-5/AF-5U Quick Start Guide 2. Connect an Ethernet cable to the Data port. OVERLOAD MASTER LINK REMOTE RESET 4X to 0.25X LOCAL MANAGEMENT DATA SPEED SPEED 3. Connect the other end of the Ethernet cable from the Data port to the Ethernet port labeled POE on the GigE PoE Adapter. 4.

  • Page 11: Airfiber Configuration

    airFiber Configuration airFiber Configuration The instructions in this section explain how to access the airFiber Configuration Interface and configure the following settings: Wireless Mode • Configure one airFiber radio as the Master and the other as the Slave. • Duplex The airFiber radio supports both half-duplex and full-duplex operation.
  • Page 12 airFiber® AF-5/AF-5U Quick Start Guide 1. Connect an Ethernet cable from your computer to the Management port on the airFiber radio. OVERLOAD MASTER LINK REMOTE RESET 4X to 0.25X LOCAL MANAGEMENT DATA SPEED SPEED 2. Configure the Ethernet adapter on your computer with a static IP address on the 192.168.1.x subnet.
  • Page 13 airFiber Configuration 5. The Main tab will appear. Click the Tools drop-down and select Link Calculator. This tool will guide you on how to best minimize bandwidth and power/interference issues. Note: If you do not see the Link Calculator, then upgrade the firmware on your airFiber radios.
  • Page 14 airFiber® AF-5/AF-5U Quick Start Guide 9. Configure the Wireless Security: a. Select the AES Key Type, HEX or ASCII. b. For the Key field: Enter 16 bytes (eight, 16-bit HEX values: 0-9, A-F, or a-f ). You can omit zeroes and use colons, similar to the IPv6 format.

  • Page 15: Hardware Installation

    Hardware Installation Hardware Installation The mounting hardware of the airFiber radio can be pre-assembled before pole-mounting. Mounting Hardware Pre-Assembly 1. Insert two M10x150 Carriage Bolts into the Lower Mount Bracket. 2. Insert two M10x150 Carriage Bolts into the Upper Mount Bracket with Elevation Rod.
  • Page 16 airFiber® AF-5/AF-5U Quick Start Guide 3. Attach the Lower Mount Bracket to the I-Bracket using two M8x14 Serrated Flange Bolts. Ensure that the slots face up and securely tighten the bolts. Proper slot orientation...
  • Page 17 Hardware Installation 4. Attach the Upper Mount Bracket with Elevation Rod to the I-Bracket using two M8x14 Serrated Flange Bolts. Note: Ensure that the orientation of the Upper Mount Bracket matches the illustration below, with the Elevation Rod on the correct side.
  • Page 18 airFiber® AF-5/AF-5U Quick Start Guide 5. Attach the Pole Clamps to the Mount Brackets. a. Slide the slotted hole of each Pole Clamp over one upper and one lower M10x150 Carriage Bolt. b. Place one M10 Serrated Flange Nut on each M10x150 Carriage Bolt.
  • Page 19 Hardware Installation 6. Attach the Azimuth Support Brackets together. a. Insert the two M10x100 Carriage Bolts into the Azimuth Support Bracket that has two slotted holes. b. Slide the slotted hole of the other Azimuth Support Bracket over one M10x100 Carriage Bolt. c.

  • Page 20: Pole Mounting

    airFiber® AF-5/AF-5U Quick Start Guide Pole-Mounting 1. Attach the Azimuth Support Brackets to the pole just beneath the area where the airFiber radio will be attached. Note: The mounting assembly can accommodate a Ø 38.1 - 101.6 mm (1.5" - 4.0") pole. a.
  • Page 21 Hardware Installation 2. Attach the mounting assembly to a pole. a. Orient the mounting assembly around the pole so it is aimed in the direction of the other airFiber radio. b. Slide the open slot of each Pole Clamp over the corresponding M10x150 Carriage Bolt.
  • Page 22 airFiber® AF-5/AF-5U Quick Start Guide 3. Lift the airFiber radio and align the two lower Pre-Installed M10x25 Flanged Bolts with the slots on the Lower Mount Bracket. Seat the bolts in the slots.
  • Page 23 Hardware Installation 4. Align the two upper Pre-Installed M10x25 Flanged Bolts of the airFiber radio next to the slots on the Upper Mount Bracket. Lift the airFiber radio and seat the bolts in the slots.
  • Page 24 airFiber® AF-5/AF-5U Quick Start Guide 5. Attach a ground wire: a. Remove the nut from the Grounding Point. b. Attach a ground wire (min. 8 AWG or 10 mm ) to the lug and replace the nut to secure the wire. c.

  • Page 25: Connecting Ethernet

    Connecting Ethernet Connecting Ethernet 1. Push the button and slide the port cover down to access cable ports. (The port cover cannot be completely removed.) 2. Connect the Data/PoE Ethernet cable: a. Feed an outdoor, shielded CAT6 cable up through the rightmost cable feed slot on the bottom of the port cover.
  • Page 26 airFiber® AF-5/AF-5U Quick Start Guide 3. Connect the other end of the Ethernet cable from the Data port to the Ethernet port labeled POE on the GigE PoE Adapter. 4. Connect an Ethernet cable from your network to the Ethernet port labeled LAN on the GigE PoE Adapter.
  • Page 27 Connecting Ethernet Below is a diagram of a finished installation with recommended surge protectors installed. Ground to Pole, Tower, or Grounding Block: Max. 1 m from Ground Bonding Point Outdoor GigE PoE Surge Protector Outdoor GigE PoE Surge Protector GigE PoE Adapter Power Source...
  • Page 28 airFiber® AF-5/AF-5U Quick Start Guide Alignment Tips • To accurately align the airFiber radios for best performance, you MUST align only one end of the link at a time. • For more convenient alignment, you may consider using long-range scopes (not included) temporarily attached to your airFiber radios.

  • Page 29: Establishing A Link

    Alignment Establishing a Link Adjust the positions of the Master and the Slave to establish a link. Note: The Master must be aimed first at the Slave because the Slave does not transmit any RF signal until it detects transmissions from the Master. 1.
  • Page 30 airFiber® AF-5/AF-5U Quick Start Guide Master Visually aim the Master at the Slave. To adjust the Master's position: a. Rotate the airFiber radio on the pole to align the azimuth. b. Use the hex nut on the Elevation Rod to adjust the elevation. Note: Do NOT make simultaneous adjustments on the Master and Slave.
  • Page 31 Alignment Slave Aim the Slave at the Master to achieve the strongest signal level on the Remote LED Display of the Slave. Note: Values on the LED Displays are displayed in negative (-) dBm. For example, 67 represents a received signal level of -67 dBm.

  • Page 32: Installer Compliance Responsibility

    airFiber® AF-5/AF-5U Quick Start Guide There are three methods for determining the received signal level: • LED Displays (described above) • airFiber Configuration Interface (webpage) • Audio tone (optional equipment required) Refer to the airFiber AF-5/AF-5U User Guide for instructions on the airFiber Configuration Interface and audio tone methods.

  • Page 33: Specifications

    Specifications Specifications airFiber AF-5/AF-5U Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 in) Weight Mount Not Included 11.5 kg (25.35 lb) Mount Included 16 kg (35.27 lb) Operating Frequency AF-5 FCC 15.247, 15.407, IC RSS 210 5470 - 5600 MHz, 5650 - 5850 MHz ETSI EN 301 893, EN 302 502 5470 - 5875 MHz...
  • Page 34 airFiber® AF-5/AF-5U Quick Start Guide Receive Sensitivity Spatial Sensitivity Sensitivity Modulation Streams (10 MHz) (20 MHz) Capacity* Capacity* 256QAM -70 dBm -67 dBm 1024 Mbps 512 Mbps 64QAM -77 dBm -74 dBm 768 Mbps 384 Mbps 16QAM -84 dBm -81 dBm 512 Mbps 256 Mbps MIMO...

  • Page 35: Safety Notices

    Safety Notices Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

  • Page 36: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...

  • Page 37: Limitation Of Liability

    BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, Data LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.

  • Page 38: Industry Canada

    airFiber® AF-5/AF-5U Quick Start Guide Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 39: Rf Exposure Warning

    Compliance RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 126 cm (AF-5) or 123 cm (AF-5U) from all persons and must not be located or operating in conjunction with any other antenna or transmitter.
  • Page 40 airFiber® AF-5/AF-5U Quick Start Guide Deutsch Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.

  • Page 41: Declaration Of Conformity

    Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p [Czech] íslu n mi ustanoveními sm rnice 1999/5/ES.
  • Page 42 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
  • Page 44 © 2013-2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
