Ubiquiti UniFi CLOUD KEY UC-CK Manual

Introduction

Package Contents

System Requirement

Web Browser: Google Chrome (Other browsers may have limited functionality.)

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional installer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.

Network Topology Requirement

A DHCP-enabled network (for the UniFi Cloud Key to obtain an IP address)

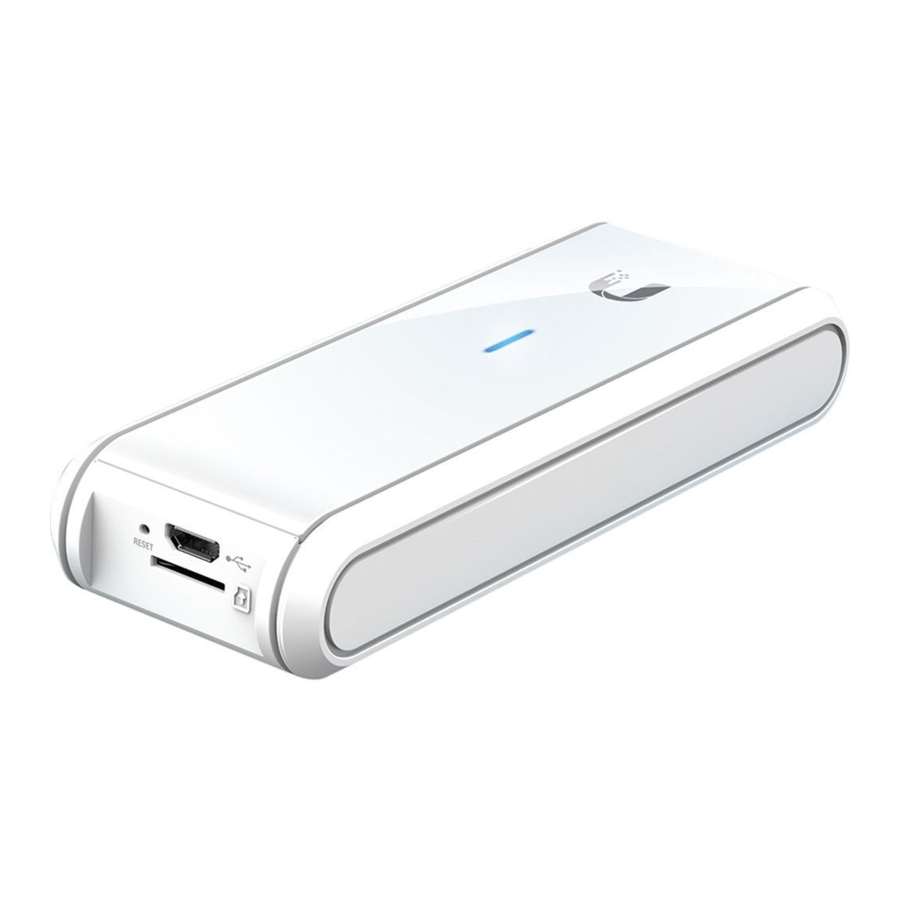

Hardware Overview

Front Panel LED

Top Panel

Ethernet This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by an 802.3af PoE switch, such as the Ubiquiti Networks UniFi Switch.

Bottom Panel

Reset The Reset button serves two functions:

• Restart Press and release the Reset button quickly.
• Restore to Factory Default Settings Press and hold the Reset button for more than five seconds.

USB-C Optional power source (5V, minimum 1A) if PoE is not available.
microSD Reserved for future use.

Side Panel

Shutdown Press the Shutdown button to initiate a graceful shutdown. All services will be shut down and the CPU will remain active.

Hardware Installation

1. Connect the Ethernet Cable to the Ethernet port.

2. Connect the other end of the Ethernet Cable to a port on a network switch, such as a UniFi Switch.


Powering the Unit

Use an 802.3af-compliant switch, such as a UniFi Switch, or a USB power source (not included).

UniFi Switch

The UniFi Cloud Key can be powered by a UniFi PoE Switch or other 802.3af-compliant switch.

USB Power Source

Connect the USB cable (not included) from the UniFi Cloud Key directly to a USB power source (5V, minimum 1A).

Software Installation

The UniFi Controller software is pre-installed on the UniFi Cloud Key. Use one of the following methods to launch the software:

• If you are using Chrome, go to the Chrome Instructions section (recommended).
• If you are using a different web browser, go to the Instructions for Other Web Browsers section.

Chrome Instructions

1. Ensure that your host system is on the same Layer-2 network as the UniFi Cloud Key.
2. Launch the Chrome web browser and type https://unifi.ubnt.com in the address field. Press enter (PC) or return (Mac).

3. Enter the username and password for your UBNT account. Click Sign In.

4. Click Find Cloud Key.

5. If the Ubiquiti Device Discovery Tool is already installed, proceed to step 7.
   If the tool is not installed, you will be prompted to add it. Proceed to step 6.
6. To install the tool:
   1. Click Install.

   2. Click Add app to confirm.

7. The Ubiquiti Device Discovery Tool will search for the UniFi Cloud Key. Select it to continue.

8. Configure the UniFi Controller:
   1. Select the appropriate country.
   2. Select the appropriate time zone.
   3. Enter an admin name in the Admin Name field and a password in the Password field to use when accessing the management interface.
   4. Confirm your password in the Confirm Password field.
   5. Keep the IP address or enter a hostname in the Controller Hostname field.
   6. If you have changed the default username or password of the UniFi Cloud Key, then you must set up login credentials. Select Use non-default SSH credentials. Enter a username in the SSH Username field, and enter a password in the SSH Password field.
   7. Click Submit to save your changes.

9. Wait for the UniFi Controller to be adopted, and then select it.

10. Click Launch Site.


The UniFi Controller management interface will appear. You can manage your UniFi devices and view network statistics using the UniFi Controller management interface.

Instructions for Other Web Browsers

1. Ensure that your host system is on the same Layer-2 network as the UniFi Cloud Key.
2. The UniFi Cloud Key is set to DHCP by default, so it will try to automatically obtain an IP address. Assign a specific IP address to the UniFi Cloud Key, or check the DHCP server for its IP address.
   Note: The default fallback IP address of the UniFi Cloud Key is 192.168.1.30.
3. Launch the web browser. In the address field, type https:// followed by the appropriate IP address. Press enter (PC) or return (Mac).

4. Click Manage to run the UniFi Setup Wizard.


Note: You can click Configure to change the settings of the UniFi Cloud Key. The default login is ubnt/ubnt.

5. The UniFi Setup Wizard screen appears. Follow the on-screen instructions.


After the UniFi Setup Wizard is finished, the UniFi Controller management interface will appear. Log in with the Admin Name and Password that you created, and then you can manage your UniFi devices and view network statistics using the UniFi Controller management interface.

Specifications

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.

Do not use this product in location that can be submerged by water.

Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer's label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
