10. 10. 2019

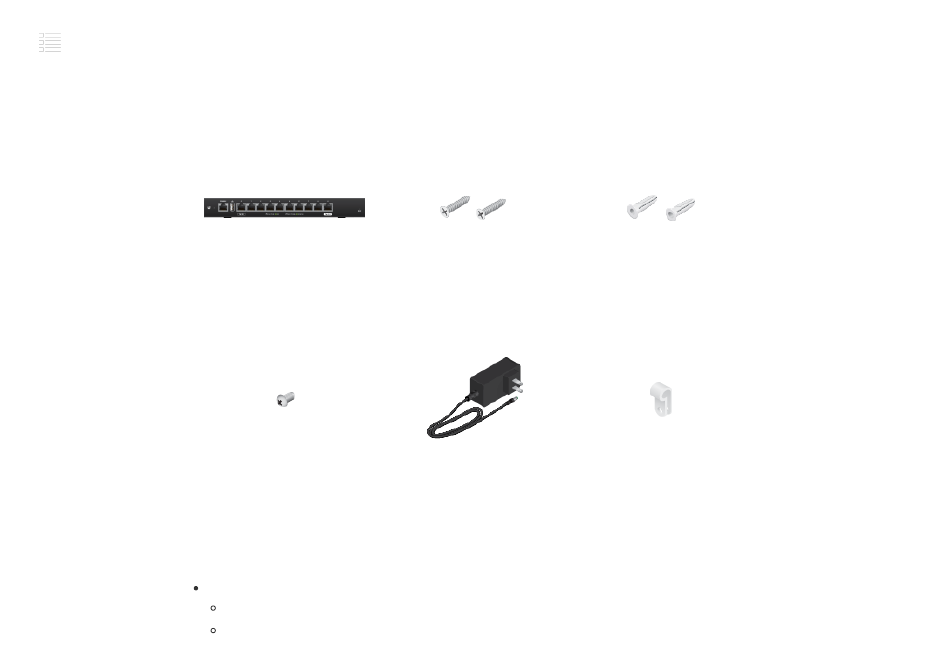

Package Contents
Installation Requirements
https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html
ER-10X Quick Start Guide

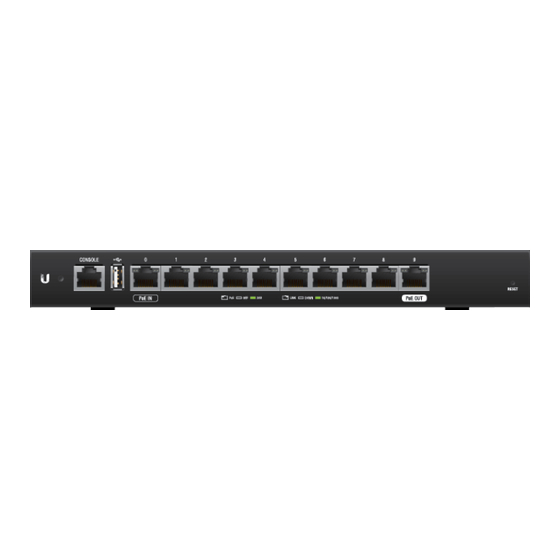

EdgeRouter ER-10X
Ground Screw
Wall-mounting (optional)
Drill with 6 mm drill bit
Phillips screwdriver
ER-10X Quick Start Guide
Wall Mount Screws (Qty. 2)
Ground Screw
Wall Mount Anchors (Qty. 2)
Cable Clip
1/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeRouter ER-10X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti EdgeRouter ER-10X

Summary of Contents for Ubiquiti EdgeRouter ER-10X

  • Page 1 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide Package Contents EdgeRouter ER-10X Wall Mount Screws (Qty. 2) Wall Mount Anchors (Qty. 2) Ground Screw Ground Screw Cable Clip Installation Requirements Wall-mounting (optional) Drill with 6 mm drill bit Phillips screwdriver https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html...

  • Page 2: Hardware Overview

    We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the EdgeRouter itself should be housed inside a protective enclosure.
  • Page 3 ER-10X Quick Start Guide ER-10X Quick Start Guide System LED Flashing White Bootup in Progress Ready for Use White Not Connected to Ubiquiti® Network Management System (UNMS™) Ready for Use Blue Connected to UNMS Ready for Use Steady Blue with...
  • Page 4 10. 10. 2019 ER-10X Quick Start Guide No PoE ER-10X Quick Start Guide Green 24V Passive PoE Input RJ45 Speed/Link/Activity LED (Ports 0 - 9) No Link Link Established Green Flashing Indicates Activity RJ45 PoE LED (Port 9) No PoE Green 24V 2-Pair Passive PoE Output Console...

  • Page 5: Hardware Installation

    10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide Reset Button Click here to learn how to reset an EdgeRouter to factory defaults. Power Connect the included Power Adapter to the Power port. Grounding Point Ground bonding point for an optional ground wire. Hardware Installation Wall Mounting https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html...
  • Page 6 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 6/22...
  • Page 7 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 7/22...
  • Page 8 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 8/22...
  • Page 9 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide Grounding the EdgeRouter (Recommended) The Power Adapter grounds the device; however, you can add optional ESD grounding for enhanced ESD protection (ground wire not included). https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 9/22...
  • Page 10 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide Optional https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 10/22...

  • Page 11: Connecting Power

    10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide Connecting Power https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 11/22...
  • Page 12 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide Accessing the EdgeOS Configuration Interface The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a static IP address of 192.168.1.1.
  • Page 13 3. Launch your web browser. Enter the appropriate IP address in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.

  • Page 14: Static Ip Address

    10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which is available at ui.com/download/edgemax For more information on PoE configuration, refer to “Configuring PoE Settings”.
  • Page 15 3. Launch your web browser. Type https://192.168.1.1 in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 16 10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which is available at ui.com/download/edgemax For more information on PoE configuration, refer to “Configuring PoE Settings”.
  • Page 17 10. 10. 2019 ER-10X Quick Start Guide passive PoE and the supplied voltage. ER-10X Quick Start Guide 1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to configure. 2. The Interface Configuration window will appear. Select the appropriate PoE setting, and click Save.

  • Page 18: Specifications

    10. 10. 2019 ER-10X Quick Start Guide ER-10X Quick Start Guide For detailed instructions on configuring other features, please refer to the EdgeOS User Guide. The User Guide is available at ui.com/download/edgemax Specifications ER-10X Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22") Weight 600 g (1.32 lb)

  • Page 19: Safety Notices

    10. 10. 2019 ER-10X Quick Start Guide ER-10X ER-10X Quick Start Guide Processor MIPS 1004Kc 880 MHz Dual-Core System Memory 512 MB DDR3 On-Board Flash Storage 512 MB NAND Operating Temperature -10 to 45° C (14 to 113° F) Operating Humidity 10 - 90% Noncondensing ESD/EMP Protection Air: ±...

  • Page 20: Electrical Safety Information

    10. 10. 2019 ER-10X Quick Start Guide mm of clearance next to the ventilation holes for adequate airflow. ER-10X Quick Start Guide WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
  • Page 21 10. 10. 2019 ER-10X Quick Start Guide This device complies with Part 15 of the FCC Rules. Operation is subject to the following two ER-10X Quick Start Guide conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 22: Declaration Of Conformity

    10. 10. 2019 ER-10X Quick Start Guide Declaration of Conformity ER-10X Quick Start Guide Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/ER-10X/ER-10X_EN.html 22/22...
