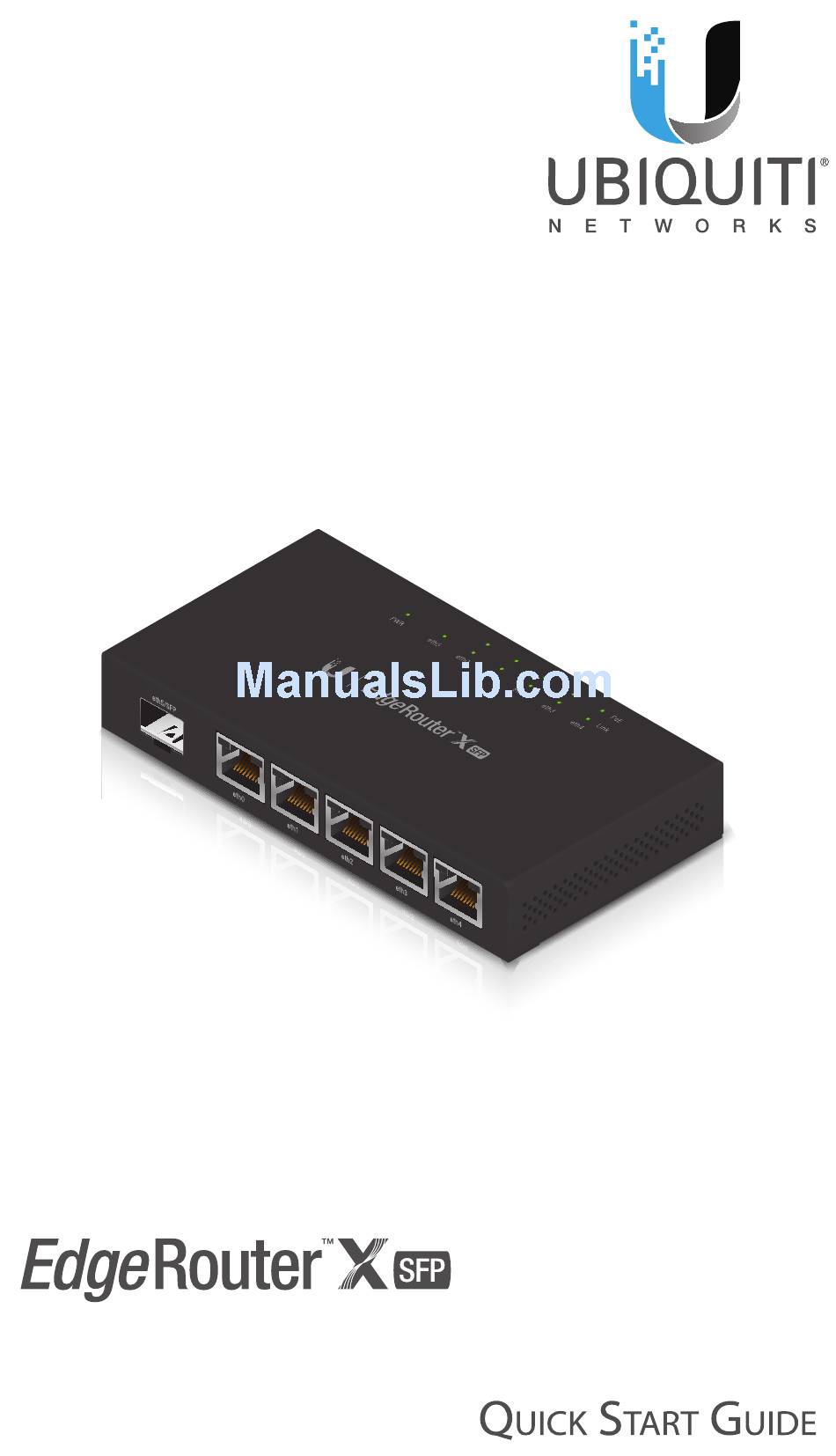

- Page 1 Advanced Gigabit Router with PoE and SFP Model: ER-X-SFP...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeRouter X SFP. This Quick Start Guide is designed to guide ™ you through installation and also includes warranty terms. Package Contents EdgeRouter X SFP Power Adapter (24V, 2.5A) Advanced Gigabit Router... -
Page 3: Installation Requirements
Networks. For more details, visit www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter X SFP to rain or moisture. Note: Although the cabling can be located outdoors, the EdgeRouter X SFP itself should be housed inside a protective enclosure. -
Page 4: Top Panel
Top Panel Power Link/Act State Status Power Off Status Green Power On No Link Link/Act 100/1000 Mbps (1 Gbps) Link Green Flashing Indicates Activity No PoE Green 24V Passive No Link Link/Act 10/100/1000 Mbps Link Green Flashing Indicates Activity... - Page 5 There are two methods to reset the EdgeRouter X SFP to factory defaults: Runtime Reset (Recommended) The EdgeRouter X SFP should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the eth4 Link LED starts flashing and then becomes solidly lit.
-
Page 6: Hardware Installation
Hardware Installation Place the EdgeRouter X SFP on a flat, horizontal surface or mount it on a wall (mounting screws not included). WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. -
Page 7: Connecting Ethernet
Connecting Ethernet 1. Connect an Ethernet cable from your computer or host system to the port labeled eth0 on the EdgeRouter X SFP. Note: PoE is disabled by default. 2. Connect Ethernet cables from the Ethernet ports of your devices to the rest of the ports in this range: eth1‑eth4. - Page 8 Using the SFP Port (Optional) To use the eth5/SFP port: 1. Remove the protective plug covering the eth5/SFP port. 2. Plug a fiber SFP module into the eth5/SFP port. 3. Connect a fiber optic cable to the fiber SFP module. Then connect the other end of the cable to another fiber device.
-
Page 9: Accessing The Configuration Interface
Accessing the Configuration Interface Note: Ensure that your host system is connected to the eth0 port of the EdgeRouter X SFP. 1. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 2. Launch your web browser. Type https://192.168.1.1 in the address field. - Page 10 Configuring PoE Settings WARNING: Before activating 24V passive PoE, ensure that the connected device supports PoE and the supplied voltage. 1. On the Dashboard screen, go to Actions > PoE for the interface you want to configure. 2. Select 24V from the PoE drop-down menu. 3.
-
Page 11: Specifications
Specifications EdgeRouter X SFP Dimensions 142 x 75 x 23 mm (5.59 x 2.95 x 0.91") Weight 215 g (7.58 oz) Max. Power Consumption 50W @ 24V Max. Total PoE Output Passive 24V (Pins 4, 5+; 7, 8-) PoE Output 24VDC, 2.5A Power Adapter (Included) -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 13: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 14: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. -
Page 15: Industry Canada
Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. -
Page 16: Australia And New Zealand
