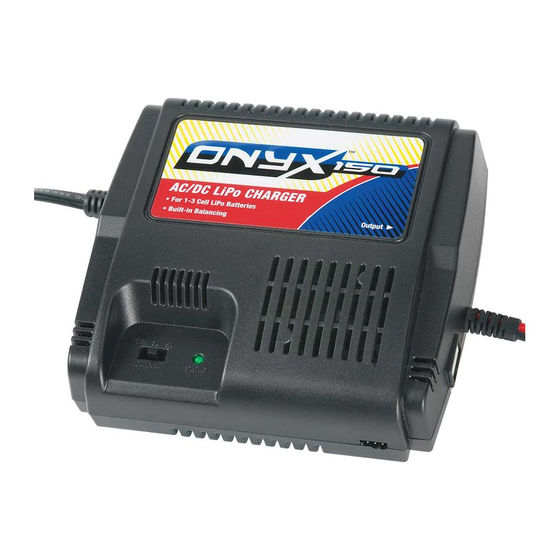

Duratrax Onyx 150 Instruction Manual

AC/DC LIPO CHARGER
The Onyx 150 AC/DC LiPo balancing charger is the perfect entry-level LiPo charger for modelers using up to 3S LiPo
batteries. Inexpensive and very easy to operate, the Onyx 150 utilizes the CC/CV charge method, with voltages customized
for LiPo batteries. Capable of operating from 110V AC or 12V DC input sources, this tiny, lightweight charger is perfect for
use at home or in the fi eld. Selectable charge currents range from 1.5A to 5A and a built-in balancing function ensures all
cells are charged to optimum voltage every time.
It is strongly recommended to read this manual completely before use! Damage resulting
from misuse or modifi cation will void your warranty.
WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER
treat lithium-based batteries in the same manner as other battery types. NEVER leave
lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries
in a fi reproof location! Failure to follow all care and handling instructions contained in
this manual could result in quick, severe, permanent damage to the batteries and all
surroundings!! Follow all safety precautions when using such batteries, as listed on
page 3 of this manual!

SPECIFICATIONS

AC Input:
DC Input:
Output Power:
Battery Types:
Battery Capacity Range:
Fast Charge Start:
Fast Charge Current:
Fast Charge Termination:
Fast Charge Safety Timer:
Controls:
Display Type:
110V AC 60Hz, U.S. plug
11-15V DC, detachable lead
with alligator clips
AC: 50W DC: 50W
1-3S LiPo
100 ~ 7500mAh
Auto start at hook up
1.5A, 3.5A, 5.0A*
CC/CV (Based on nominal
voltage of 3.7V/cell)
90 Minutes
Auto-start, switchable current
selector
3-color LED
™
Output Connections:
Balancing Connector:
Balancing Accuracy:
Max. Node Current:
Protective Devices:
Dimensions:
Weight:
*Note: Maximum charge current for a 3S pack will be ~4.6A.
INSTRUCTION
MANUAL
Attached lead with Deans
®
Ultra Plug male connector &
radio charge jack
®
ElectriFly style 3S (2S
adapter included)
5mV per cell
200mA
Solid-state reverse polarity &
current overload
4.1 x 3.5 x 1.1 in.
(104 x 90 x 29mm)
16.6 oz (470 g)
DTXP4195
®
®
1
