It is strongly recommended to completely read this manual before use! Damage resulting from misuse
or modifi cation will void your warranty.
SPECIFICATIONS .......................................................... 1
SPECIAL FEATURES ..................................................... 2
IMPORTANT PRECAUTIONS ........................................ 2
GLOSSARY OF TERMS................................................. 2
INPUT POWER .............................................................. 3
CONTROLS & CONNECTIONS ..................................... 3
GETTING STARTED ...................................................... 4
AC input:
DC input:
Battery types:
Battery capacity range:
Fast charge current:
Fast charge termination:
Fast charge safety timer:
Peak sensitivity:
Auto-trickle current:
Input control:
Display type:
Audible tones:
*Output connections:
Protective devices:
Case size:
Weight:
* Adapter - Standard to Deans
* Adapter - Standard to Vendetta, MiniQuake, RS4 Battery available separately (DTXC2210)
110V AC 60Hz
11 to 15V DC, built-in lead with alligator clips
4 to 7 NiCd or NiMH (4.8 to 8.4V)
750 to 7500mAh
1.5A, 3A, 5A linear (40W)
peak detection
90 minutes
8mV
1/20 fast chg setting
pushbutton, slide switch
5 LEDs (four red, one green)
indicate start, stop, errors
built-in lead with standard connector, built-in jack for charging 4 or 5 cell Rx packs
solid-state reverse polarity and current overload
5.74" x 4.60" x 1.61" [146 x 117 x 41mm]
17.0 oz. [484g]
®
®
Ultra
male available separately (GPMM3131)

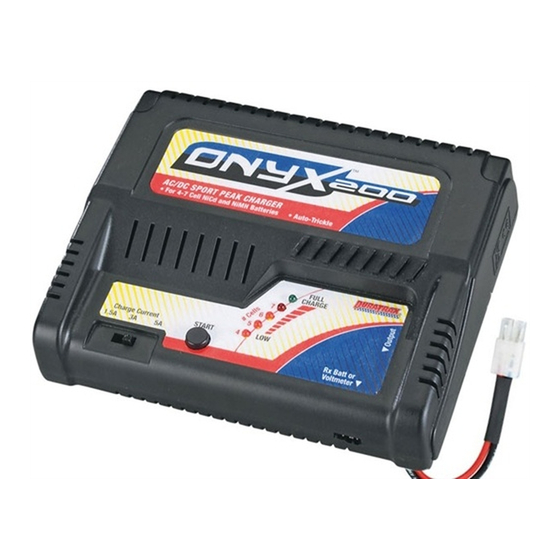

The DuraTrax
of applications! Charge current options of 1.5A, 3A, and
5 amps plus 4 to 7 cell NiCd or NiMH compatibility makes
it great for batteries for 1/18th to 1/8th scale electrics, even
nitro receiver packs. A tiny built-in AC power supply plus
DC input capability is perfect for use at home or at the
track. A unique jack is built-in which is handy for charging
4 to 5 cell nitro Rx batteries.
INDEX
STARTING CHARGE...................................................... 4
TRICKLE CHARGE ........................................................ 5
RESETTING THE CHARGER ........................................ 5

SPECIFICATIONS

®
®
Onyx
™
200 charger is great for a wide variety
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Onyx 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratrax Onyx 200

Summary of Contents for Duratrax Onyx 200

  • Page 1: Specifications

    ® ™ The DuraTrax ® Onyx ™ 200 charger is great for a wide variety of applications! Charge current options of 1.5A, 3A, and 5 amps plus 4 to 7 cell NiCd or NiMH compatibility makes it great for batteries for 1/18th to 1/8th scale electrics, even nitro receiver packs.

  • Page 2: Special Features

    SPECIAL FEATURES • A tiny, lightweight built-in switching AC power supply is great for portability and cramped pit areas, yet can still deliver up to 5 amps charge current! • A DC power lead with alligator clips easily connects to many 12V DC power sources. •...

  • Page 3: Input Power

    INPUT POWER AC Input: For indoor use, this charger includes a built-in switching AC power supply that delivers power by connecting the AC power cord to a common 110V AC outlet. DC Input: This charger can be powered by a portable 12V DC power source for use at the track. On the left side of the charger, connect the DC power cord’s alligator clips directly to the output terminals on the 12V DC power source.

  • Page 4: Getting Started

    DETERMINING BATTERY TYPE & SPECIFICATIONS Always read your NiCd or NiMH battery’s label and/or instruction sheet before use. Check your battery’s label or instruction sheet to determine how many cells it contains or its nominal rated voltage. The chart at right is a quick reference for determining this information.

  • Page 5: Trickle Charge

    A backup safety timer is built into this charger to automatically stop fast charge if peak is not detected in 90 minutes. If you attempted to charge a battery and later found the top and bottom LEDs were fl ashing, this means the 90 minute safety timer stopped charge (not the peak detection circuit).

  • Page 6: Error Indicators & Troubleshooting Guide

    5-YEAR LIMITED WARRANTY – *U.S.A. & CANADA ONLY DuraTrax warrants this product to be free from defects in materials and workmanship for a period of fi ve (5) years from the date of purchase. During that period, DuraTrax will, at its option, repair or replace without service charge any product deemed defective due to those causes.
  • Page 7 DuraTrax Ultimate Tool Set w/Pouch DuraTrax Ultimate tools have hardened steel tips plus a blue-anodized aluminum handle that’s knurled for a no-slip grip. This set has ‘em all – 4 each of metric and SAE hex drivers, 3 each of slotted and Phillips screwdrivers – plus an Ultimate Body Reamer.
  • Page 8 DuraTrax Ball End Tool Simplify car ball end adjustments! Machined from anodized aluminum, this ball end tool has a slotted end that fi ts most open- style ball ends. The enlarged, knurled handle makes installation and adjustments seem almost effortless. DTXR1125...
