AC/DC LIPO CHARGER

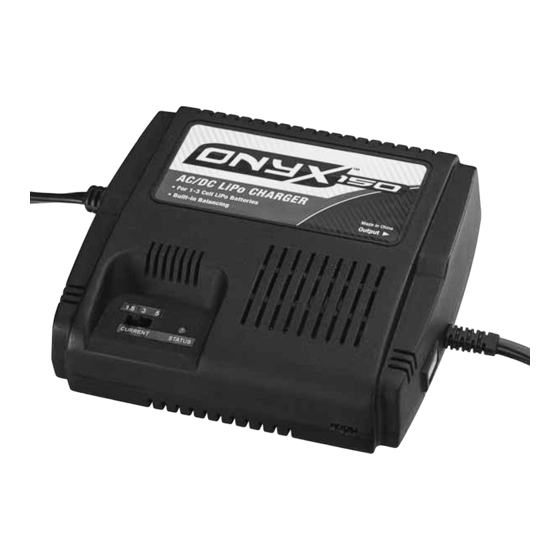

The Onyx 150 AC/DC LiPo balancing charger is the perfect entry-level LiPo charger for modelers using up to 3S LiPo
batteries. Inexpensive and very easy to operate, the Onyx 150 utilizes the CC/CV charge method, with voltages customized
for LiPo batteries. Capable of operating from 110V AC or 12V DC input sources, this tiny, lightweight charger is perfect for
use at home or in the field. Selectable charge currents range from 1.5A to 5A and a built-in balancing function ensures all
cells are charged to optimum voltage every time.
It is strongly recommended to read this manual completely before use! Damage resulting
from misuse or modification will void your warranty.
WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER
treat lithium-based batteries in the same manner as other battery types. NEVER leave
lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries
in a fireproof location! Failure to follow all care and handling instructions contained in
this manual could result in quick, severe, permanent damage to the batteries and all
surroundings!! Follow all safety precautions when using such batteries, as listed on
page 3 of this manual!
SPECIFICATIONS
AC Input:
DC Input:
Output Power:
Battery Types:
Battery Capacity Range:
Fast Charge Start:
Fast Charge Current:
Fast Charge Termination:
Fast Charge Safety Timer:
Controls:
Display Type:
110V AC 60Hz, U.S. plug
11-15V DC, detachable lead
with alligator clips
AC: 50W DC: 50W
1-3S LiPo
100 ~ 7500mAh
Auto start at hook up
1.5A, 3.5A, 5.0A*
CC/CV (Based on nominal
voltage of 3.7V/cell)
90 Minutes
Auto-start, switchable current
selector
3-color LED
™
Output Connections:
Balancing Connector:
Balancing Accuracy:
Max. Node Current:
Protective Devices:
Dimensions:
Weight:
*Note: Maximum charge current for a 3S pack will be ~4.6A.
INSTRUCTION
MANUAL
Attached lead with Deans
®
Ultra Plug
male connector &
radio charge jack
ElectriFly
®
style 3S (2S
adapter included)
5mV per cell
200mA
Solid-state reverse polarity &
current overload
4.1 x 3.5 x 1.1 in.
(104 x 90 x 29mm)
16.6 oz (470 g)
DTXP4196
®
®
1
Advertisement
Table of Contents
Related Manuals for Duratrax DTXP4196
Summary of Contents for Duratrax DTXP4196
- Page 1 DTXP4196 ™ AC/DC LIPO CHARGER INSTRUCTION MANUAL ® The Onyx 150 AC/DC LiPo balancing charger is the perfect entry-level LiPo charger for modelers using up to 3S LiPo batteries. Inexpensive and very easy to operate, the Onyx 150 utilizes the CC/CV charge method, with voltages customized for LiPo batteries.
-
Page 2: Special Features
SPECIAL FEATURES Built-in balancing for 1-3S LiPo. 1.5A, 3A, 5A selectable charge rates. Includes built-in radio battery jack for receiver or transmitter batteries. ® ® Deans male Ultra Plug installed on output. Includes Deans ® female to Traxxas ® male adapter. Detachable DC input cord. -
Page 3: Controls And Connections
CONTROLS AND CONNECTIONS 110V AC input 12V DC input Current selection switch Status LED Radio battery jack 2S adapter Balancing jack Output lead ® ® Deans to Traxxas adapter WARNING! Do not attempt to charge one battery through the main output lead and another through the jack on the front edge of the charger at the same time! Doing so might permanently damage the charger. -
Page 4: Starting Charge
STARTING CHARGE 1. Connect the charger to either AC or DC input power. Charge Current Recommendations 2. The charger will beep and the orange LED will flash once. The green LED will flash very slowly (once every four seconds) as a Battery’s Charge reminder that power is applied to the charger, and it’s now ready... - Page 5 If there is damage stemming from these causes within the stated warranty period, Duratrax will, at its option, repair or replace it for a service charge not greater than 50% of its then current retail list price.
- Page 6 © 2012 Hobbico Inc. All rights reserved. Made in China DTXP4196...
