AC/DC ADVANCED BALANCING CHARGER

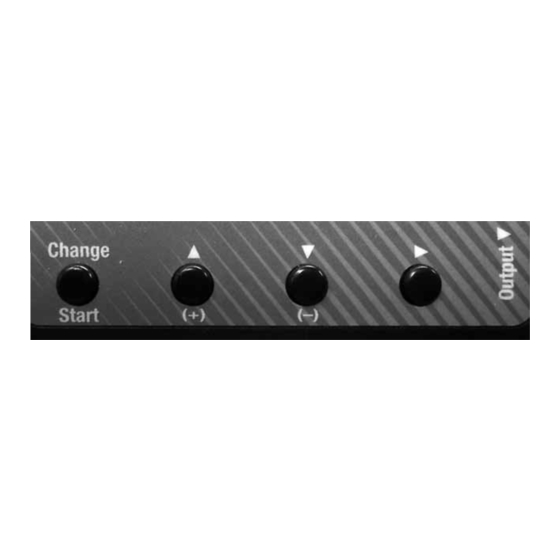

1. START: Connect the charger to power. The CHARGE START screen will appear, with the active battery memory number shown in the
top right corner (>0<). All settings for this memory will automatically scroll across the bottom of this screen or can be scrolled through using
the
and
buttons. If these settings are acceptable for the battery to be charged, press and hold START and charge will begin.
2. SELECT A MEMORY: All ten memory profi les are pre-programmed with charge settings as
shown in the chart. Press CHANGE then
to confi rm. Press and hold START and charging will begin.
3. MANUAL SETUP: Follow the steps below to fi nd the BATTERY SETUP screen to adjust the
charger settings to match a specifi c battery.
5. START CHARGE: After all settings are made, press
CHARGE START screen shows. Press and hold START for 2 seconds
and fast charge will begin.
Quick Reference Guide to Programming
NOTE:
the provided manual in its entirety before use, paying particular attention to all safety warnings!!
or
to fi nd the correct profi le. Press CHANGE again
PRESS
BATTERY TYPE: Press CHANGE,
then
to find the proper battery type.
Press CHANGE to confirm.
PRESS
CELL[02]: Press CHANGE, then
find the proper number of cells in the
battery (confirmed by the voltage shown
at the bottom of the screen). Press
CHANGE to confirm.
PRESS
CAPACITY: Press CHANGE, then
to find the rated capacity value of the
battery. Press CHANGE to confirm.
PRESS
CURRENT: Press CHANGE, then
to
find
the
desired
current. Press
CHANGE to confirm.
PRESS
S_TIMER: Press CHANGE, then
find the desired backup safety timeout for
charge. Press CHANGE to confirm.
until the
This guide does not replace the entire instruction manual as supplied with this charger. Read
MEMORY NO.
Capacity (mAh)
Safety Time (minutes)
Delta Peak (mV/C)
Trickle Current (mA)
PRESS
PRESS
MELODY: Press CHANGE, then
change the melody type. Press CHANGE
to confirm.
to
PRESS
BEEP OFF: Press CHANGE, then
to turn ON or OFF. Press CHANGE to
confirm.
to
WARNING!! NEVER LEAVE A BATTERY UNATTENDED WHILE BEING CHARGED! REFER
TO THE PROVIDED INSTRUCTION MANUAL FOR FULL DETAILS.
0
1
2
3

Battery Type

LiPo
LiPo
LiPo
LiPo
Cell Count
2
2
2
3
4000
5000
5700
5000

Current

4.0A
5.0A
5.7A
5.0A
120
120
120
120
PRESS
INPUT VOLTAGE: Shows the voltage
at the charger's input.
to
OUTPUT
voltage at the charger's output.
PEAK VOLTAGE: Shows the maximum
voltage measured on the battery during
charge.
CHG CAPACITY: Shows how much
energy was delivered to the battery during
charge.
CHG TIME: Shows how many minutes
elapsed during the charge process.
4
5
6
7
8
9
LiPo
NiCd
NiMH
NiMH
NiMH
NiMH
3
6
6
6
7
7
6400
1800
3000
5000
3000
5000
6.4A
1.8A
3.0A
5.0A
3.0A
5.0A
120
90
90
90
90
90
10
8
8
8
8
200
250
250
250
250
PRESS
TO
CHARGE
START
SCREEN
PRESS
VOLTAGE:
Shows
the
PRESS
PRESS
PRESS
DTXP4225 QRG
