It is strongly recommended to completely read this manual before use! Damage resulting from misuse
or modifi cation will void your warranty.
SPECIFICATIONS .......................................................... 1
SPECIAL FEATURES ..................................................... 2
IMPORTANT PRECAUTIONS ........................................ 2
GLOSSARY OF TERMS................................................. 2
INPUT POWER .............................................................. 3
CONTROLS & CONNECTIONS ..................................... 3
GETTING STARTED ...................................................... 4
STARTING CHARGE...................................................... 5
CHARGE COMPLETE - TRICKLE CHARGE ................ 5
VIEW DATA SCREENS .................................................. 6
AC input:
DC input:
Protective devices:
Case size:
Weight:
Specifi cations for Each Output
Battery types:
Battery capacity range:
Fast charge current:
Fast charge termination:
Fast charge safety timer:
Peak sensitivity:
Auto-trickle current:
Controls:
Display type:
*Output connections:
Audible tones:
* Adapter - Standard to Deans
* Adapter - Standard to Vendetta, MiniQuake, RS4 Battery available separately (DTXC2210)
110V AC 60Hz
11 to 15V DC, built-in lead with alligator clips
solid-state reverse polarity and current overload
7.95" x 6" x 1.97" [202 x 153 x 50mm]
27.8 oz. [789g]
4 to 8 NiCd or NiMH (4.8 to 9.6V)
750 to 7500mAh
0.8A, 1.5A, 3A, 5A linear (40W)
peak detection
90 minutes
8mV for NiCd, 4mV for NiMH
1/20 fast charge setting
3 push buttons
7-segment custom LCD with blue backlight
built-in lead with standard connector, built-in jack for 4 to 5 cell Rx packs or Tx packs
indicates start, stop, errors
®
®
Ultra
male available separately (GPMM3131)

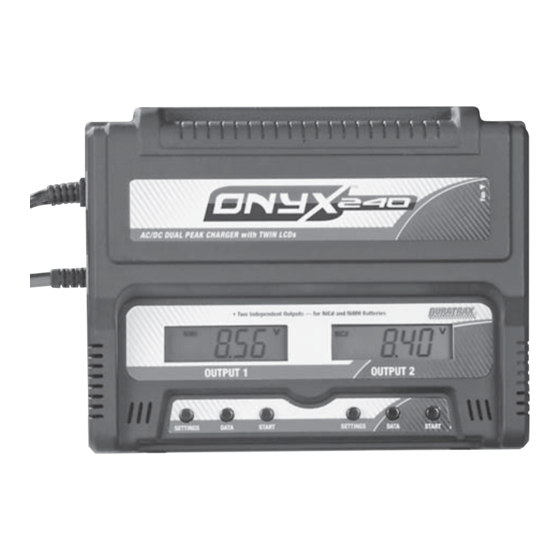

The DuraTrax
one! It's an excellent choice for electric powered models
which use two NiCd or NiMH batteries simultaneously, or
modelers who rotate through multiple batteries while at
the fi eld or the track. Charge current options of 800mA,
1.5A, 3A, and 5 amps - plus 4 to 8 cell NiCd or NiMH
compatibility for each output makes this charger great for
batteries for 1/18th to 1/8th scale electrics, nitro receiver
packs, and transmitter batteries. A tiny AC power supply
is built-in, plus DC input capability and twin LCDs with
blue backlights make this charger easy to transport and
use in any environment.
INDEX
RESETTING THE CHARGER ........................................ 6
CARE & HANDLING OF NiMH BATTERIES .................. 6
SPECIFICATIONS
®
®
™
Onyx
240 charger is two chargers in
™
