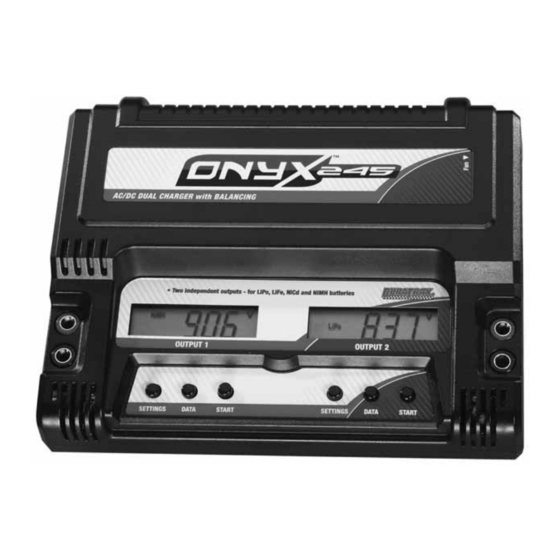

The Onyx 245 charger is two chargers in one! Identical twin outputs make the 245 an excellent choice for models that use
two battery packs or modelers who rotate through multiple batteries at home or at the track. A built-in balancer for each port
optimizes charging of lithium packs, including LiPo and LiFe cells such as LiFeSource
with NiCd and NiMH batteries. AC/DC fl exibility, plus the advanced LCD with backlight, simple menus and controls make
it super-easy for anyone to use anytime, anywhere. Its tremendous fl exibility, small size and weight, yet high power give
racers another advantage on race day!
It is strongly recommended to read this manual completely before use! Damage resulting
from misuse or modifi cation will void your warranty.
WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER
treat lithium-based batteries in the same manner as other battery types. NEVER leave
lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries
in a fi reproof location! Failure to follow all care and handling instructions contained in this
manual could result in quick, severe, permanent damage to the batteries and all surroundings!!
Follow all safety precautions when using such batteries, as listed on page 3 of this manual!
INDEX
Specifi cations and Features . . . . . . . . . . . . . . . . . . . . . . . 2
Glossary of Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Input Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and Connections . . . . . . . . . . . . . . . . . . . . . . . . 3
Battery Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
™
Starting Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Charge Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Care and Handling of Batteries . . . . . . . . . . . . . . . . . . . . 7
Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Error Messages and Troubleshooting . . . . . . . . . . . . . . . . 8
INSTRUCTION
MANUAL
™
brand packs. It's also compatible
DTXP4245
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Onyx 245 and is the answer not in the manual?

Questions and answers

Related Manuals for Duratrax Onyx 245

Summary of Contents for Duratrax Onyx 245

  • Page 1: Table Of Contents

    ® The Onyx 245 charger is two chargers in one! Identical twin outputs make the 245 an excellent choice for models that use two battery packs or modelers who rotate through multiple batteries at home or at the track. A built-in balancer for each port ™...

  • Page 2: Specifi Cations And Features

    SPECIFICATIONS AC Input: 110V AC 60Hz DC Input: 11-15V DC, built in lead with alligator clips Protective Devices: Solid state reverse polarity and current overload Case Size: 7.95 x 6.1 x 1.77” (202 x 156 x 45mm) Weight: 28.2 oz. (801g) SPECIFICATIONS FOR EACH OUTPUT: Battery Types: 4-8 NiCd/NiMH (4.8-9.6V)

  • Page 3: Glossary Of Terms

    ● Do not block the fan or air intake holes, which could cause the charger to overheat. ● Do not attempt to use batteries with more cells or total voltage than listed in the specifi cations. ● Do not overcharge batteries as permanent damage could result. Do not use a charge current rate which exceeds the safe level of the battery.

  • Page 4: Battery Types

    Adapter – Standard to Vendetta, MiniQuake, RS4 Battery DTXC2225 Balancing lead – Banana to 4mm Bullet Adapter 2S LiPo DTXP4158 Onyx 245 Balance Board ElectriFly LiPo w/Cable DTXP4159 Onyx 245 Balance Board FlightPower LiPo w/Cable GPMM3105 Charge lead – banana plugs to BEC connector GPMM3149 Charge lead –...

  • Page 5: Battery Connection

    Such packs SHOULD be charged with a LiPo charger that is capable of balancing, such as the Onyx 245. NON-BALANCED packs are wired so the charger can only detect the voltage of the entire pack (not individual cells), so there is only one charge lead.

  • Page 6: Starting Charge

    STARTING CHARGE 1. Once the proper settings and connections have been made, the battery is ready to be charged. 2. To START CHARGE, press and HOLD the START button for 3 seconds. 3. During charge, the LCD will alternate between the battery voltage and charge current screens so you can quickly determine if charge is progressing correctly.

  • Page 7: Charge Complete

    CHARGE COMPLETE When the charger has determined the battery is full it will automatically stop charge and show “END” on the LCD. Audible tones will sound for about 10 seconds (pressing START while the tones are sounding will turn them off). Information regarding the fi...

  • Page 8: Cooling Fan
