It is strongly recommended to completely read this manual before use! Damage resulting from misuse
or modifi cation will void your warranty.
SPECIFICATIONS .......................................................... 1
SPECIAL FEATURES ..................................................... 2
IMPORTANT PRECAUTIONS ........................................ 2
GLOSSARY OF TERMS................................................. 2
INPUT POWER .............................................................. 3
CONTROLS & CONNECTIONS ..................................... 3
GETTING STARTED ...................................................... 4
ADJUSTABLE SETTINGS .............................................. 4
USER SETUP SCREENS .............................................. 6
VIEW DATA SCREENS .................................................. 6
AC input:
DC input:
Battery types:
Battery capacity range:
Fast charge current:
Fast charge termination:
Fast charge safety timer:
Peak sensitivity:
Trickle charge current:
Controls:
Battery memories:
Display type:
Audible indicators:
*Output connections:
Protective devices:
Case size:
Weight:
* Adapter - Standard to Deans® Ultra® male available separately (GPMM3131)
* Adapter - Standard to Vendetta, MiniQuake, RS4 Battery available separately (DTXC2210)
INDEX
SPECIFICATIONS
110V AC 60Hz
11 to 15V DC, built-in lead with alligator clips
4 to 8 NiCd or NiMH (4.8 to 9.6V)
50 to 9900mAh
0.1 to 5.0A linear, adjustable (40W max.)
peak detection
off - 300 minutes
3 to 20mV adjustable
auto (1/20 fast chg setting), or manual adjust (0 to 250mA)
4 push buttons
5
2 x 8 reversed LCD with backlight
indicates start, stop, errors
built-in lead with standard connector, built-in jack for charging 4 or 5 cell Rx
packs or Tx packs
solid-state reverse polarity and current overload
5.7" x 5.1" x 1.8" [145 x 130 x 45mm]
20.4 oz. [578g]
®
®
™

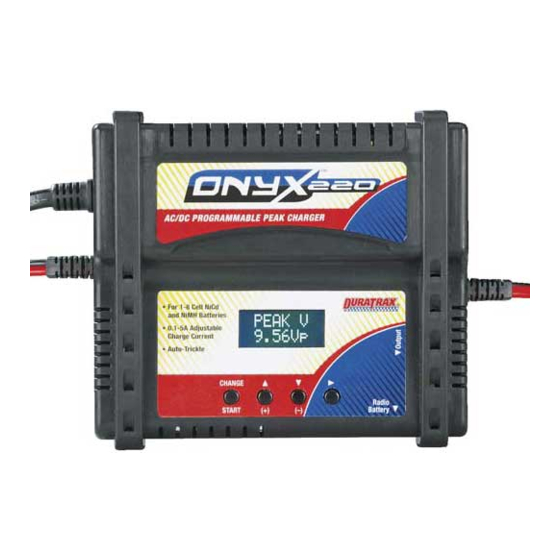

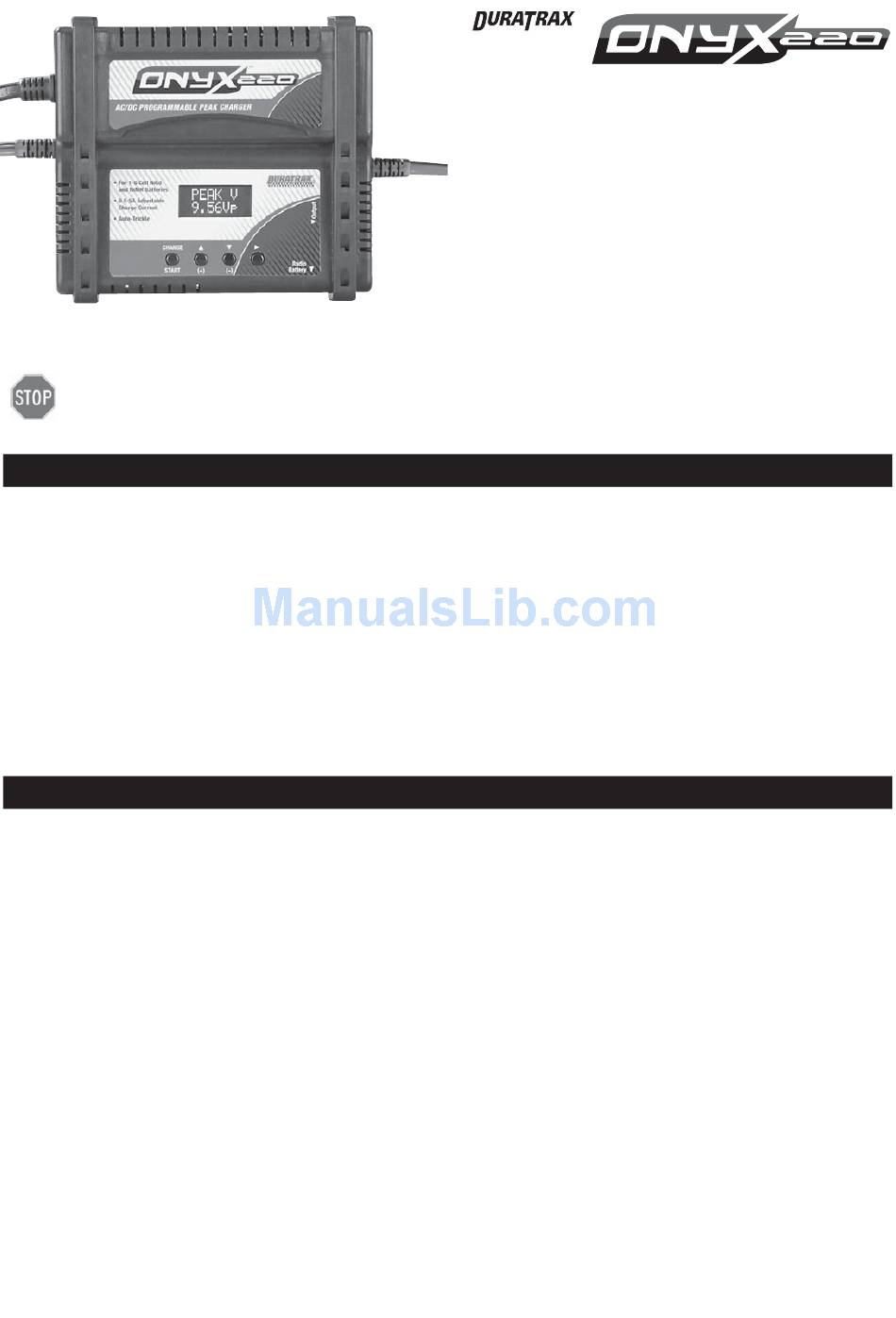

The DuraTrax
Onyx
variety of applications! The 0.1 to 5.0 amp adjustable
current range plus 4 to 8 cell NiCd and NiMH compatibility
makes this charger an excellent choice for applications as
small as 1/32 scale micros to 1/8 scale electrics - even
nitro receiver packs and transmitter packs. The advanced,
reversed LCD with backlight, and simple menus and controls
are very easy to use anytime. The tiny built-in switching AC
power supply makes for super-simple transportation, yet
can still deliver the power for race quality packs. A unique
jack is built-in which is handy for charging 4 to 5 cell nitro
Rx batteries or even transmitter packs. A quick reference
fl owchart is included for easy understanding of all menus.
STARTING CHARGE...................................................... 6
CHARGE COMPLETE - TRICKLE CHARGE ................ 7
CARE & HANDLING OF NiMH BATTERIES .................. 8
BATTERY STORAGE ..............................................................8
™
220 charger is great for a wide
Advertisement
Table of Contents
Related Manuals for Duratrax Onyx 220
Summary of Contents for Duratrax Onyx 220
-
Page 1: Table Of Contents
® ™ ® ™ The DuraTrax Onyx 220 charger is great for a wide variety of applications! The 0.1 to 5.0 amp adjustable current range plus 4 to 8 cell NiCd and NiMH compatibility makes this charger an excellent choice for applications as small as 1/32 scale micros to 1/8 scale electrics –... -
Page 2: Special Features
SPECIAL FEATURES • A tiny built-in switching AC power supply is great for portability and cramped pit areas, yet can still deliver up to 5 amps charge current! • Fully adjustable charge currents and NiCd and NiMH fl exibility for a wide range of applications. •... -
Page 3: Input Power
INPUT POWER AC Input: For indoor use, this charger includes a built-in switching AC power supply that delivers power by connecting the AC power cord to a common 110V AC outlet. DC Input: This charger can be powered by a portable 12V DC power source for use at the track. On the left side of the charger, connect the DC power cord’s alligator clips directly to the output terminals on the 12V DC power source. -
Page 4: Determing Battery Type & Specifications
WARNING! Do NOT attempt to charge one battery through the main output lead, and another through the jack on the front edge of the charger at the same time!! Failure to do so might permanently damage the charger. DETERMINING BATTERY TYPE & SPECIFICATIONS Always read your battery’s label and/or instruction sheet or consult your battery supplier and determine: 1. - Page 5 5. Press to fi nd the peak charge CURRENT setting. Press CHANGE to cause NiCd and MiMH Only the setting to fl ash. Press (+) or (-) to adjust the value. Press CHANGE again Max. Charge Capacity Chart to confi rm the setting. Do not exceed the maximum rated charge current for Battery’s Rated 110% 130%...
-
Page 6: User Setup Screens
USER SETUP SCREENS As shown in the programming fl owchart, while in the START screen press twice to fi nd the USER SETUP screen. Adjusting the charger’s audible tones and melodies is done here. 1. Press to fi nd the MELODY screen. To change, press CHANGE, and then (+) or (-) to select from 5 different tones, or turn this function off. -
Page 7: Charge Complete - Trickle Charge
4. To START CHARGE, press and hold the START button for 3 seconds. The LCD will then rotate through several screens showing different information during the charge process like shown below: Charge CHG Time START... 000:00 CHG cur. 5.0A Cooling fan turns Press and hold START on automatically for 3 seconds to start... -
Page 8: Care & Handling Of Nimh Batteries
CARE & HANDLING OF NiMH BATTERIES • Do not to allow NiMH batteries to overheat! Disconnect overheated batteries from the charger immediately and allow to cool. • Store NiMH packs with some voltage remaining on the cells (refer to battery supplier). •... -
Page 9: 5-Year Limited Warranty - U.s.a. & Canada Only
5-YEAR LIMITED WARRANTY – *U.S.A. & CANADA ONLY DuraTrax warrants this product to be free from defects in materials and workmanship for a period of fi ve (5) years from the date of purchase. During that period, DuraTrax will, at its option, repair or replace without service charge any product deemed defective due to those causes. - Page 10 DuraTrax Ultimate Tool Set w/Pouch DuraTrax Ultimate tools have hardened steel tips plus a blue-anodized aluminum handle that’s knurled for a no-slip grip. This set has ‘em all – 4 each of metric and SAE hex drivers, 3 each of slotted and Phillips screwdrivers – plus an Ultimate Body Reamer.
- Page 11 DuraTrax Ball End Tool Simplify car ball end adjustments! Machined from anodized aluminum, this ball end tool has a slotted end that fi ts most open- style ball ends. The enlarged, knurled handle makes installation and adjustments seem almost effortless. DTXR1125...
- Page 12 ™ DuraTrax Pit Tech Tire Glue Pit Tech Tire glue is specially formulated to create a lasting bond between your wheels and rubber tires. Choose from two formulas: quick-drying Thin and slower-curing Medium. Car and truck drivers shouldn’t leave the pits without it! DTXR2000 –...
