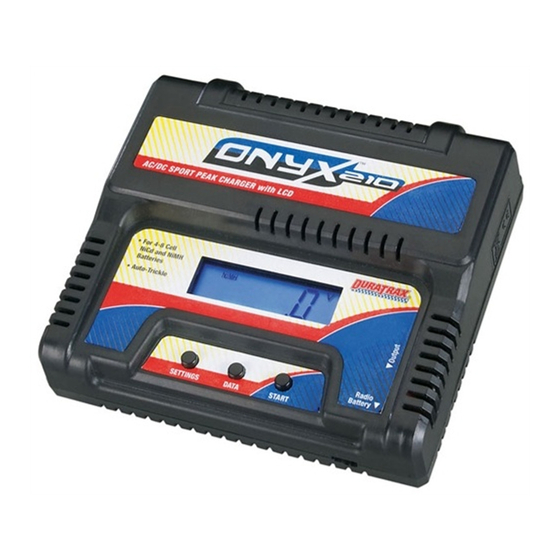

DURATRAX Onyx 210 Peak Charger Manual
http://www.manuallib.com/file/2713227
From ManualLib.com
ManualLib.com collects and classifies the global product
instrunction manuals to help users access anytime and
anywhere, helping users make better use of products.
Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/
This Manual: http://www.manuallib.com/file/2713227

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Onyx 210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratrax Onyx 210

Summary of Contents for Duratrax Onyx 210

  • Page 1 DURATRAX Onyx 210 Peak Charger Manual http://www.manuallib.com/file/2713227 From ManualLib.com ManualLib.com collects and classifies the global product instrunction manuals to help users access anytime and anywhere, helping users make better use of products. Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/ This Manual: http://www.manuallib.com/file/2713227...

  • Page 2: Table Of Contents

    ® ™ ® ™ The DuraTrax Onyx 210 charger is great for a wide variety of applications! Charge current options of 800mA, 1.5A, 3A, and 5 amps, plus 4 to 8 cell NiCd or NiMH compatibility makes this charger great for batteries for 1/18th to 1/8th scale electrics, nitro receiver packs, and transmitter batteries.

  • Page 3: Special Features

    SPECIAL FEATURES • A tiny, lightweight built-in switching AC power supply is great for portability and cramped pit areas, yet can still deliver up to 5 amps charge current! • Selectable charge currents of 800mA, 1.5A, 3A, and 5 amps. •...

  • Page 4: Input Power

    INPUT POWER AC Input: For indoor use, this charger includes a built-in switching AC power supply that delivers power by connecting the AC power cord to a common 110V AC outlet. DC Input: This charger can be powered by a portable 12V DC power source for use at the track. On the left side of the charger, connect the DC power cord’s alligator clips directly to the output terminals on the 12V DC power source.

  • Page 5: Determing Battery Type & Specifications

    WARNING! Do NOT attempt to charge one battery through the main output lead, and another through the jack on the front edge of the charger at the same time!! Failure to do so might permanently damage the charger. DETERMINING BATTERY TYPE & SPECIFICATIONS Always read your battery’s label and/or instruction sheet before use, and determine: 1.

  • Page 6: Starting Charge

    STARTING CHARGE Linear current will be supplied to NiCd and NiMH batteries during charge. The peak detection method will be used to fi nd the highest battery voltage during charge. Once peak voltage is detected, the charger will automatically stop fast charge and start trickle charge.

  • Page 7: View Data Screens

    VIEW DATA SCREENS After peak charge has been detected, you can review the four different data screens to see the fi nal results of the peak charge. While “End” is showing, repeatedly press DATA to scroll through the screens like shown on the previous page to view the fi nal results of the charge process.

  • Page 8: 5-Year Limited Warranty - U.s.a. & Canada Only

    5-YEAR LIMITED WARRANTY – *U.S.A. & CANADA ONLY DuraTrax warrants this product to be free from defects in materials and workmanship for a period of fi ve (5) years from the date of purchase. During that period, DuraTrax will, at its option, repair or replace without service charge any product deemed defective due to those causes.
  • Page 9 DuraTrax Ultimate Tool Set w/Pouch DuraTrax Ultimate tools have hardened steel tips plus a blue-anodized aluminum handle that’s knurled for a no-slip grip. This set has ‘em all – 4 each of metric and SAE hex drivers, 3 each of slotted and Phillips screwdrivers – plus an Ultimate Body Reamer.
