Duratrax ONYX 255 Quick Programming Manual

AC/DC DUAL CHARGER
WITH
1. Output 1 and Output 2 are independent. Connect the battery to one output and use the appropriate screen and controls for that output.
2. START: Connect the charger to power. The CHARGE START screen will appear, with the active battery memory number shown in the
top right corner (>0<). All settings for this memory will automatically scroll across the bottom of this screen or can be scrolled through using

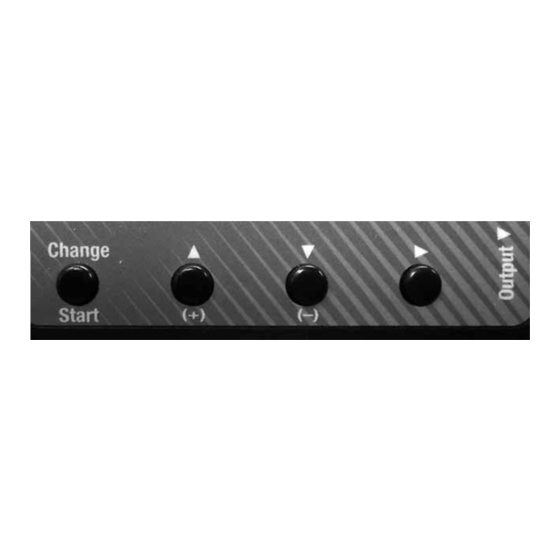

the and buttons. If these settings are acceptable for the battery to be charged, press and hold START and charge will begin.
3. SELECT A MEMORY: All ten memory profi les are pre-programmed with charge settings as
shown in the chart. Press CHANGE then
to confi rm. Press and hold START and charging will begin.
4. MANUAL SETUP: Follow the steps below
to fi nd the BATTERY SETUP screen to adjust
the charger settings to match a specifi c battery.
5. START CHARGE: After all settings are made, press
CHARGE START screen shows. Press and hold START for 2 seconds
and fast charge will begin.
™
Quick Reference Guide to Programming
NOTE:
BALANCING
the provided manual in its entirety before use, paying particular attention to all safety warnings!!
or to fi nd the correct profi le. Press CHANGE again
PRESS
BATTERY TYPE: Press CHANGE,
then to find the proper battery type.
Press CHANGE to confirm.
PRESS
CELL[02]: Press CHANGE, then
find the proper number of cells in the
battery (confirmed by the voltage shown
at the bottom of the screen). Press
CHANGE to confirm.
PRESS
CAPACITY: Press CHANGE, then
to find the rated capacity value of the
battery. Press CHANGE to confirm.
PRESS
CURRENT: Press CHANGE, then
to find the desired current. Press
CHANGE to confirm.
PRESS
S_TIMER: Press CHANGE, then
find the desired backup safety timeout for
charge. Press CHANGE to confirm.
until the
This guide does not replace the entire instruction manual as supplied with this charger. Read
MEMORY NO.
Capacity (mAh)
Safety Time (minutes)
Delta Peak (mV/C)
Trickle Current (mA)
PRESS
PRESS
MELODY: Press CHANGE, then
change the melody type. Press CHANGE
to confirm.
to
PRESS
BEEP OFF: Press CHANGE, then
to turn ON or OFF. Press CHANGE to
confirm.
to
WARNING!! NEVER LEAVE A BATTERY UNATTENDED WHILE BEING CHARGED! REFER
TO THE PROVIDED INSTRUCTION MANUAL FOR FULL DETAILS.
0 1 2 3
Battery Type LiPo LiPo LiPo LiPo
Cell Count 2 2 2 3
4000 5000 5700 5000
Current 4.0A 5.0A 5.7A 5.0A
120 120 120 120
– – – –
– – – –
PRESS
INPUT VOLTAGE: Shows the voltage
to
at the charger's input.
OUTPUT
voltage at the charger's output.
PEAK VOLTAGE: Shows the maximum
voltage measured on the battery during
charge.
CHG CAPACITY: Shows how much
energy was delivered to the battery during
charge.
CHG TIME: Shows how many minutes
elapsed during the charge process.
4 5 6 7 8 9
LiPo NiCd NiMH NiMH NiMH NiMH
3 6 6 6 7 7
6400 1800 3000 5000 3000 5000
6.4A 1.8A 3.0A 5.0A 3.0A 5.0A
120 90 90 90 90 90
– 10 8 8 8 8
– 200 250 250 250 250
PRESS
TO
CHARGE
START
PRESS
SCREEN
PRESS
VOLTAGE:
Shows the
PRESS
PRESS
PRESS
DTXP4255 QRG
