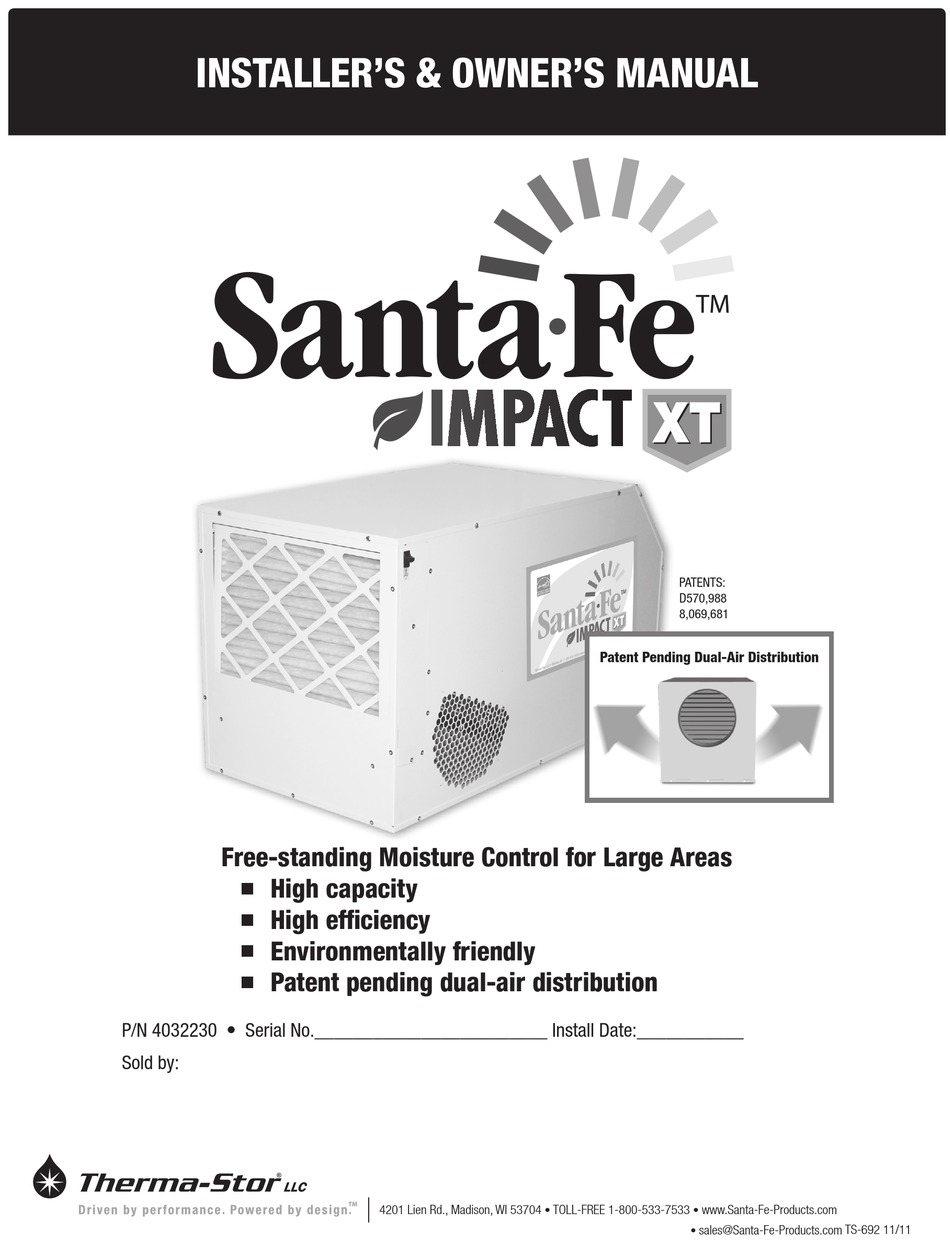

INSTALLER'S & OWNER'S MANUAL
Free-standing Moisture Control for Large Areas
P/N 4032230 • Serial No.________________________ Install Date:___________
Sold by:
For small usage:
High capacity
n
High efficiency
n
Environmentally friendly
n
Patent pending dual-air distribution
n
4201 Lien Rd., Madison, WI 53704
PATENTS:
D570,988
8,069,681
Patent Pending Dual-Air Distribution
TOLL-FREE 1-800-533-7533
www.Santa-Fe-Products.com
•
•
sales@Santa-Fe-Products.com TS-692 11/11
•
