I M PACT SERIES | I MPACT 155
Installation & Operation Instructions

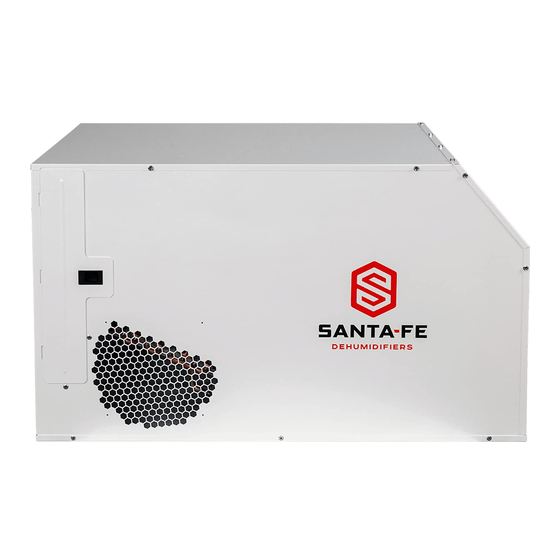

The Santa Fe Impact155 has a horizontal
configuration and dual outlet design. It can
cover up to 3,600 square feet, making it the
largest unit in the Santa Fe family. Its insulated
cabinet allows for quieter operation and
enables its exceptional performance in all
larger basement and crawl space applications.
Santa-Fe-Products.com | 800.533.7533
Part Number
4031470
Serial Number
Install Date
Sold By
Patent Pending
Dual-Air Distribution
Patents:
D570,988
8,069,681
9,052,132
TS-1083 6/18 Rev A
Advertisement
Table of Contents
Related Manuals for Santa Fe IMPACT Series
Summary of Contents for Santa Fe IMPACT Series
- Page 1 Install Date cover up to 3,600 square feet, making it the Sold By largest unit in the Santa Fe family. Its insulated cabinet allows for quieter operation and enables its exceptional performance in all larger basement and crawl space applications.
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..................3 Intended Applications ................3 Registrations ....................3 Specifications ..................4 Dehumidifier Set Up .................5 Items Included In Box.................5 Important Precautions ................5 Location Considerations ................5 Installing Leveling Feet ................5 Ducting to Finished Areas (Optional) ............6 Attaching Duct Collars ................6 Recommended Installations ..............7 Drain Installation ..................8 Operation ....................9... -
Page 3: Safety Instructions
• No user serviceable components. Contact installer or call 1-800-533-7533 for all repair or warranty needs. Intended Application(s) The Santa Fe Impact155 is intended for use in crawl spaces or basements: however, the unit can be placed in almost any residential setting where dehumidification is desired. Use in non-residential applications and pool areas may void warranty. -
Page 4: Specifications
21.75" 21.75" 4026969 10" Flex Duct 25' 4022126 10" Flex Insulated Duct 25' 4024750 12" Flex Duct 25' 4028366 12" Flex Insulated Duct 25' 4020175 Remote Dehumidistat FRONT FRONT BACK Santa Fe Impact155 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 5: Dehumidifier Set Up
Important Precautions • Do not install the Santa Fe Impact155 with the intake or exhaust of the unit within 1' of a wall or other obstruction. Avoid directing the discharge air at people. The dehumidifier should be used in the upright position. -
Page 6: Ducting To Finished Areas (Optional)
BOTH EXHAUST OUTLETS MUST BE LEFT OPEN OR DUCTED USING THE TWO 10” DUCT COLLARS. DO NOT BLOCK OFF ONE SIDE. FAILURE TO DO SO WILL RESULT IN DAMAGE OF THE UNIT. Output of Dehumidified Air Front View Front View Input of Humid Air Santa Fe Impact155 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 7: Recommended Installations
Dehumidistat (mounts on Duct Work opposite wall in finished area) • Place the Santa Fe Impact155 in the unfinished area of the basement, near a drain access (condensate will • Place the Santa Fe Impact155 in the unfinished area drain via gravity or with an optional pump kit). -
Page 8: Drain Installation
The pitch/slope of the drain pipe should be no less than 1 inch per 10 feet of drain pipe. An optional condensate pump kit is available for use with the Santa Fe Impact155 and may be installed if lift is required to dispose of condensate. -
Page 9: Operation
This function is desirable if the unit is used for air circulation or filtration. Turning the fan switch to “FAN AUTO” will cause the unit’s internal blower to run only while the unit is dehumidifying. 800.533.7533 | Santa-Fe-Products.com Santa Fe Impact155 Installation & Operation Instructions... -
Page 10: Air Filtration
Air Filtration The Santa Fe Impact155 is equipped with a MERV-13 filter. An optional MERV-11 filter is available at www.ThermastorFilters.com. The filter should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. -
Page 11: Merv Rating Chart
Air Filtration MERV Rating Chart http://www.mechreps.com/PDF/Merv_Rating_Chart.pdf 800.533.7533 | Santa-Fe-Products.com Santa Fe Impact155 Installation & Operation Instructions... -
Page 12: Electrical Requirements
Electrical Requirements The Santa Fe Impact155 plugs into a common grounded 115VAC outlet. The device draws 4.9 Amps at 80°F and 60% RH. Locate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of 15 Amp circuit capacity. -
Page 13: Service
Service WARNING! SERVICING THE SANTA FE IMPACT155, WITH ITS HIGH PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY DAMAGE. ONLY QUALIFIED SERVICE PEOPLE SHOULD SERVICE THIS UNIT. - Page 14 7. Collecting the water removed in a 24 hour period will give a measurement of performance. Santa Fe Impact155 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533...
-
Page 15: Warranty
Warranty Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants as follows: (i) the Santa Fe Impact155105 dehumidifier (“Product”) will be free of material defects in workmanship or materials for a period of 2 years (“Two-Year Warranty”) following the date of initial purchase of such Product by an original customer purchasing from Therma-Stor or an authorized reseller (“Customer”);... - Page 16 D E H U M I D I F I E R S Santa-Fe-Products.com 800.533.7533...
