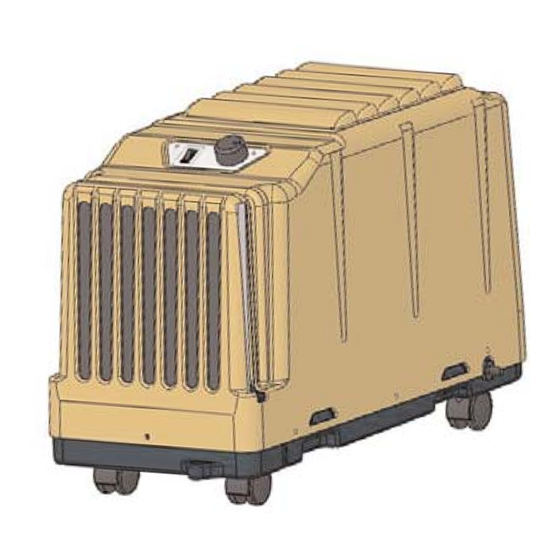

- Page 1 Sales Inquiries - 800-934-9194 Owner’s Manual Santa Fe Advance Dehumidifier Includes Safety & Operating Instructions and Warranty Information Santa Fe Advance P/N 4025699 READ AND SAVE THESE INSTRUCTIONS © 2005 Therma-Stor LLC Manual P/N 4025565...
-
Page 2: Table Of Contents
Warranty ........... . .13 Santa Fe Advance Owner’s Manual... -
Page 3: Precautions
Read the installation, operation, and maintenance instructions carefully before installing and using this unit. Proper adherence to these instructions is essential to obtain maximum benefit from your Santa Fe Advance dehumidifier. READ AND SAVE THESE INSTRUCTIONS This symbol indicates the possibility of death or WARNING serious injury. -
Page 4: Intended Application
(outside) air infiltration. Before installing the Santa Fe Advance, water intrusion and air infiltration problems should be addressed. 2 Registrations The Santa Fe Advance conforms to UL STD 474 and CSA Standard C22.2 No.92. 2 Specifications Model: Santa Fe Advance (P/N 4025699) Electrical: 110-120 VAC, 6.35 Amps @ 80°F, 60% RH,... -
Page 5: Unit Assembly
3 Unit Assembly 3.1 Installing Casters (Optional) Included with your Santa Fe Advance are four casters for easy mobility of the unit. Casters are packed in one of the styrofoam trays in the shipping box as shown in Figure 1. See Figures 2 and 2a for installing casters. -
Page 6: Installation
2. Locating near a floor or other suitable drain (8’ drain hose included). 3. Do not install the Santa Fe Advance with the intake or exhaust of the unit within 1' of a wall or other obstruction. Do not place the unit where curtains or debris can be drawn onto the intake and restrict airflow. -
Page 7: Removal
4.3 Condensate (Water) Removal The Santa Fe Advance drains via a gravity system - it is not able to push condensate (water) uphill. The drain hose must run flat or downhill toward the drain location. Be sure the hose is not kinked or otherwise restricted so that water can pass through it. -
Page 8: Defrost Cycle
Please call 1-800-533-7533 to order. Once the dial has been set to the desired level of humidity control, the Santa Fe Advance will maintain the same percentage of relative humidity regardless of room temperature. To turn the unit off, position the humidity dial to the far left and set fan control to “auto. -
Page 9: Maintenance
6.1 Air Filter The Santa Fe Advance ships with a 1" pleated fabric filter and a ¼" aluminum framed pre-filter installed. Operating the unit with a dirty or obstructed filter will reduce dehumidifier capacity and efficiency and may cause the compressor to cycle on and off unnecessarily. -
Page 10: Removing Filters
Only qualified service people should service this unit. 7.1 Technical Description The Santa Fe Advance uses a refrigeration system similar to an air conditioner’s to remove heat and moisture from incoming air and add heat to the air that is discharged. Hot, high pressure refrigerant gas is routed from the compressor to the condenser coil. -
Page 11: Troubleshooting
CONDENSER CAPILLARY TUBES EVAPORATOR ACCUMULATOR Figure 13: Santa Fe Advance Figure 14: Wiring diagram. refrigeration system. The evaporator operates in a flooded condition, which means that all the evaporator tubes contain liquid refrigerant during normal operation. A flooded evaporator should maintain constant pressure and temperature across the entire coil, from inlet to outlet. -
Page 12: Accessory/Replacement Parts
4025577 Hose, PVC, Clear, 0.50" diameter, 8' long 4025741 Thermostat, Defrost Control 4025564 Casters 4025571 Level Vial 4025322 Humidity Meter 4025569 Adapter, 1/2 Hose x 3/4 MNPT To order, contact your distributor or call 1-800-533-7533. Santa Fe Advance Owner’s Manual... -
Page 13: Warranty
FIRST AND SECOND YEAR WARRANTY: Therma-Stor LLC warrants that, for two (2) years after date of original purchase the Santa Fe Advance Dehumidifier will operate free from any defects in materials and workman- ship. Therma-Stor LLC’s exclusive obligation under this warranty will be to... - Page 14 (but all warranty periods will be extended by the period of time, if any, that the Santa Fe Advance Dehumidifier is out of service while awaiting covered warranty service).
- Page 15 Therma-Stor LLC. © 2005 Therma-Stor LLC. All rights reserved. PO Box 8050 2001 S. Stoughton Road Sales Inquiries - 800-934-9194 Madison, WI 53708 Phone: 608-222-5301 Fax: 608-222-1447 Web: www.thermastor.com Email: sales@thermastor.com Santa Fe Advance Owner’s Manual...
