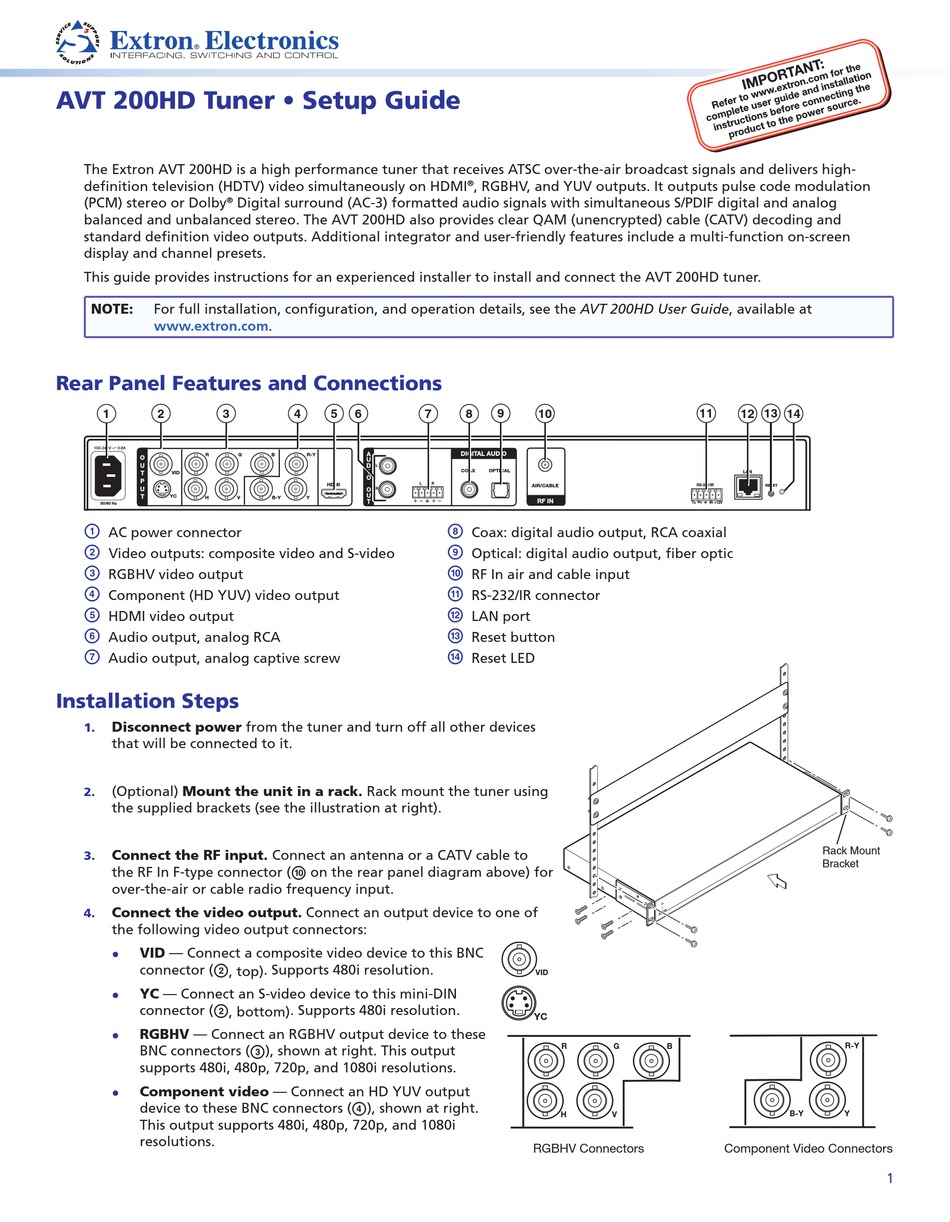

AVT 200HD Tuner • Setup Guide
The Extron AVT 200HD is a high performance tuner that receives ATSC over-the-air broadcast signals and delivers high-
definition television (HDTV) video simultaneously on HDMI
(PCM) stereo or Dolby
®
balanced and unbalanced stereo. The AVT 200HD also provides clear QAM (unencrypted) cable (CATV) decoding and
standard definition video outputs. Additional integrator and user-friendly features include a multi-function on-screen
display and channel presets.
This guide provides instructions for an experienced installer to install and connect the AVT 200HD tuner.
NOTE:
For full installation, configuration, and operation details, see the AVT 200HD User Guide, available at
www.extron.com.
Rear Panel Features and Connections
1 2 3
100-240V 0.8A
R
O
U
T VID
P
U
T YC
H
50/60 Hz
a
AC power connector
b
Video outputs: composite video and S-video
c
RGBHV video output
d
Component (HD YUV) video output
e
HDMI video output
f
Audio output, analog RCA
g
Audio output, analog captive screw
Installation Steps
Disconnect power from the tuner and turn off all other devices
1.
that will be connected to it.
(Optional) Mount the unit in a rack. Rack mount the tuner using
2.
the supplied brackets (see the illustration at right).
Connect the RF input. Connect an antenna or a CATV cable to
3.
the RF In F-type connector (
over-the-air or cable radio frequency input.
Connect the video output. Connect an output device to one of
4.
the following video output connectors:
VID — Connect a composite video device to this BNC
z
b
connector ( , top) . Supports 480i resolution.
YC — Connect an S-video device to this mini-DIN
z
b
connector ( , bottom) . Supports 480i resolution.
RGBHV — Connect an RGBHV output device to these
z
BNC connectors (
supports 480i, 480p, 720p, and 1080i resolutions.
Component video — Connect an HD YUV output
z
device to these BNC connectors (
This output supports 480i, 480p, 720p, and 1080i
resolutions.
Digital surround (AC-3) formatted audio signals with simultaneous S/PDIF digital and analog
4 5 6
A
G B R-Y
U
D
L
I
O
HDMI
O R
U
V B-Y Y
T
j
on the rear panel diagram above) for
c
), shown at right. This output
d
), shown at right.
® , RGBHV, and YUV outputs. It outputs pulse code modulation
7 8 9 10
DIGITAL AUDIO
COAX OPTICAL
L R
AIR/CABLE
RF IN
h
Coax: digital audio output, RCA coaxial
i
Optical: digital audio output, fiber optic
j
RF In air and cable input
k
RS-232/IR connector
l
LAN port
m
Reset button
n
Reset LED
VID
YC
R
H
RGBHV Connectors
Product Category
11 12 13 14
LAN
RS-232/IR
RESET
Tx Rx IR +12V
G B
B-Y
V
Component Video Connectors
Rack Mount
Bracket
R-Y
Y
