Digital Harddisk Twin Receiver
DVR 9500
DVR 9600
Item no. 39746
Item no. 39745

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR 9500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skymaster DVR 9500

Summary of Contents for Skymaster DVR 9500

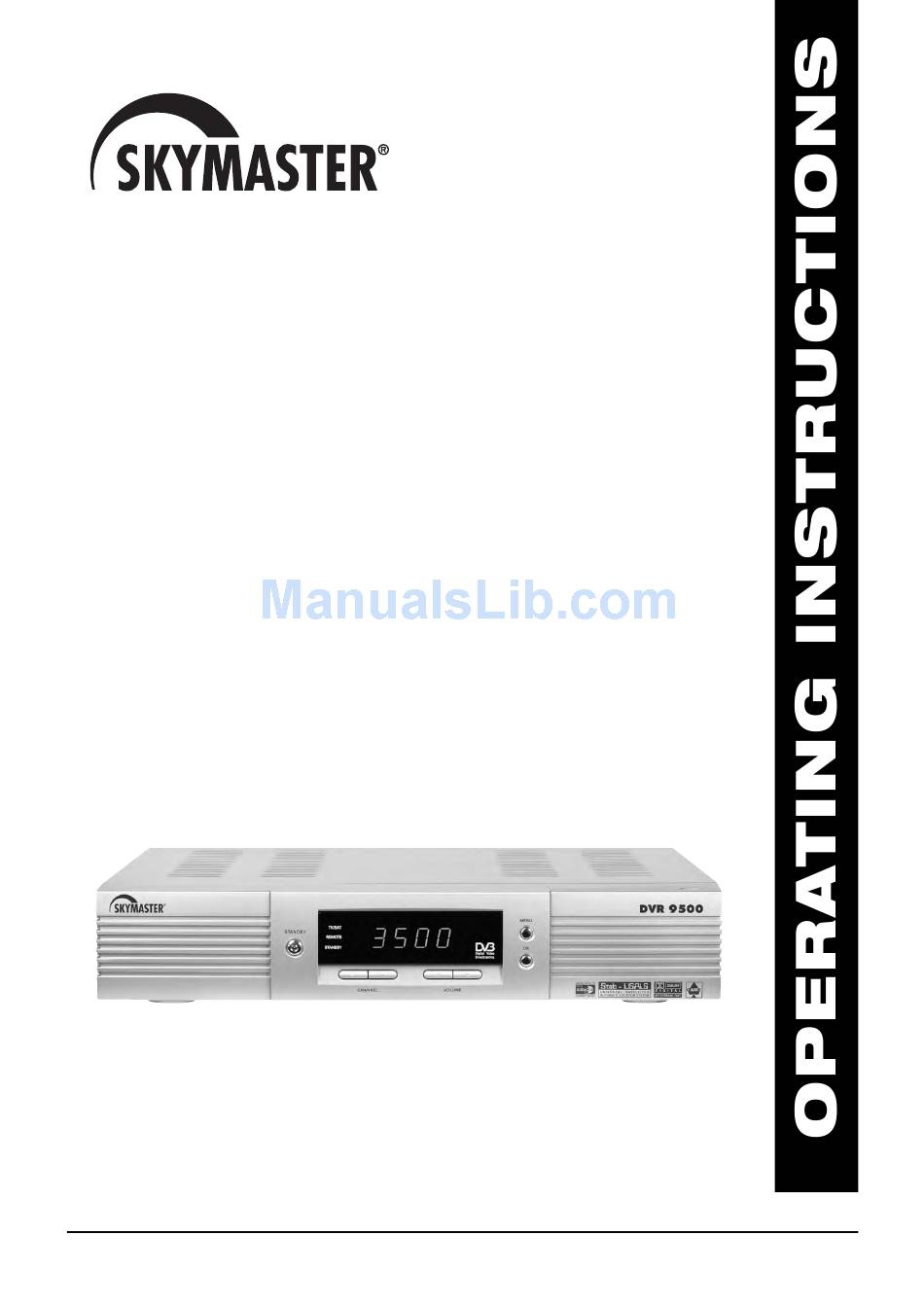

  • Page 1 Digital Harddisk Twin Receiver DVR 9500 DVR 9600 Item no. 39746 Item no. 39745...

  • Page 2: Table Of Contents

    ® DVR 9500 and 9600. To be able to receive ASTRA and EUTELSAT, it must be equipped with a universal LNB. Table of Contents ......46 VII.

  • Page 3: Performance Characteristics

    Mains voltage: Use the equipment with the voltage specified on the case only! Do not plug the equipment into the mains until all connection and installation work has been completed. Earthing: Antenna systems must always be earthed, paying heed to the pertinent local and VDE regulations. ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. 39746 39745...

  • Page 4: Information And Direct Satellite Reception

    4. Information on direct satellite reception Selecting the antenna location. Viewed from Europe, all TV satellites are located in the south, therefore you must select the installation location so that the antenna points southwards. The satellite systems with the largest, freely receivable programme ranges are ASTRA®...
  • Page 5 4. Information on direct satellite reception The following EUROPE ASTRA 19,2° east HOTBIRD 13° east setting angles Brussels 30,1 31,2 apply for the Sarajewo 39,4 39,1 various locations: Copenhagen 26,3 26,6 Tallinn 22,4 21,9 Helsinki 21,6 21,0 Marseilles 38,1 39,5 Paris 31,6 33,0...
  • Page 6 4. Information on direct satellite reception For precise alignment of the antenna, the complete cabling must now be connected. The television and the receiver should be located in the immediate vicinity of the antenna. It is almost impossible to align the reception system by “shouting” e.g. from a distant television. A SAT finder (art.
  • Page 7 4. Information on direct satellite reception You must now move the preset antenna in millimetre steps, with the screws only hand-tight. Please note that there must not be any obstacles between antenna and reception direction, and that you must not stand in front of the antenna area.

  • Page 8: Operating Elements, Front And Rear

    5. Operating elements, front of device 1. LED: 4. VOLUME TV/STB REMOTE (Indication for remote control function) Controls for volume or channel list. STANDBY 5. OK: Choise for channel list and sub menu. 2. Display: 6, MENU: During theSTANDBY mode, the current time is 7.

  • Page 9: Remote Control Unit (Rcu)

    6. Remote control unit (RCU) 1. POWER Button Switch the DVR between Operation and Standby mode. 2. MUTE Button Enable / Disable the Audio. 3. UHF Button OPTIONAL – No function 4. TV/STB Button Change the terrestrial TV and STB mode. 5.

  • Page 10: Connections

    7. Connections Connection to the SAT antenna The DiSEqC technology allows a large number of connection variants e.g.: • A permanently aligned SAT antenna • Two permanently aligned SAT antennae or Multifeed antennae with DiSEqC 2-way switch (art. no. 3932) •...
  • Page 11 7. Connections Installation: 2 Single LNB For fixed or rotating antenna system with 2 x Universal Single LNB. Two cables will be used between LNB and receiver. Setting in menu “LNB settings”: separated. Installation: 1 Twin LNB For fixed or rotating antenna system with 1 x Universal Twin LNB Two cables will be used between LNB and receiver.

  • Page 12: Connecting To A Video Recorder

    7. Connections Connecting to the TV unit You use a SCART cable for connecting to the TV set. If you have a TV with a 16:9 screen, for example, you can adjust the settings to match your TV set in the receiver's screen menu. The default screen format is 4:3. If your TV set does not have a Scart socket, use an appropriate adapter or use the 3 cinch outputs Connecting to a video recorder Connect the video recorder and the satellite receiver using a Scart cable.

  • Page 13: Getting Started

    8. Getting started Press the Power button to operate the DVR from the STANDBY mode. Now, the Info Box will appear for a given time and disappear. By pressing info button, the Info Box will remain on the screen. The display time of the Info Box is adjustable in the System Setting menu of the Main menu.

  • Page 14: Menu Operations

    9. Menu operations Now this chapter assumes that the DVR system has been installed correctly, meaning: • The satellite antenna for the DVR has been installed, connected to the DVR. • The DVR is connected to the TV. • The RCU has batteries and ready to control the DVR. If the DVR has not been installed or connected properly, please refer to the INSTALLATION menu on this manual.
  • Page 15 9. Menu operations B. Timer Use the buttons to select the On/Off mode. If the Timer item is set on ON, the Wakeup Time item, the Wakeup Channel item and the Power Off Time item becomes adjustable. C. Wakeup Time The Wakeup Time item sets up the time the DVR automatically turns on.

  • Page 16: I-2. Parental Control

    9. Menu operations I-2. Parental Control Password to various menus can be configured. The PIN Code box will auto- matically appear when this menu is selected. The default PIN Code is 0000. A. Censorship The Censorship item blocks programs according to each specific setting. buttons to select the items below.

  • Page 17: I-3. Language Setting

    9. Menu operations I-3. Language Setting There are many languages available for the menu. A. Menu Language It is an item for changing the language of the Main menu. Select the language that the menus will be shown in. English / French / Deutsch / Italian / Spanish / Arabic / Greek / Turkish / Danish / Swedish / Norwegian / Dutch / Russian / Polish / Persian B.

  • Page 18: I-4. A/V Output Stting

    9. Menu operations I-4. A/V Output Setting The PVR has many A/V Outputs. Control this menu properly according to external components connected to the PVR. Configurations concerning Audio and Video can be made here. A. TV Type Select your TV standard. For automatic PAL/NTSC selection, set it to Multi. B.

  • Page 19: Organizing Channels

    9. Menu operations II. Organizing Channels This menu can be used to rename, reorder, lock, hide and delete TV Services. A. Browse Press OK button. Now, browsing through the Organizing Channels is possible. Press assigned buttons on the help message. B.

  • Page 20: Main Menu

    9. Main menu III. Organizing Favorites This mode is helpful in adding and deleting services to and from the favorite group. Under the menu Organizing Favorites, there are three different modes: Fav List , Fav CHs and TV or Radio Ch List. On the Fav List mode, four standard lists are selected as the default menus: News, Sports, Movie and Music.

  • Page 21: Iv-8. Delayed Recording

    9. Main menu IV-8. Delayed Recording In this menu you can reserve delayed recording. A. Satellite Press OK button to display the satellite list. Select a satellite that includes the channel to be recorded. B. Channel Press OK button to display the channel list. Select a channel to be recorded.

  • Page 22: Installation

    9. Main menu VI. Installation VI-1. LNB Setting The Low Noise Blockdown Converter (LNB) amplifies the signal received by the satellite dish and lowers the frequency of the signal. The signal is then fed from the LNB at the dish via cable to the DVR. For the LNB Settings, move the cursor to Installation item and press button.

  • Page 23: Vi-2. Channel Search

    9. Main menu VI-2. Channel Search A. Satellite Name Press the button to display the Satellite List Box. The Satellite name list is put in alphabetical order. Select one of the preprogrammed satellites that correspond to the value of the antenna. If the desired satellite name is not in the list, then select Others.

  • Page 24: Vi-3. Services Copy

    9. Main menu VI-3. Services Copy In this menu, you can copy the existing channels between Tuner 1 and Tuner 2. A. Tuner 1 to Tuner 2: Copy the service list of Tuner 1 to that of Tuner 2. B. Tuner 2 to Tuner 1: Copy the service list of Tuner 2 to that of Tuner 1. C.

  • Page 25: Vi-6. Sat/Tp Edit

    9. Main Menu • Satellite Angle: It is the longitude of the selected satellite and it can be set automatically in case of selecting a satellite name. You can use numeric keys of RCU to enter the angle. East or West will be selected by button.

  • Page 26: Vi-7. Factory Setting

    9. Main Menu VI-7. Factory Setting All the stored data can be reset just like it was manufactured. The factory setting has two steps. The first is to reset the channel data and other system configurations except Motorized DiSEqC1.2 setting. The second is to reset the parameters of Motorized DiSEqC 1.2.

  • Page 27: Vii-2. Calendar

    9. Main Menu VII-2. Calendar Press button to select the year. Press button to select the month. VIII. Common Interface (only DVR 9600) The menu differs according to each inserted CAM. If the module has not been installed yet, the phrase Not Installed will be indicated. 39746 39745...

  • Page 28: Game

    9. Main Menu IX. Game IX-1. ExBlock IX-2. BricksLay IX-3. Bomb Hexa 39746 39745...

  • Page 29: Function Guide

    10. Function Guide Channel List Press button to see the Channel List. The Channel List display as follows • Service provider • Channel List by Tuner 1 or Tuner 2 • Scrambled Mark by $ Information Box Press info button on the RCU to see the program information. The Information Box displays as follows: •...

  • Page 30: Subtitle

    10. Function Guide Subtitle You can choose a language of subtitle using sub button on the RCU. If the broadcaster provides subtitles, you can see subtitle symbol in the Information Box. Teletext If the broadcaster supports teletext, you can see teletext symbol in the Information Box.

  • Page 31: Time Shifting

    10. Function Guide Time Shifting 1. To use Time Shifting function, the Time Shifting option should be enabled. To find the Time Shifting option menu, follow the steps below. Main Menu – System Setting – Time Shifting – Enable 2. Press button to display Time Shifting progress bar.

  • Page 32: Playback A Recorded Service

    10. Function Guide 3. Delayed Recording A. Record Go to System Setting menu and press OK button at the Timer Setting item. At Timer Setting, press F1(Red) button to insert a new recording entry. Set the options that you want to record with by using button.

  • Page 33: Slow Motion Playback

    10. Function Guide Slow Motion Playback 1. To playback in slow motion (without sound), press the slow button. 2. Slow motion speed can be adjusted by pressing the slow button repeatedly. 3. There are 3 steps (1/2, 1/4, 1/8) in slow motion playback. 4.

  • Page 34: Recording The Descrambled Live Service (Only Dvr 9600)

    10. Function Guide Recording the Descrambled Live Service (only DVR 9600) 1. Select the live picture you want to record. Descramble the service with a proper CAM and smart card. The live service should be decoded well with the proper CAM and smart card. 2.

  • Page 35: Time Shifting While Recording

    10. Function Guide Time Shifting while Recording During recording, Time Shifting is possible. But only in the recorded channel. Zapping while Recording For the tuner being recorded with, all the channels in the same Channel can be selected. For the other tuner, all the scanned channels can be selected. Repeated Playback mode The repeated Playback mode works only in playback mode.

  • Page 36: Specifications

    11. Specifications Item Specification Tuner & Service Decoder 2 Tuners Decoding & recording (or decoding) Input/Loop through Connector 75 ,IEC 169-24, Female Frequency Range 950 ~ 2150MHz Signal Level Input -65 ~ -25dBm Vertical: +13.5VDC Horizontal: +18VDC LNB Power & Polarisation Current: Max.

  • Page 37: Trouble-Shooting Guide

    11. Specifications Item Specification RF-Modulator RF-Connector 75W, IEC 169-2, Female/Male Frequency 470 ~ 860MHz Output Service CH21 ~ 69 TV standard PAL G/I/K selectable by Menu Power Supply Input Voltage 90 ~ 250VAC, 50/60Hz Type SMPS Power Consumption Running: Max. 22W, Standby: 8W Protection Separate internal fuse.

  • Page 38: Sat Lexicon - Explanations Of Technical Terms

    13. SAT lexicon – Explanations of technical terms 22 kHz pulse: This pulse, generated by the receiver, is used to control switches or to switch Universal LNBs to the digital range. Analogue programmes: In comparison with digital signals, analogue signals require a considerably greater quantity of information. With the constantly increasing range of programmes, the bandwidths available would no longer suffice in the long term.
  • Page 39 13. SAT lexicon – Explanations of technical terms Transfer switch: Transfer switches (sometimes integrated into multi-switches) are required to fan-in SAT and terrestrial signals. These must be separated again by “reversed” transfer switches or SAT connection boxes. Reception frequency: As with VHF reception, each satellite programme has a reception frequency. In contrast to tuning a radio transmitter, further settings are necessary (polarisation, DiSEqC/22kHz/LO frequency)! If e.g.
  • Page 40 13. SAT lexicon – Explanations of technical terms Multi-switches: Multi-switches are used in SAT distribution systems (from 3 subscribers/receivers). Multi-switches have at least 2 LNB connections for 1 double LNB (horizontal 18 V and vertical 13 V, possibly terr. input). In digitally compatible or Multifeed systems, at least 4 LNB inputs are required: horizontal 18 V, vertical 13 V, horizontal 18 V + 22 kHz and vertical 13 V + 22 kHz.
  • Page 41 13. SAT lexicon – Explanations of technical terms SCART: 21-pin plug standard for bidirectional image and sound transmission. Switching voltages and data can also be transmitted. 10-pin scart cables are sufficient for a satellite receiver or VHS video recorder. If a decoder or Super-VHS video recorder is used, 21-pin scart cables must be used! There are 3 common standards, which must be set on the video recorder or television so that the picture signal of the SAT receiver can be transmitted faultlessly: FBAS (setting on TV/video e.g.

  • Page 42: Service

    SM ELECTRONIC GmbH & Co. KG Waldweg 2 D-22145 Stapelfeld/Germany Internet: www.skymaster.de E-Mail: info@sm-electronic.de Subject to technical changes ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. 39746 39745...
  • Page 43 39746 39745...
  • Page 44 99039746-7/2004 99039745-7/2004...
