Summary of Contents for Skymaster DCI 35

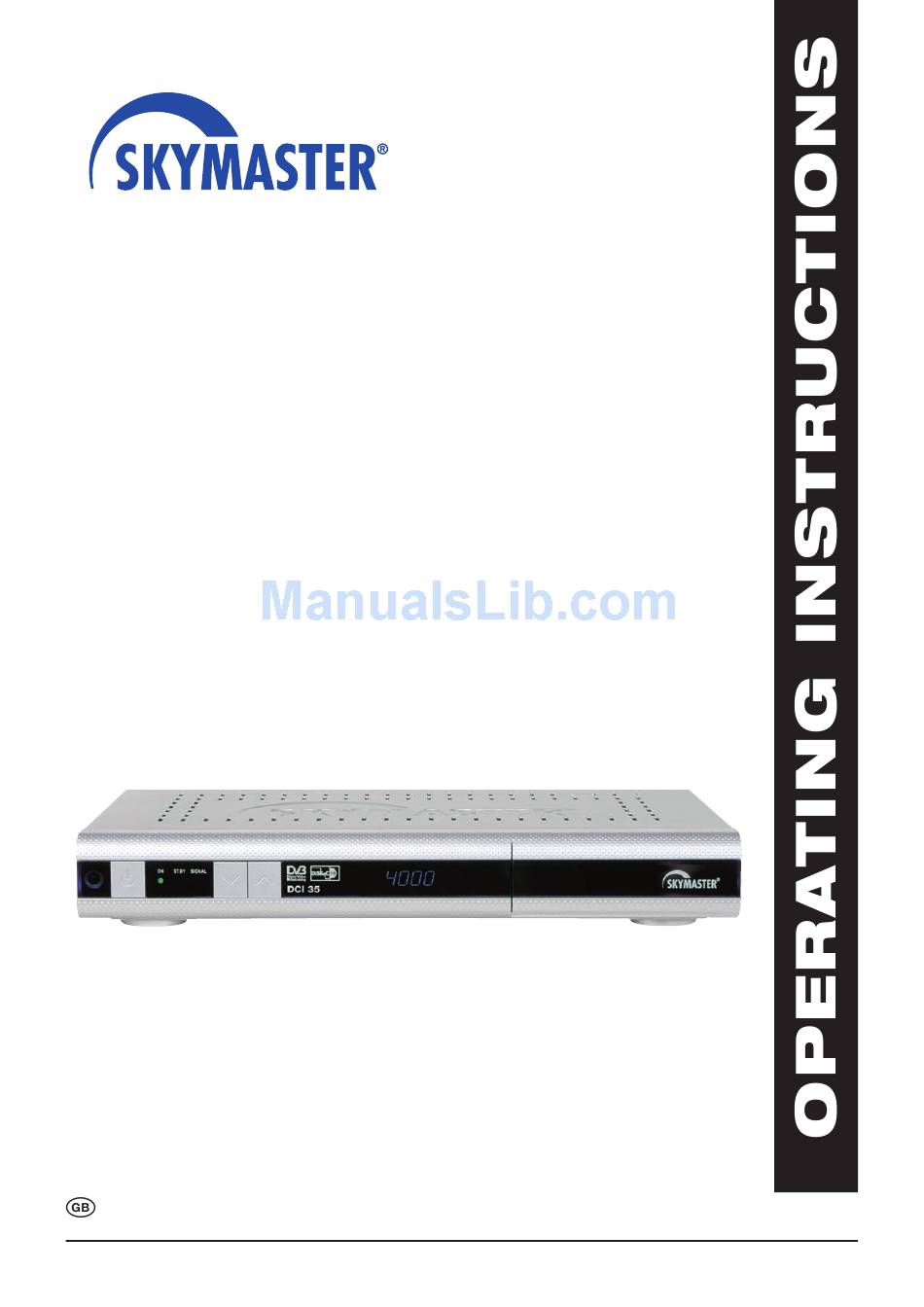

- Page 1 Digital Satellite Receiver DCI 35 19725...
- Page 2 DCI 35 5 4 3 DISH AC3/SURROUND 230 V HiFi...
-
Page 4: Table Of Contents

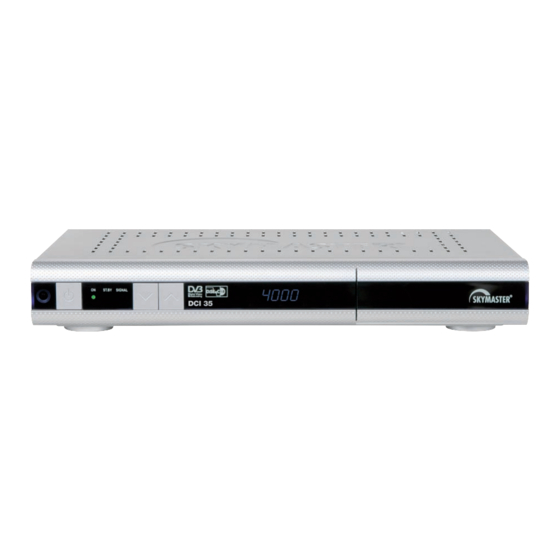

® DCI 35 is a receiver for the reception of digital TV channels and can be additionally extended by two card readers (not included) for the reception of coded digital TV channels of the respective channel providers. Please note that a satellite antenna which is suitable for digital reception is required to operate the SKYMASTER ®... -
Page 5: Safety Information
ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. SM Electronic GmbH hereby declares that Article No. 19725 complies with the basic requirements and other relevant regulations of directives 2004/108/EC and 2006/95/EC. -
Page 6: Start
Start Guided installation After first installation of receiver or after reset the sub menu “guided installation” appears on screen in german language. The receiver is pre-set for program on Astra 19,2°, Hotbird 13° and Türksat 1C 42° east. If no other satellite position is requested, please push the green knob on remote control (saving) and leave the main menu with “EXIST”. -
Page 7: Volume And Audio Settings
5. Daily Use Additionally, you can select which channels are to be displayed: Favourite: Select one of 6 favourites lists (Note: If the favourites lists are empty, no channels are listed!). Satellite: Only the channels of the selected satellite are listed. Press the SAT button to open an overview of all the previously stored satellites. -
Page 8: The Osd
5. Daily Use The OSD Once installation has been completed and the satellite receiver has been connected to all the devices, a preset ASTRA satellite TV channel is displayed after switching on. Open the main menu by pressing the MENU button on the remote control to change the default settings. -
Page 9: The Osd - Channel Administration
7. The OSD – Channel Administration 1. Channel administration The simple, extensive and convenient administration of your channels is an outstanding feature of your satellite receiver. Due to the ever increasing number of new satellites and channels the sorting of interesting and less interesting channels demands increased flexibility. The item “Channel administration”... -
Page 10: Move Channels
7. The OSD – Channel Administration Move channels Open the TV channel administration menu and press the YELLOW button to “move” channels. Use this function to move any channel within the channel list. Select the channel first and then press the OK button. -
Page 11: The Osd - Programme Guide
7. The OSD – Programme Guide 2. Programme guide The EPG is an electronic programme guide for TV channels and radio stations which provides you with additional information on the respective channel package. It displays, e.g., the title of the current programme or radio station. -
Page 12: The Osd - Time And Timer Settings
7. The OSD – Time and Timer Settings 3. Time and timer settings Set the time Open the main menu to set the time and date. The “Timer” selection includes two menus. Select “Set the time”. It is possible to carry out the local time settings in the timer menu which appears. Set the difference to Central European Time (CET) when setting the time zone. -
Page 13: The Osd - User Installation
7. The OSD – User Installation 4. User installation The selection INSTALLATION contains the following 6 submenus: Antenna setting Channel search System setting Download via satellite Parental lock Factory setting 4.1 Antenna setting Further setting possibilities are displayed at the bottom of the picture – depending on the antenna configuration. -
Page 14: Diseqc 1.2 Rotor Control
7. The OSD – User Installation Antenna setting – DiSEqC 1.2 rotor control Skip this chapter if you do not possess a DiSEqC 1.2 rotor. Note: When using a rotor, connect it to a DiSEqC LNB. 1) Antenna: It is possible to carry out up to 16 different antenna configurations in connection with various satellite selectors. -
Page 15: Channel Search
7. The OSD – User Installation 4.2 Channel search It is possible to add or delete channels or satellites via the Channel Search menu. If your receiver is connected to a system which can receive several satellites (e.g. multifeed systems) or to a rotatable antenna rotor, it is possible to add additional satellite positions. -
Page 16: System Setting
To add new features or to carry out error corrections you can load, if necessary, new receiver software via ASTRA position 19.2° East. Note: This software is transmitted in a weekly or daily cycle with software for other Skymaster models. Find detailed information at www.skymaster.de. -
Page 17: Parental Lock
7. The OSD – User Installation 4.5 Parental lock It is possible to lock channels with contents which are inappropriate for young viewers via a password. It is also possible to protect the installation menu and your personal settings against unauthorised access. -
Page 18: The Osd - Coding System
7. The OSD – Coding System 5. Coding system Common interface & Smartcard (option) It is possible to also receive coded channels via special Conditional Access Modules (CAM). This receiver currently supports various coding systems, e.g. Alphacrypt, Aston/Seca, Irdeto, VIACCESS, Nagravision, CONAX and CryptoWorks. Common Interface Modules and Smartcards can be obtained from your specialist dealer. -
Page 19: Troubleshooting
8. Troubleshooting Not functioning Check the position of the mains switch and, if necessary, switch on the device (3. Operating elements receiver, A, page 3, point 6). No antenna signal (no signal indicator at the device and via the signal indicators in the OSD): 1. -
Page 20: Performance Features
Internet: www.skymaster.de E-Mail: info@sm-electronic.de Subject to technical changes • ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. Waste electrical and electronic equipment is classed as recyclable waste and does not belong in domestic refuse! We therefore request you to actively support the conservation of resources and environmental protection and to dispose of this device at responsible take back points –... - Page 21 GB 19...
- Page 22 9901972502-BDA-GB-12/2008...
