Skymaster DVR 9200 Operating Instructions Manual

Digital harddisk receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

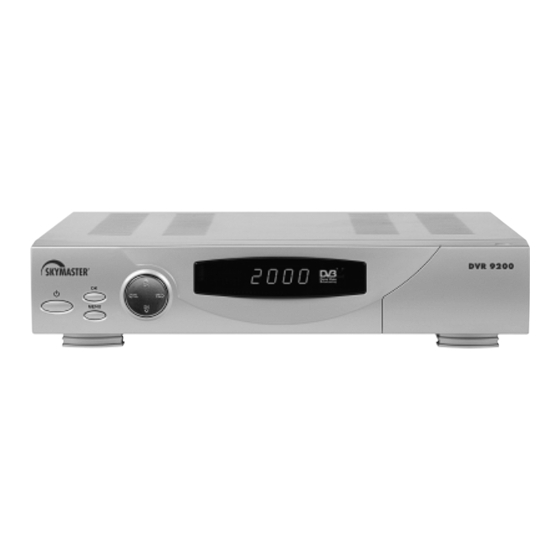

Digital Harddisk Receiver
DVR 9200
Item no. 39743

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR 9200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skymaster DVR 9200

Summary of Contents for Skymaster DVR 9200

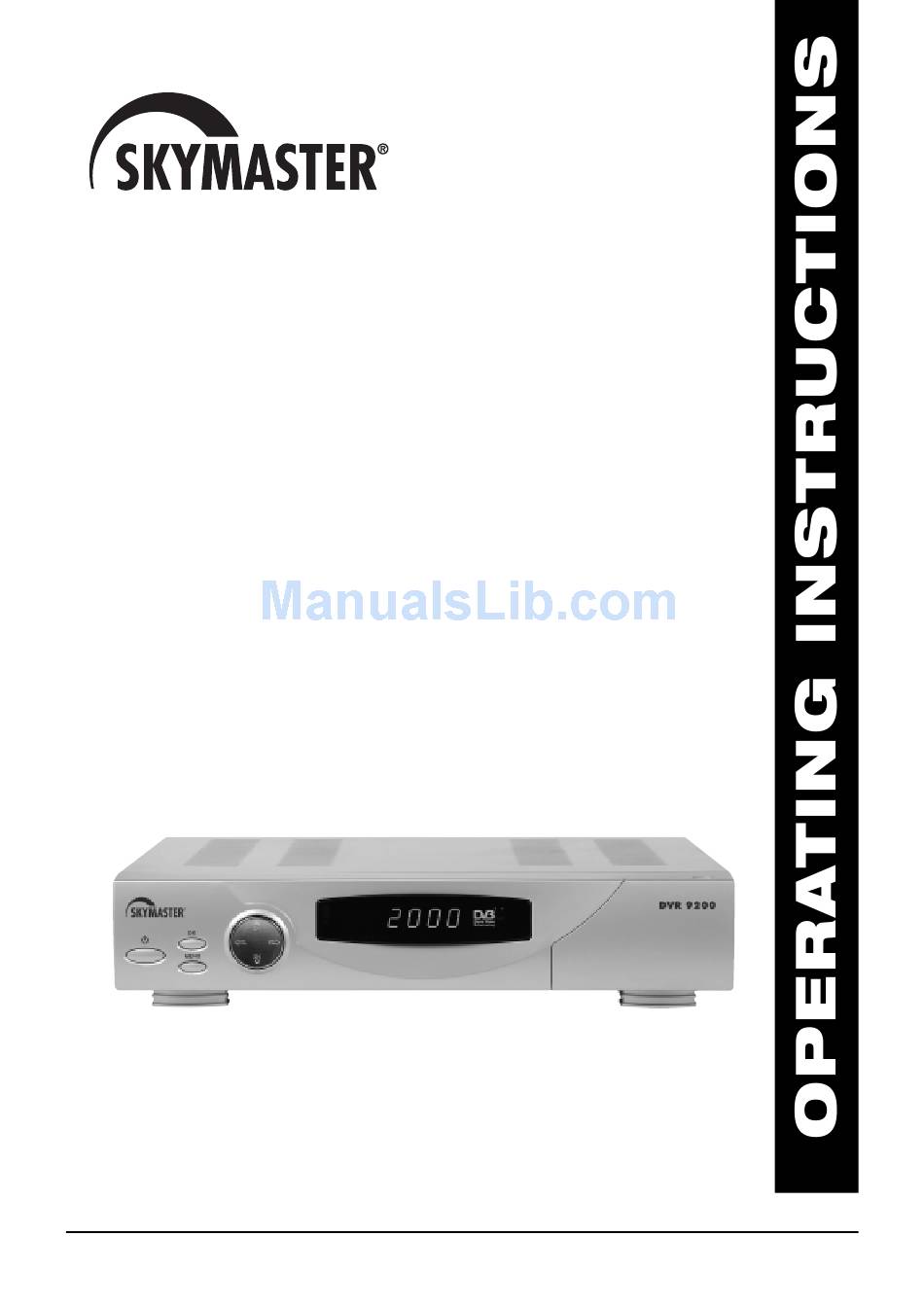

  • Page 1 Digital Harddisk Receiver DVR 9200 Item no. 39743...

  • Page 2: Table Of Contents

    ® DVR 9200. To be able to receive ASTRA and EUTELSAT, it must be equipped with a universal LNB. Table of Contents ......40 3.3.3 Delete channels .

  • Page 3: Performance Characteristics

    Mains voltage: Use the equipment with the voltage specified on the case only! Do not plug the equipment into the mains until all connection and installation work has been completed. Earthing: Antenna systems must always be earthed, paying heed to the pertinent local and VDE regulations. ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. 39743...

  • Page 4: Information And Direct Satellite Reception

    4. Information on direct satellite reception Selecting the antenna location. Viewed from Europe, all TV satellites are located in the south, therefore you must select the installation location so that the antenna points southwards. The satellite systems with the largest, freely receivable programme ranges are ASTRA ®...
  • Page 5 4. Information on direct satellite reception The following EUROPE ASTRA 19,2° east HOTBIRD 13° east setting angles Brussels 30,1 31,2 apply for the Sarajewo 39,4 39,1 various locations: Copenhagen 26,3 26,6 Tallinn 22,4 21,9 Helsinki 21,6 21,0 Marseilles 38,1 39,5 Paris 31,6 33,0...
  • Page 6 4. Information on direct satellite reception For precise alignment of the antenna, the complete cabling must now be connected. The television and the receiver should be located in the immediate vicinity of the antenna. It is almost impossible to align the reception system by “shouting” e.g. from a distant television. A SAT finder (art.
  • Page 7 4. Information on direct satellite reception You must now move the preset antenna in millimetre steps, with the screws only hand-tight. Please note that there must not be any obstacles between antenna and reception direction, and that you must not stand in front of the antenna area.

  • Page 8: Front And Rear

    5. Operating elements, front of device CAM modules not included! 1. STANDBY: With this key you can switch between Operation and Standby. 2. Menu: With this key you can invoke the main menu. 3. OK: With this key you can invoke the channel list and select an element in the menu. 4.

  • Page 9: Remote Operation

    6. Remote operation STANDBY (red): You can switch between Operation and Standby with this key. Number block: You can change programmes or select menu options with the help of these keys. AUDIO: With this key you can select the sound mode between left + left, right + right or stereo off.

  • Page 10: Connections

    7. Connections Connection to the SAT antenna The DiSEqC technology allows a large number of connection variants: • A permanently aligned SAT antenna • Two permanently aligned SAT antennae or a Multifeed antenna with DiSEqC 2-way switch (art. no. 3932) •...

  • Page 11: Connecting To A Video Recorder

    7. Connections Connecting to the TV unit You use a SCART cable for connecting to the TV set. If you have a TV with a 16:9 screen, for example, you can adjust the settings to match your TV set in the receiver's screen menu. The default screen format is 4:3. If your TV set does not have a Scart socket, use an appropriate adapter or use the 3 cinch outputs Connecting to a video recorder Connect the video recorder and the satellite receiver using a Scart cable.

  • Page 12: View Mode

    8. View Modus 1. Programme Info Box Details about the current channel such as for instance, the name of the broadcaster and the programme title are displayed when you press the “Info” key or the channel. 2. Possibilities of changing the channel in the View Mode •...

  • Page 13: Subtitles

    8. View Modus 6. Subtitles If the current programme contains sub titles, you can invoke these through the “SUBTITLE” key. 7. The procedure for changing the channel in the Bouquet mode: Activate the “BOUQ” key to invoke the already browsed Bouquet List. Activate “CH ”, “CH ”...

  • Page 14: Main Menu

    9. Main menu Connect the receiver. Then press the “ ” key on the remote operation or the “Standby” key on the front screen of the receiver. The main menu will now appear on the monitor screen. The main menu displays different sub menus of the receiver.
  • Page 15 9. Main menu For satellite selection “Other” Antenna select: Select your LNB. • “One LNB”: While using one LNB • “Multi LNB or Motor”: If you use several LNBs or a motorized antenna • Satellite: Select the desired satellites • LNB: Select the LNB frequency. The frequency specifications are usually located on the LNB (e.g., 9.75/10.6 GHz for one Universal LNB).

  • Page 16: Antenna Setup

    9. Main menu 1.2 Antenna Setup Select “Antenna Setup” from the Installation menu and confirm by pressing “OK”. Select the options with the “Ch ”, “Ch ” keys and change the values with the “ ”, “ ” keys. 1.2.1 One satellite If you receive only one satellite: Satellite name: Select the name of the satellite that you wish to receive.

  • Page 17: Multi Satellites With Diseqc 1.2

    9. Main menu 1.2.3 Multi satellites with DiSEqC 1.2 Satellite name: Select the name of the satellite. LNB Freq. Low: Preferably select the setting “Universal” (Low = 9750 and High = 10600 MHz). You may skip the next option LNB Freq. High). LNB Freq.

  • Page 18: Add Satellite Or Tp

    9. Main menu 1.2.5 Add a satellite or TP (transponder) Satellite name: Select the satellite to which you wish to add the TPs. If you select “User”, you can add a new satellite. LNB Freq. Low: Preferably select the setting “Universal” (Low = 9750 and High = 10600 MHz).

  • Page 19: Advanced Switch

    9. Main menu 1.4 Advanced search Select “user-defined search” from the “Installation” menu and confirm the selection with “OK”. You can get more information about “user-defined search” from your dealer, from the Internet or from satellite magazines. Satellite name: Select the name of the satellite. TP Frequency: TP frequency values can be set with “...

  • Page 20: Environment

    9. Main menu 2. Environment You can execute the settings of the TV system, time and language etc. in “Environment”. 2.1 TV settings Monitor screen format: Choose between 4:3 normal format and 16:9 wide picture format. Video output format “CVBS” (Composite or even FBAS): Deactivate RGB output. The picture now appears through the CVBS output.

  • Page 21: Parental Lock

    9. Main menu 2.4 Parental lock The parental lock protects your receiver against unauthorized access. Menu lock: With this option, you can activate or deactivate password protection necessary for accessing the “Installation”, “Environment” and “Change/Delete Channel List”. Use the “ ”, “...

  • Page 22: Digital 5.1 Ch Audio Setting

    9. Main menu 2.6 Digital 5.1 CH audio setting Choose digital or analogue audio by using the “ ” or “ ” keys. 2.7 Front panel time display option Activate or deactivate the time display option on the front panel with the help of the “...

  • Page 23: Edit Tv Channels

    9. Main menu 3.3 Edit TV channels Select an already created list with the “ ”, “ ” keys. 3.3.1 Add favourite channels Select a channel from the “ALL TV” or “FREE TV” list and add it with the “OK” key. Press the “List” key to get a display of the ALL TV or Free TV list on the left side.

  • Page 24: System Information

    9. Main menu 4. System information You can get information on the version of the system. S/W Ver.: Version No. of the software. H/W Ver.: Version No. of the hardware. 5. Software update With the help of “Software update”, you can download a new software version through satellite or an RS-232 cable.

  • Page 25: Pvr Guide, Main Menu

    10. PVR Guide – Main Menu 6. Recording 6.1 Channel On pressing the “OK” key, you get the list of channels from which you can select the desired broadcaster. 6.2 Filename Press the “OK” key to define the filename. Otherwise the name of the broadcaster is used as the default filename.

  • Page 26: Hard Disk

    10. PVR Guide – Main Menu 7. Hard disk The hard disk menu is divided into three categories. 7.1 Time shift To enable time shift during the recording, or to deactivate the function, set the value “activate” or “deactivate” respectively. 7.2 Automatic Standby after Timer Recording Here you can define whether or not the device should automatically go to the Standby mode after the end of the timer recording has been reached.

  • Page 27: Pvr Guide - Function Keys For Remote Operation

    11. PVR Guide – Remote Operation function keys The Personal Video Recorder (PVR) has the following additional function keys: PLAY [ ], STOP [ ], REW [ ], FF [ ], SKIP [ I], DEL [X], BOOKMARK [ ], BOOKMARK JUMP [ ], and REC [ ]. 1.

  • Page 28: Del / Bookmark / Bookmark Jump / Rec

    11. PVR Guide – Remote Operation function keys 6. DEL [X] (Delete) 6.1 Delete file You can select the file to be deleted through the [ ] und [ ] keys on the file list invoked with the help of [ ]. The selected file is deleted when you press the [X] key and then confirm the operation with [OK].

  • Page 29: Pvr Guide Epg Time Recording

    12. PVR Guide – EPG Timer Recording 1. EPG supported recording When you are in EPG, you can select a definite programme and press the [ ] key to record the programme automatically at the concerned time. 1.1 Recording Select the desired programme in EPG by confirming the corresponding transmitter on the channel list with “OK”, and mark the transmission in colour with the help of the arrow keys.

  • Page 30: Channel

    12. PVR Guide – EPG Timer Recording 2. Timer Recording/Reservation 2.1 Channel Press the OK key to invoke a list of the channels from which you can select the desired transmitter. Press OK again to confirm your selection. 2.2 Filename Here you can assign a filename for the transmission to be stored.

  • Page 31: Trouble-Shooting Guide

    13. Trouble-shooting guide No Function Note the position of the mains switch and switch the unit on if necessary (5.1 Operating element, Rear side of device, Page 46, Item 8). No antenna signal (no signal indication on the device and via the signal indications in the OSD): 1.

  • Page 32: Satellite Glossary

    14. SAT lexicon – Explanations of technical terms 22 kHz pulse: This pulse, generated by the receiver, is used to control switches or to switch Universal LNBs to the digital range. Analogue programmes: In comparison with digital signals, analogue signals require a considerably greater quantity of information. With the constantly increasing range of programmes, the bandwidths available would no longer suffice in the long term.
  • Page 33 14. SAT lexicon – Explanations of technical terms Transfer switch: Transfer switches (sometimes integrated into multi-switches) are required to fan-in SAT and terrestrial signals. These must be separated again by “reversed” transfer switches or SAT connection boxes. Reception frequency: As with VHF reception, each satellite programme has a reception frequency. In contrast to tuning a radio transmitter, further settings are necessary (polarisation, DiSEqC/22kHz/LO frequency)! If e.g.

  • Page 34: Noise Figure

    14. SAT lexicon – Explanations of technical terms Multi-switches: Multi-switches are used in SAT distribution systems (from 3 subscribers/receivers). Multi-switches have at least 2 LNB connections for 1 double LNB (horizontal 18 V and vertical 13 V, possibly terr. input). In digitally compatible or Multifeed systems, at least 4 LNB inputs are required: horizontal 18 V, vertical 13 V, horizontal 18 V + 22 kHz and vertical 13 V + 22 kHz.
  • Page 35 14. SAT lexicon – Explanations of technical terms SCART: 21-pin plug standard for bidirectional image and sound transmission. Switching voltages and data can also be transmitted. 10-pin scart cables are sufficient for a satellite receiver or VHS video recorder. If a decoder or Super-VHS video recorder is used, 21-pin scart cables must be used! There are 3 common standards, which must be set on the video recorder or television so that the picture signal of the SAT receiver can be transmitted faultlessly: FBAS (setting on TV/video e.g.

  • Page 36: Technical Data

    15. Technical Data DEMODULATOR SUPPORTS Input symbol rate: 2-45 Msps FEC, 1 / 2, 2 / 3, 3 / 4, 4 /5, 5 / 6, 7 / 8 QPSK. RF INPUT Frequency range : 950MHz - 2150 MHz RF Loop through Signal level: -25 to -65dBm LNB polarisation:...

  • Page 37: Service

    SM ELECTRONIC GmbH & Co. KG Waldweg 2 D-22145 Stapelfeld/Hamburg Internet: www.skymaster.de E-Mail: info@sm-electronic.de Subject to technical changes ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. 39743...

  • Page 38: Notes

    17. Notes 39743...
  • Page 39 17. Notes 39743...
  • Page 40 99039743-03/2004...
