Summary of Contents for Skymaster DCX 10 CI

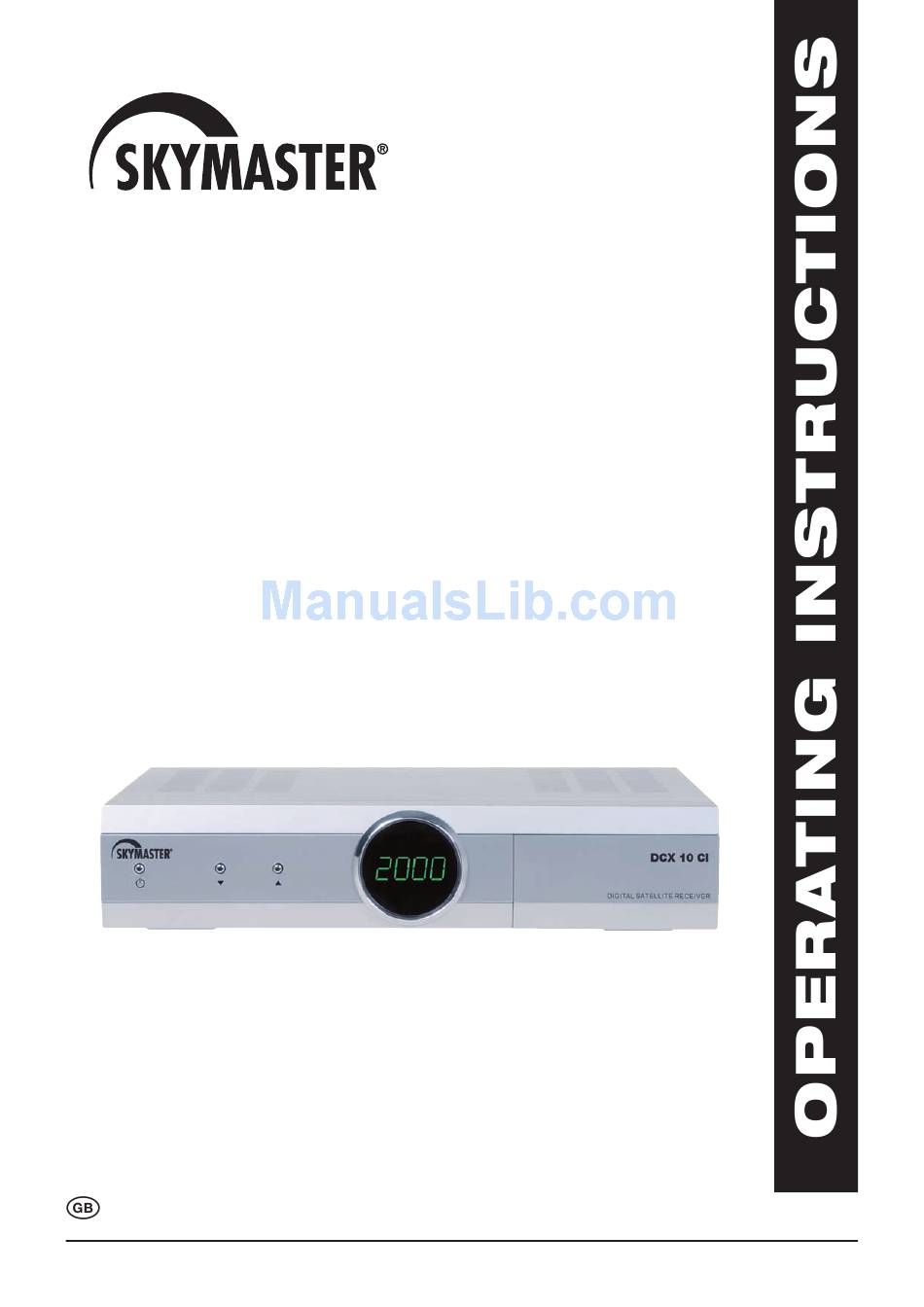

- Page 1 Digital Satellite Receiver DCX 10 CI 39615...
- Page 2 DCI 10 CI AC3/SURROUND DISH 230 V...
-
Page 4: Table Of Contents
® DCX 10 CI is designed to receive uncoded digital TV, but can also receive coded channels (e.g. Arena, ORF) if a respective Cryptoworks smart card is used. In order to decode further channels, the device has been equipped with a CI interface (CAM module and Smart-card required). -
Page 5: Safety Information
ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. SM Electronic GmbH hereby declares that Article No. 39615 complies with the basic requirements and other relevant regulations of directives 89/336/EWG and 73/23/EWG. -
Page 6: Configuration And Operation
5. Configuration and Operation After initial start-up or after resetting the factory default setting, please select the default setting for Germany or Austria. This sets the channel lists and decoding system for the selected country. 5.1 Prior to Configuration Information: A menu is a text field which appears on the TV screen. -
Page 7: Antenna Setup
5. Configuration and Operation 5.2.2 Antenna Setup Select the option “Antenna Setup” in the “Setup Menu” and press the OK button. A window with the following menu items appears on the screen. A value can be set for these items: “SAT”, “LNB Frequency”, “22kHz Tone”, “DiSEqC”, “LNB Power”... -
Page 8: Motor Control
5. Configuration and Operation Motor Control It is possible to select various factory-set satellites under the menu item “Satellite”. The preset transponders are displayed in the following order under “Transponder”: Transponder Number, Frequency, Polarity (V or H) and Symbolrate. It is possible to change the position of your motor via the “Move” function. Use the left and right-hand arrow buttons for this task. -
Page 9: Channel Search
5. Configuration and Operation 5.2.3 Channel Search Select the option “Channel Search” in the “Setup Menu” and press the OK button. A window with the following menu items appears on the screen. A value can be set for these items: “Satellite“, “Tune Method”, “Transponder”, “Frequency”, “Symbolrate”, “Polarity”, “FEC”, “Function”... -
Page 10: Setup Lock/Pin
5. Configuration and Operation 5.2.4 Setup LOCK/PIN Select the option “Setup Lock/PIN” in the “Setup Menu” and press the OK button. A window with the following menu items appears on the screen. Subsequently carry out the setting for “Menu Lock”. It is possible to change your PIN under the menu item “Change Password”. -
Page 11: Setup Via The Main Menu
5. Configuration and Operation 5.3 Setup via the Main Menu It is possible to access the following menu options via the main menu: “Program Guide“, “Sort Programs”, “Language”, “Edit Channels”, “Scramble System”, “About Version”. • Press the MENU button. • Scroll up and down the list via the CH buttons. -
Page 12: Sort Programs
5. Configuration and Operation 5.3.2 Sort Programs Select the option “Sort Programs” in the “Main Menu” and press the OK button. The following window appears on the screen: It is now possible to access the channels which have been sorted alphabetically •... - Page 13 5. Configuration and Operation Select favourites Use the CH / , Vol buttons and the OK button to select the respective channel in the favourite column. Then use the CH buttons and the OK button to allocate the channel in the category overview which has just appeared.
-
Page 14: Scramble System
5. Configuration and Operation 5.3.5 Scramble System Use your receiver to enjoy not only free-to-air programs but also ones coded with Cryptoworks (if you possess a smart card from a program provider). Additionaly the receiver contains a CI slot for using crypt system modules different. -
Page 15: About Version / Software Update
5. Configuration and Operation 5.3.6 About Version / Software Update Move the cursor in the “Main Menu” over the option “About Version” and press the OK button. A window appears on the screen with details about the model name, build date and the application version. - Page 16 5. Configuration and Operation - Favourites List Press the FAV button while watching TV or listening to the radio to access a list with your favourite channels or stations (TV or radio). If favourite channels/stations have not been entered into a respective list (see above), there will be no reaction on the screen.
-
Page 17: Troubleshooting
6. Troubleshooting There can be various reasons for problems during device operation. Please observe the following information when troubleshooting. Problem Possible Reason Remedy Front LED display does not light up. Mains plug not connected. Connect the plug to the mains socket correctly. No picture or sound. -
Page 18: Performance Features
E-Mail: info@sm-electronic.de Subject to technical changes ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. Waste electrical and electronic equipment is classed as recyclable waste and does not belong in domestic refuse! We therefore request you to actively support the conservation of resources and environmental protection and to dispose of this device at responsible take back points –... - Page 19 GB 17...
- Page 20 99039615-BDA-GB-10/2006...
