- Page 1 Model: Touch Duo Model: PRT2-TS / PRT2-NTS EU...
-

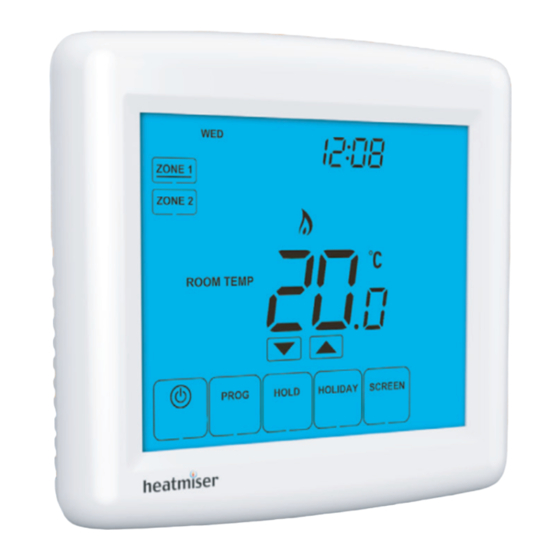

Page 2: Product Image
Model: Touch Duo Model: Touch Duo TouchScreen Series TouchScreen Series Touch Series... -
Page 3: Table Of Contents
Table Of Contents Temperature Control Product Image Temperature Hold Table of Contents Holiday Programming What is a Programmable Room Thermostat? Frost Protection Installation Procedure Heating ON/OFF LCD Display Optional Features Explained 19-20 Setting the Clock Adjusting the Optional Settings Temperature Display Optional Settings - Features Table Comfort Levels Explained Re-calibrating the Thermostat... -
Page 4: What Is A Programmable Room Thermostat
How quickly the room heats up depends on the design & size of the heating system. down. Setting a programmable room thermostat to a lower temperature will result in the room being controlled at a lower temperature, and saves energy. chosen, and then leave it alone to do its job. Touch Series TouchScreen Series... - Page 5 The best way to do this is to set the room thermostat to a low temperature – say 18°C , and then turn it up by 1°C each day until you are comfortable with the temperature. You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.
-
Page 6: Installation Procedure
Terminate the thermostat as shown in the diagrams on page 25 of this booklet. Step 3 Screw the thermostat back plate securely into the back box. Step 4 Clip the front of the thermostat back onto the thermostat back plate. Touch Series TouchScreen Series... - Page 7 Model: Touch Duo Model: PRT2-TS / PRT2-NTS EU...
- Page 8 Touch Series TouchScreen Series...
-
Page 9: Lcd Display
LCD Display Day Indicator - Displays the day of the week. Holiday Indicator - Displayed when the thermostat is in Holiday mode. Temperature Hold - Displayed when the thermostat is in Hold mode. Clock - Displays time in normal operation, time left in hold or days left in holiday mode. -
Page 10: Setting The Clock
Use the Day key to set the day of the week ..........• • Press DONE to confirm and exit ..............................Hours Hours Minutes Minutes Change Minutes Change Minutes Change Hours Change Hours Touch Series TouchScreen Series TouchScreen Series... -
Page 11: Temperature Display
Temperature Display measurement and the target temperature you have set. Room Temperature SET Temperature This is the current room temperature. This is the temperature you are trying to achieve in your home. keys allow you to view and control each zone independently. The zone that is currently selected appears underlined on screen. -
Page 12: Comfort Levels Explained
17°C 17°C Weekend Level Weekend Level Time Time Temp Temp Wake Wake 09:00 09:00 21°C 21°C Leave Leave 22:00 22:00 16°C 16°C Return Return --,-- --,-- --°C --°C Sleep Sleep --,-- --,-- --°C --°C Touch Series TouchScreen Series TouchScreen Series... - Page 13 • Select the zone to be programmed ............• Press PROG ...................... • Select WAKE ....................• Use the Up/Down keys to set the time for WAKE period ....• Use the Up/Down keys to set the temperature ......... • Repeat these steps for the LEAVE, RETURN &...
-
Page 14: Clean Screen
To cancel, press the bottom right corner of the display again for 10 secs. To cancel, press the bottom right corner of the display again for 10 secs. Keypad Lock Indicator Keypad Lock Indicator Touch Series TouchScreen Series TouchScreen Series... -
Page 15: Temperature Control
Temperature Control keys under the temperature display allow you to adjust the set temperature. When you press either of these keys, you will see the temperature and the word SET appear on screen. Note: This new temperature is maintained only until the next programmed comfort level. At this time, the thermostat will revert back to the programmed levels. -
Page 16: Temperature Hold
Hold Temperature Hold Temperature To cancel a Temperature Hold, follow the same steps but reduce the time to 00:00. To cancel a Temperature Hold, follow the same steps but reduce the time to 00:00. Touch Series TouchScreen Series TouchScreen Series... -
Page 17: Holiday Programming
Holiday The Holiday function reduces the set temperature in your home to the frost protection temperature setting (see page 19). The thermostat will maintain this temperature for the duration of the holiday and will then automatically return to the program mode on your return. •... -
Page 18: Frost Protection
Should the heating be turned on whilst in frost mode, the flame symbol will be displayed. displayed. To cancel the frost protect mode, press the To cancel the frost protect mode, press the key once. key once. Frost Protection Mode Enabled Frost Protection Mode Enabled Touch Series TouchScreen Series TouchScreen Series... -
Page 19: Heating On/Off
temperature but the thermostat remains active. To turn the thermostat OFF completely, press and hold the Power key ....To turn the thermostat back ON, press the Power key once ........Thermostat completely OFF Thermostat powered ON *See Feature 3 on page 19 Model: Touch Duo Model: PRT2-TS / PRT2-NTS EU... -
Page 20: Optional Features Explained
Feature 06 – Communication Address: This setting is used when you have connected Feature 06 – Communication Address: Not used on this Model. your thermostat to a network system. Each thermostat on the network must have a unique communication address. This can be set from 01-32. Touch Series TouchScreen Series TouchScreen Series... - Page 21 Feature 07 – Temperature Up/Down Limit: This function allows you to limit the use of the up and down keys. This limit is also applicable when the thermostat is locked and so allows you to give others limited control over the heating system. Feature 08 –...
-
Page 22: Adjusting The Optional Settings
(shown on page 22) and then use the Up/Down keys in the center to adjust the setting ..................center to adjust the setting ..................• • Press DONE to confirm settings and exit ............Touch Series TouchScreen Series TouchScreen Series... -
Page 23: Optional Settings - Features Table
Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Temperature Format 00 = C, 01 = F (°C = Default) - 3.0 C (1 C = Default) Frost Protect 00 = Disabled, 01 = Enabled (01 = Default) Frost Protection Temperature - 17 C (12 C = Default) -
Page 24: Re-Calibrating The Thermostat
Press the Power key once to turn the thermostat back ON .......... Press the Power key once to turn the thermostat back ON .......... Calibration Temperature Setting Calibration Temperature Setting Set Icon Set Icon Touch Series TouchScreen Series TouchScreen Series... -
Page 25: Factory Reset
Factory Reset The thermostat has a reset function to restore all settings to their factory defaults. To perform a factory reset, follow these steps. • Press and hold the SCREEN key ..................• Once all of the icons on the screen have appeared press DONE ......•... -
Page 26: Error Codes
E0 = The internal sensor has developed a fault. You should contact your thermostat retailer for assistance. Zone 2 E0 = The remote air sensor has either not been connected, has been wired incorrectly or has developed a fault. Error Number Touch Series... -
Page 27: Wiring Diagram
Wiring Diagram Touch Duo with 2 Heating Zone Valves Heating Valve Zone 1 Heating Valve Zone 2 To Boiler S/L To Boiler S/L Zone 2 Probe Neutral Live Supply In A1 A2 85-230V AC Max Load 3 Amps P/L = Permanent Live Z2 Room 230VAC Sensor... - Page 28 Want More Information? Call our support team on: +44 (0)1254 669090 www.heatmiser.com Twitter: @heatmiseruk Facebook: facebook.com/thermostats Series Rev 2.0...
