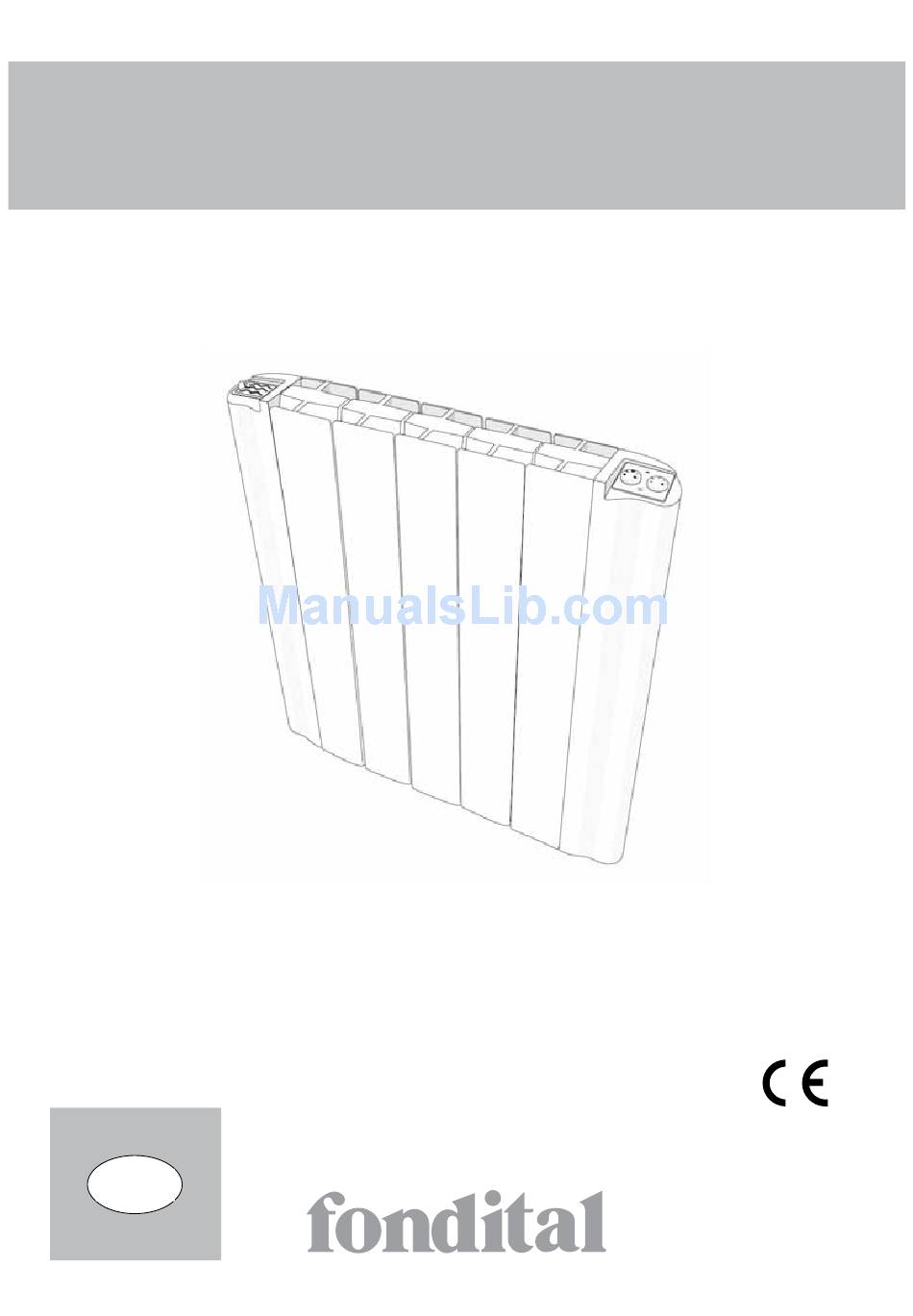

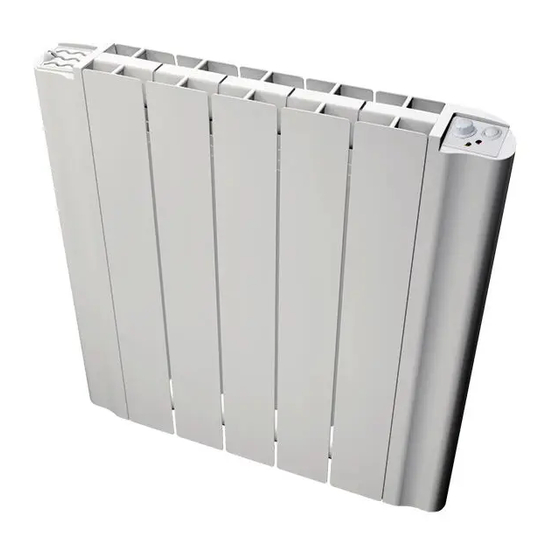

- Page 1 IST 03 F 048 - 01 INSTALLATION AND MAINTENANCE MANUAL Alcor FA Aluminium electric radiators with heat transfer fluid...
-
Page 2: Table Of Contents
Dear customer, Thank you for choosing our product. Read this manual carefully before installing your radiator, as it provides useful information for installation, use and proper maintenance of the appliance. Remember that this manual must accompany the radiator should it be moved to a different installation location. THE PACKAGE INCLUDES: Aluminium radiator fitted with a thermostat with electronic regulation, kit made up of three mounting brackets with wall plugs and instruction manual. -
Page 3: Characteristics
On the left-hand side there is a receptacle for distilled water used to humidify the environment. NB: All Fondital radiators are manufactured with an identifying label which guarantees their traceability. This label certifies that the appliance complies with European directives and electrical standards. -
Page 4: Warnings
WARNINGS A label on the side of the radiator contains the symbol shown here. The meaning of this symbol is: In order to avoid overheating the appliance, DO NOT COVER THE RADIATOR with clothing, pieces of cloth or other objects. The radiator must never be: - partially or totally covered - in direct contact with or a short distance from curtains, furniture, etc. - Page 5 4.1. Mounting the radiator to the wall The radiator can be mounted on the wall using the mounting brackets included with the appliance. The mounting system consists of: When mounting, follow the steps illustrated below: Number of sections 3/350W 5/600W 6/800W 7/1000W 9/1200W...
- Page 6 The step shown in illustration 6 can only be considered finished when the lower screw has been completely tightened and the radiator is firmly fixed to the wall, with no possible movement. The minimum distance between the radiator and the floor must be 120 mm in all cases.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS IMPORTANT During installation, maintenance and cleaning, the appliance must be disconnected from the power supply. The Vantage Electric Radiator must be connected only to a 23.0/240v AC power supply. A multi-pole circuit breaker must be installed. The distance between the contacts must be at least 3. mm. The appliance’s power circuit must be protected by a high sensitivity differential protection device. -
Page 8: Regulation And Programming
ADJUSTMENT AND PROGRAMMING The control panel has two controls: the one on the left to select operating mode and the one on the right to program room temperature. Temperature control Operating mode control fig. 2 There is also a LED light which turns green when room temperature reaches the value set by the user, and red when room temperature is below set value with fed heating element. -
Page 9: Cleaning The Radiator
Summary of operating modes: Mode Description Stand-by: The receiver is in stand-by Comfort: Comfort status and the temperature which the environment must be kept at are transmitted Night-time Night-time status and the temperature which the environment must be kept at are transmitted Anti-freeze: Minimum safety temperature: a fixed value equivalent to 7ºC is transmitted Pilot wire:... -
Page 10: Troubleshooting
TROUBLESHOOTING If the appliance stops working, do not use it: disconnect from the power supply and contact only a qualified technician who is authorized to work on this type of product. This appliance has been filled with an exact quantity of mineral oil. Repairs which require opening the liquid reservoir must be made by the manufacturer, its representatives or customer service. -
Page 11: Declaration Of Conformity
FOR HEATING Models ALCOR FA manufactured by FONDITAL S.p.A. are manufactured in accordance with European directives - DIRECTIVE 2006/95/CE of 12 December 2006 on the harmonisation of the laws of Member States relating to Electrical Equipment designed for use within certain voltage limits (low voltage) - DIRECTIVE 2004/108/CE, for electromagnetic compatibility - DIRECTIVE 2002/96/CE of 27 January 2003. - Page 12 Tel. +3.9 03.65 878.3.1 - Fax +3.9 03.65 878.576 e mail: info@fondital.it - www.fondital.com The manufacturer reserves the right to modify the products as it deems necessary and useful, without affecting their basic features. Uff. Pubblicità Fondital IST 03. F 048 - 01 Settembre 2013. (09/2013.)
