EN
Dear clients,
We thank you for the purchase of one of our products and we hope it will be of your entire satisfaction.
We recommend to carefully read the manual, as they contain important indications regarding safety
instructions on the use and maintenance of the radiator.
We also advise you to keep the instructions and the invoice carefully so that you can consult them
if necessary.
THE PACKAGING INCLUDES:

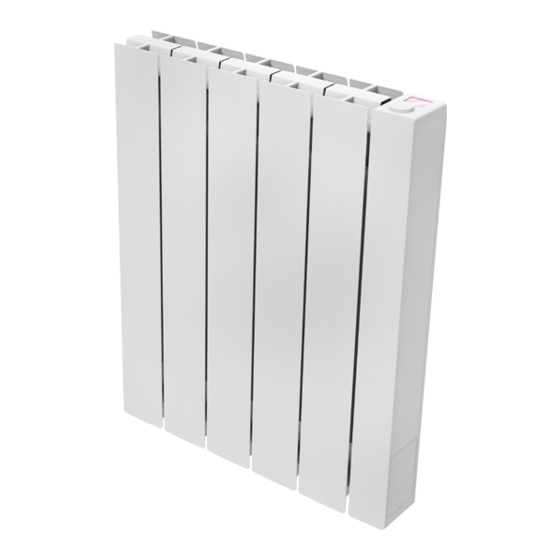

A dry inertia aluminium radiator with digital programmable thermostat, a mounting bracket, an instructions
manual.
PRESENTATION
The radiator consists of a EN AB 46100 aluminium alloy body. The inner heating element is an electric resistance
embedded in a ceramic body.
A safety limiter limits the maximum temperature that the radiator can reach even in case of failure.
The radiator can be programmed on a daily and weekly basis.
NOTE: all radiators are provided with an identification label to ensure traceability. This label certifies
compliance with the applicable EU directives and electrical standards.
The installation must be carried out in accordance with the standards and instructions in this manual.
SUMMARY
1. WARNINGS .................................................................................................................................................................................... Page. 17
2. FEATURES ...................................................................................................................................................................................... Page. 18
3. ELECTRICAL CONNECTIONS ................................................................................................................................................... Page. 18
3.1. SPECIFICATIONS FOR INSTALLATION IN THE BATHROOM................................................................................... Page. 19
4. INSTALLATION OF THE DEVICE .............................................................................................................................................. Page. 19
4.1. WALL MOUNTING OF THE RADIATOR ......................................................................................................................... Page. 20
5. USE .................................................................................................................................................................................................. Page. 22
6. RADIATOR CLEANING ............................................................................................................................................................... Page. 27
7. MALFUNCTIONS ......................................................................................................................................................................... Page. 28
8. WARRANTY ................................................................................................................................................................................... Page. 28
9. ENVIRONMENT ............................................................................................................................................................................ Page. 29
10. DECLARATION OF CONFORMITY ....................................................................................................................................... Page. 29
11. INFORMATION REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS ........................................................... Page. 31
12. RANGE AND SIZES ................................................................................................................................................................... Page. 31
EN_16
INSTALLATION AND MAINTENANCE MANUAL
Advertisement
Table of Contents
Related Manuals for Fondital eBLITZ Core
Summary of Contents for Fondital eBLITZ Core
-
Page 1: Table Of Contents
INSTALLATION AND MAINTENANCE MANUAL Dear clients, We thank you for the purchase of one of our products and we hope it will be of your entire satisfaction. We recommend to carefully read the manual, as they contain important indications regarding safety instructions on the use and maintenance of the radiator. -
Page 2: Warnings
1. WARNINGS REMINDERS: You will find a tag on the radiator with the following symbol. The meaning of this symbol is as follows: In order to avoid any possible overheat, DO NOT COVER THE RADIATOR. Under no circumstances should you: - cover the radiator, even partially;... -
Page 3: Features
Class II: double insulation Technical specifications of the electronics Grid voltage 230V AC 50/60 Hz Power of the heating element Mod. eBlitz Core 1000 W 1000 W Mod. eBlitz Core 1500 W 1500 W Mod. eBlitz Core 2000 W 2000 W... -
Page 4: Specifications For Installation In The Bathroom
3.1 SPECIFICATIONS FOR INSTALLATION IN THE BATHROOM The installation must comply with the applicable standards and installation regulations. The radiator is made to comply with class II with an IP24 electrical protection. Within the bathroom, the radiator can be installed in the zones 3 and 2 (see image) provided the control devices cannot be touched by the individual using the shower or the bathtub. -
Page 5: Wall Mounting Of The Radiator
4.1. WALL MOUNTING OF THE RADIATOR The radiator must be fixed to the wall using the fixing brackets supplied with the appliance. WARNING: the screws and dowels are not provided with the packaging, so please use screws and dowels that are suitable for the type of wall material the radiator is to be fixed to. - Page 6 Fit the plastic protections on the brackets (Fig. 3), position the radiator and then fully screw the lower bracket down as well (Fig. 4/5). Block the radiator and cover the brackets with the special plastic cover (Fig. 6/7): Point 6 of the procedure cannot be completed until the lower screw is tightened so that the radiator is firmly fixed to the wall and cannot be moved.
-
Page 7: Use
5. USE IMPORTANT: an abnormal smell may occur when the radiator is first switched on. This odour diminishes and tends to disappear after a few hours of use. The room should be well ventilated after the first switching on of the radiator. - Page 8 The special functions are: Open window function Adaptive start control Button lock function Consumption reading function Behaviour indicator Weekly programs 5.2.1 Description of the functions Pilot wire mode. This is the mode that allows the radiator to be controlled remotely. 1.
- Page 9 Programming mode In this mode, the ambient temperature is maintained at the Comfort or Reduced level according to the time periods predefined or programmed by the user. 1. Press the "Function” key until the corresponding icon appears on the display. 2.
- Page 10 5. Press the "+" key to activate or deactivate the function “ASC” (ON = active, OFF = deactivated). 6. Press the "function" key to confirm the previous choices. The system will automatically exit this sequence after 30 seconds and any modification will be saved. Consumption reading function This function allows you to read the consumption of the radiator expressed in kWh.
- Page 11 USE OF THE RADIATOR To switch the device on/off, press the stand-by button Warning: even if the device is in stand-by mode, it is still supplied with electricity. When the device is in standby mode, the display shows the time, the day (numbers from 1 to 7) and the standby icon.
-
Page 12: Radiator Cleaning
6. Press the "function" key to confirm the the programming choice of the first day (day 1 Monday). 7. Repeat the same operation to program the rest of the days 2 to 7. The weekly programming is now complete and remains stored as the P3 preset and can be modified by repeating the operation described above. -
Page 13: Malfunctions
7. MALFUNCTIONS In the event of a malfunction, do not use the appliance and disconnect it from the power supply. For repairs, do not open the radiator, only use authorised technicians who are allowed to work on this type of product. If the power cable is damaged, it must be replaced by the manufacturer, its service department or similarly qualified persons to avoid danger. -
Page 14: Environment
40, 25079 Vobarno (BS) Italia that ELECTRICAL RADIATORS FOR HEATING Model eBlitz Core produced by FONDITAL S.p.A. are manufactured according to European directives and European regulations: DIRECTIVE 2014/35/UE : “Low Voltage” DIRECTIVE 2014/30/UE: “Electromagnetic Compatibility” DIRECTIVE 2012/19/UE: “WEEE” DIRECTIVE 2011/65/UE: “RoHS”... - Page 15 ELECTRICAL RADIATORS FOR HEATING Model eBLITZ Core produced by FONDITAL S.p.A. are manufactured according to Regulations: Electrical Equipment (Safety) Regulations 2016 and amendments. Electromagnetic Compatibility Regulations 2016 and amendments. The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
-
Page 16: Information Requirements For Electric Local Space Heaters
11. Information requirements for electric local space heaters in accordance with Annex II, point 3.a.i.2, of the Regulation (EU) 2015/1188 of 28 April 2015 implementing Directive 2009/125/EC. eBlitz Core 1000W /1500W/2000W Model identifiers: Item Symbol Value Unit Item Unit Heat output...
