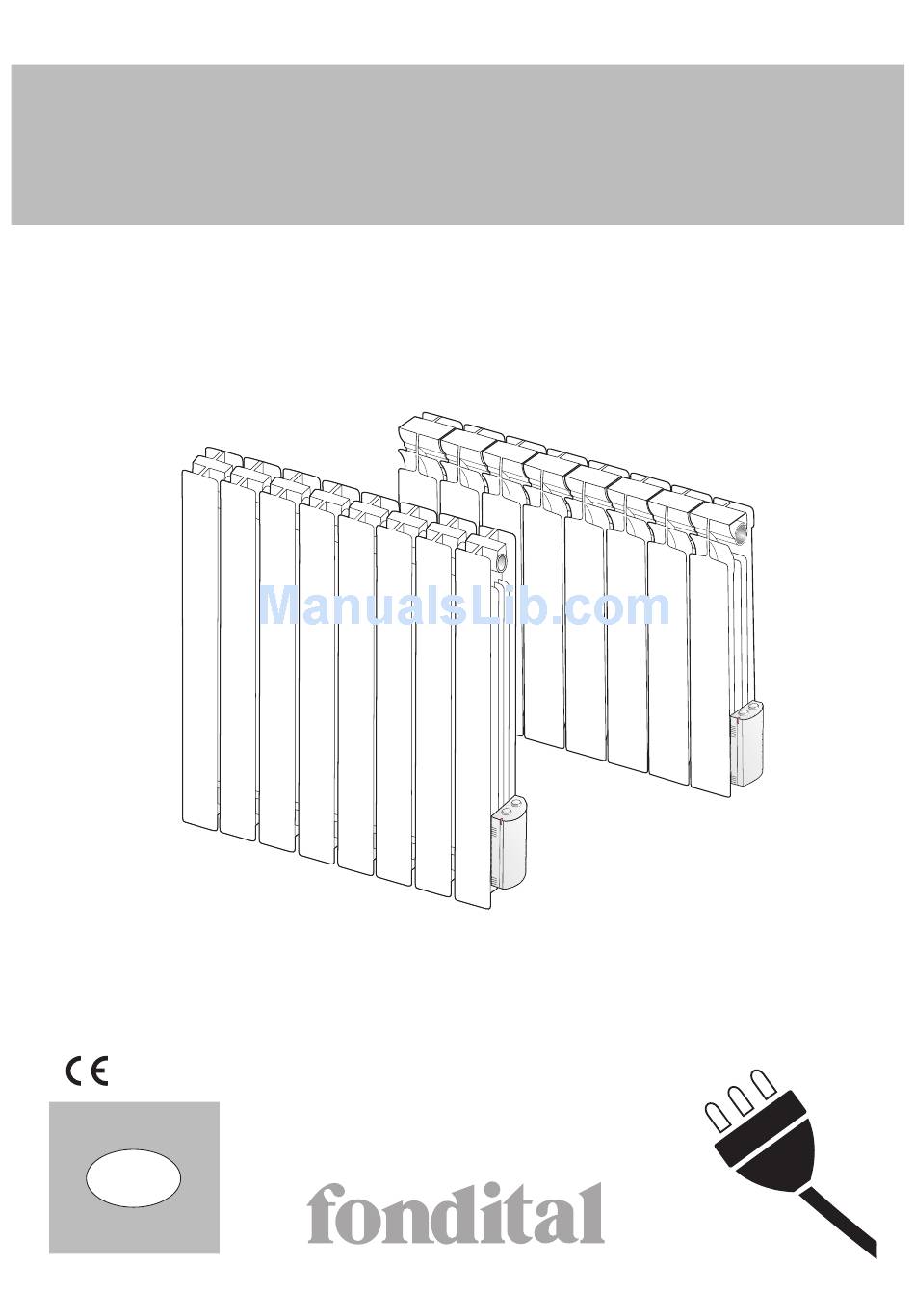

- Page 1 IST 03 F 014 - 02 INSTALLATION MAINTENANCE MANUAL BLITZ EA_ SCIROCCO DUAL EA_ Electrified aluminium radiator with heat transfer fluid...
-
Page 2: Table Of Contents
Dear customer: Thank you for choosing our product. Read this manual carefully before installing your radiator, as it provides useful information for installation, use and proper maintenance of the appliance. Remember that this manual must accompany the radiator should it be moved to a different installation location. THIS PACKAGE INCLUDES: Aluminium radiator equipped with a thermostat with electronic regulation, kit made up of three mounting brackets with wall plugs, instruction manual. -
Page 3: Characteristics
The control and regulation electronics make it possible to regulate the ambient temperature with great precision. NB: All Fondital radiators are supplied fitted with an identifying label which guarantees their traceability. This label certifies that the appliance complies with European directives and electrical standards. -
Page 4: Warnings
3. WARNINGS There is a label on the side of the radiator which contains the symbol shown on the left. The meaning of this symbol is: In order to avoid overheating the appliance, DO NOT COVER THE RADIATOR with clothing, pieces of cloth or other objects. The radiator must never be: - partially or totally covered;... - Page 5 4.1 Mounting the radiator on a wall The radiator can be mounted on a wall using the mounting brackets included with the appliance. The mounting system consists of: When mounting the appliance, follow the steps illustrated below: Number of sections Mod.
- Page 6 The step shown in illustration 6 can only be considered finished when the lower screw has been completely tightened and the radiator is firmly secured to the wall, with no possible movement. The minimum distance between the radiator and the floor must be 120 mm in all cases.
-
Page 7: Electrical Connections
5. ELECTRICAL CONNECTIONS IMPORTANT During installation, maintenance and cleaning, the appliance must be disconnected from the power supply. The appliance must be connected to a 230 Vca power supply only. Respect colours as shown in the table. Brown Phase Blue or grey Neutral Black Pilot wire... -
Page 8: Regulation And Programming
5.1 Details of bathroom installation The appliance must be installed according to current regulations and laws in force in the country of use. The radiator is class II and has IPX4 electrical protection. In bathrooms, it can be installed in areas 2 and 3 (see figure 1) on condition that the control device is not within reach of people using the shower or bathtub. -
Page 9: Cleaning The Radiator
Comfort Mode This is the normal mode for using the radiator to keep the room temperature at the programmed level. The programmed temperature depends on the position of the temperature control (knob 2). As an indication, the programmed temperature and the numbers shown on the knob correspond to the values shown in pic. 3: fig. -
Page 10: Troubleshooting
8. TROUBLESHOOTING If the appliance stops working, do not use it: disconnect from the power supply and contact only a qualified technician who is authorized to work on this type of product. This appliance has been filled with an exact quantity of heating fluid for synthesis. Repairs which require opening the liquid reservoir must be made by the manufacturer, its representatives or customer service. - Page 12 Tel. +39 0365 878.31 - Fax +39 0365 878.576 e mail: info@fondital.it - www.fondital.it The manufacturer reserves the right to modify the products as it deems necessary and useful, without affecting their basic features. Uff. Pubblicità Fondital IST 03 F 014 - 02 Febbraio 2015 (02/2015)
