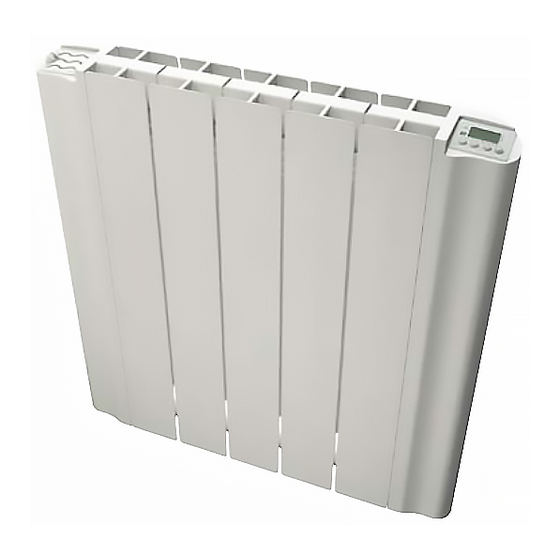

- Page 1 IST 03 F 017 - 01 INSTALLATION AND MAINTENANCE MANUAL BLITZ FD_ Aluminium electric radiators with heat transfer fluid...
-
Page 2: Table Of Contents
Dear customer, Thank you for choosing our product. Read this manual carefully before installing your radiator, as it provides useful information for installation, use and proper maintenance of the appliance. Remember that this manual must accompany the radiator should it be moved to a different installation location. THE PACKAGE INCLUDES: Aluminium radiator fitted with a thermostat with electronic regulation, kit made up of three mounting brackets with wall plugs and instruction manual. -
Page 3: Characteristics
On the left-hand side there is a receptacle for distilled water used to humidify the environment. NB: All Fondital radiators are manufactured with an identifying label which guarantees their traceability. This label certifies that the appliance complies with European directives and electrical standards. -
Page 4: Warnings
WARNINGS A label on the side of the radiator contains the symbol shown here. The meaning of this symbol is: In order to avoid overheating the appliance, DO NOT COVER THE RADIATOR with clothing, pieces of cloth or other objects. The radiator must never be: - partially or totally covered - in direct contact with or a short distance from curtains, furniture, etc. - Page 5 4.1. Mounting the radiator to the wall The radiator can be mounted on the wall using the mounting brackets included with the appliance. The mounting system consists of: When mounting, follow the steps illustrated below: Number of sections Dimension A Dimension B Dimension C...
- Page 6 The step shown in illustration 6 can only be conside- red finished when the lower screw has been comple- tely tightened and the radiator is firmly attached to the wall, with no possible movement. The minimum distance between the radiator and the floor must be 120 mm in all cases.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS IMPORTANT During installation, maintenance and cleaning, the appliance must be disconnected from the power supply. The appliance must be attached to a 230 VAC power supply only. Follow the colours indicated: Brown Phase Blue or grey Neutral Black Pilot Wire Note: The pilot wire is used only in radiators sold in France. - Page 8 5.1. Details of bathroom installation The appliance must be installed according to current regulations and laws in the country of use. The radiator is class II and has IPX4 electrical protection. In bathrooms, it can be installed in areas 2 and 3 (see figure 1) on condition that the control device is not within reach of people using the shower or bathtub.
-
Page 9: Regulation And Programming
REGULATION AND PROGRAMMING 6.1. Turning the radiator on The appliance is regulated using four keys, as shown in the figure. When the appliance is in stand-by mode, the black dot on the screen will blink. To turn the radiator on, press the ‘on/off’ key, as shown in the following figure: The radiator has various operating modes, as shown in the table on page 13. - Page 10 6.3. Programming TH and TL temperatures It is possible to programme two separate temperature levels: TH is the desired ambient temperature during operation in Comfort and Pilot Wire mode or when programming; TL is the ambient temperature in Night-time Reduction mode. These two temperature levels can be programmed using the plus and minus keys.
- Page 11 PROGRAMME DAY PROGRAMME HOUR PROGRAMME MIN. You can now assign a programme to each day of the week. When a segment appears between two times on the programming bar (at the bottom of the screen), this indicates that the TH temperature level has been selected for this period. The absence of a segment indicates that during this period, the radiator will keep the temperature at the TL level.
- Page 12 6.6. Description of operating modes 6.6.1. Programming mode In this mode, the ambient temperature remains at the TH or TL level, depending on the times set by the user. 10 12 14 16 18 20 6.6.2. Pilot Wire mode (for radiators installed in France only) This mode enables the user to control the radiator from a remote location.
-
Page 13: Cleaning The Radiator
Summary of operating modes: Mode Description Programme: Daily and weekly programming which sets the two temperature levels (Comfort and Night-time) defined by the user for each time of day Pilot wire: The temperature depends on the Pilot Wire control (for radiators installed in France only) Stand-by: The receiver is in stand-by Comfort:... -
Page 14: Troubleshooting
TROUBLESHOOTING If the appliance stops working, do not use it: disconnect from the power supply and contact only a qualified technician who is authorized to work on this type of product. This appliance has been filled with an exact quantity of mineral oil. Repairs which require opening the liquid reservoir must be made by the manufacturer, its representatives or customer service. -
Page 15: Declaration Of Conformity
FOR HEATING Model BLITZ FD_ manufactured by FONDITAL S.p.A. are manufactured in accordance with European directives - DIRECTIVE 2006/95/CE of 12 December 2006 on the harmonisation of the laws of Member States relating to Electrical Equipment designed for use within certain voltage limits (low voltage) - DIRECTIVE 2004/108/CE, for electromagnetic compatibility - DIRECTIVE 2002/96/CE of 27 January 2003 on waste from electrical and electronic equipment (WEEE). - Page 16 Tel. +39 0365 878.31 - Fax +39 0365 878.576 e mail: info@fondital.it - www.fondital.it The manufacturer reserves the right to modify the products as it deems necessary and useful, without affecting their basic features. Uff. Pubblicità Fondital IST 03 F 017 - 01 Marzo 2013 (03/2013)
