Summary of Contents for First Degree Fitness Titan Rower

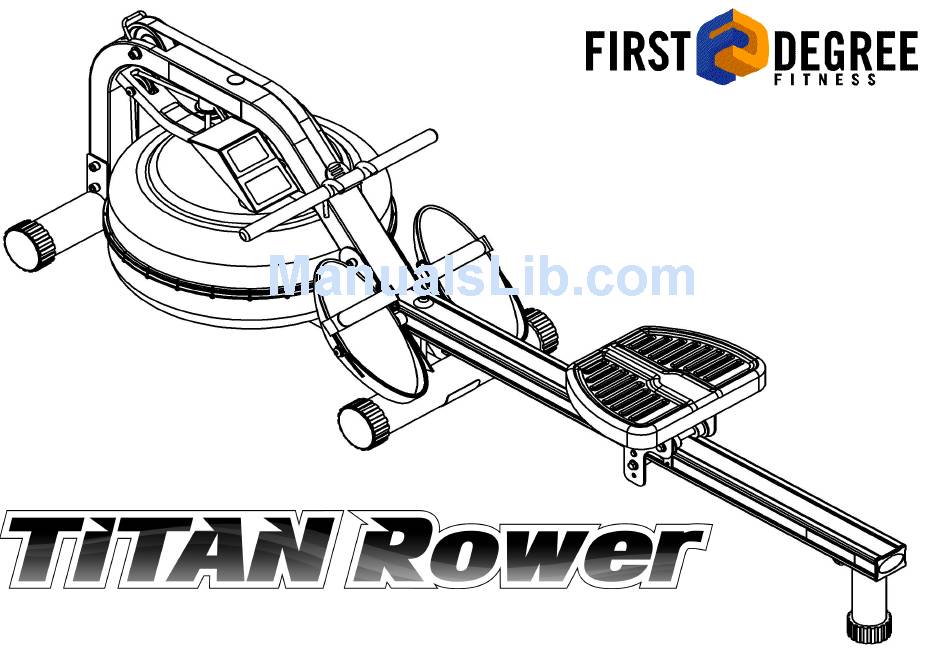

  • Page 1: Owners Manual

    www.firstdegreefitness.com Owners Manual...
  • Page 2 CAUTION 9. Parts list/Exploded Diagram. 10. Warranty. 1. The Titan Rower can stand vertically for storage. Make sure a secure location is chosen, such as the corner of a room or against a wall. 2. Keep hands and fingers away from moving parts, as in- dicated by the warning sticker on the mainframe of your www.firstdegreefitness.com...
  • Page 3 The Main box, seat rail box and parts kit Contents: will contain the following items 1. Main Frame. 2. Rower Seat 3. Seat Rail (boxed separately) 4. M10x180mm bolt (1). 5. M10 plastic dome washer (1). 6. M10 Nylock Nut (2). 7.

  • Page 4: Assembly Instructions

    Assembly Instructions: Step 3 Install rower seat onto seat rail, with widest part of seat rearward. M10x25mm bolt and Step 1 11x21x2 washer Seat Rail CAUTION Installing the seat incorrectly will result in lack of data pickup during rowing. Rear Leg Step 2 Rear Rubber end cap...
  • Page 5 Assembly Instructions: M10 Nylock Nut and 11x21x2T Washer Step 4: Install the seat rail onto the mainframe. Attach sensor lead from seat rail to main frame, then align the front seat rail holes with main- frame and install, using 1x M10x85mm bolt, 2x 11x21x2T washers and 1x M10 Nylock nut.
  • Page 6 Assembly Instructions: M10x180mm bolt and Plastic Dome cap Step 5: Install the M10x180mm Vertical seat rail bolt with the Plastic Dome cap through the top of the seat rail and secure from under- neath with M10 Washer and Nylock Nut. Note: Do not tighten the Vertical seat rail bolt.
  • Page 7 Assembly Instructions: Step 6: Install the footplate onto the rower. Tip: When mounting the footplate assembly onto the rower, it is only necessary to remove one side, and leave the other intact as shown here. Note: 2 Allen keys of the same size are provided for this portion of the assembly.
  • Page 8 Fine Tuning the Titan Rower: The Titan Rower is designed to function as a pre-stressed frame . Using the mid-leg as your guideline, tighten the vertical frame tensioning bolt until the mid leg ris- es approximately 3-5mm (1/10th-1/4 inch) off the floor. The mid leg should just touch the ground during a rowing stroke.

  • Page 9: Tank Filling And Water Treatment

    Siphon 1. Remove rubber fill plug from the top of the tank. 2. Place a large bucket of water next to the Titan rower and position siphon with the rigid hose in the bucket and the flexible hose into the tank as shown. Note: Make sure small breather valve on the top of the si- phon is closed before filling.

  • Page 10: Computer Instructions

    Computer Instructions: Instructions for use: Install the batteries, and the LCD panel will display with an audible buzz. Mode: Allows access to various settings: Enter: Press to set values. Numbers will flash. Press “Set” to fix settings. Set: Press when digits are flashing to set values upward. Can be applied for all settings with the exception of “Total Count”...

  • Page 11: How Often

    How to row? 1. Begin the stroke comfortably forward and push strongly back with your legs while keeping your arms and back straight. 2. Begin to pull your arms back as they pass over your knees and continue the stroke through to completion rocking slightly back over your pelvis.

  • Page 12: Detaching The Rower Belt

    Detaching the rower belt: Reattaching the rower belt: 1. To detach belt, simply pull beyond the range of the nor- 1. Begin reattaching the rower belt by threading mal rowing stroke until the belt detaches from the belt around the rower belt pulley with the Velcro side bungee pulley.
  • Page 13 Rower handle Bungee pulley Belt/Bungee pulley Bungee shock cord 3. Wind the rower belt onto the belt/bungee pulley un- 4. Rethread the bungee shock cord (on opposite side of til the rower handle is as it’s furthest forward position. the idle wheel) back through the bungee pulleys and tie off at the attachment point.

  • Page 14: Removing The Bungee Shock Cord

    Removing the bungee shock cord: Upper frame plug Upper frame hole Belt/ bungee pulley Bungee shock cord Once bungee cord and upper frame hole are aligned, push the bungee cord Bungee attachment point up and through the frame as shown First, move the rowing handle to it’s farthest forward point on the mainframe, then cut the plastic end tie and follow the drawing above for bungee removal.

  • Page 15: Replacing The Bungee Shock Cord

    Replacing the bungee shock cord: Bungee shock cord Bungee attachment point Pull Bungee Reinstall the shock cord through the upper frame, along the opposite side of through until idle wheel, through the mid frame and lower bungee pulleys and then tie off seated securely with plastic tie wrap to correct tension.

  • Page 16: Troubleshooting

    Only tighten bolt until mid leg begins to lift slightly from the ground. Refer to “Fine tuning the Titan Rower ” for details. The Titan Rower computer does not Batteries installed in- Reinstall batteries in correct position and try illuminate after battery installation.

  • Page 17: Parts List

    Parts list: KEY QTY PART NO. DESCRIPTION KEY QTY PART NO. DESCRIPTION Parts List 90701 Seat - LS-E22 90905 Footplate Bolt M8x15 65121 Seat Frame Left 90906 Spring Washer M8x10mm 65121 Seat Frame right 90907 Foot Strap Velcro 90705 Inner Axle Bushing (Short) 90402 Rear Leg Internal Mounting Bracket 60707...
  • Page 18 Parts list: KEY QTY PART NO. DESCRIPTION KEY QTY PART NO. DESCRIPTION 60903 Velcro Strip 61001 Tank Bonding Strip 3M-VHB 60108 Bungee Pulley Spacer 60147 Washer O Ring 60109 Bungee Pulley 60148 Computer Lead 60110 Belt Pulley Spacer 60150 Nylon Main Shaft Bushing - Upper 60111 Belt Pulley 100mm (inc.
  • Page 20 Metal Frame – 5 Year Limited Warranty First Degree Fitness will repair or replace the metal Main Frame of the Rower should it fail due to any defect in materials or workmanship within 5 years of the original purchase. Warranty does not apply to frame coating.
  • Page 21 All Other Components (of a wearing nature) – 1 Year Limited Warranty First Degree Fitness will repair or replace any component should it fail due to any defect in materials or workmanship within 1 year of the original pur- chase.
