Installation and maintenance manual

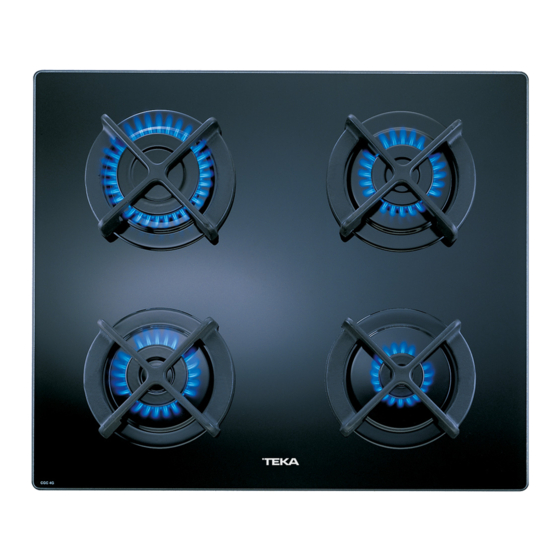

COCINAS CRISTAL-GAS CG.1 4G / CG.1 3G. 1P
CG Lux-60 4G. / CG Lux-70 4G. / CG Lux-70 4G AI AL
CG Lux-70 5G. / CG Lux-60 4G. Al AL / CG Lux-70 5G. Al AL
CG Lux-70 5G AI TR AL / CG Lux-70 5G TR / CGC 4G / CGC 4G AI AL
CG Lux-75 2G AI TR AL / CG Lux-86 3G AI TR AL
CG Lux-86 2G 1P AI TR AL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG. 1 4G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teka CG. 1 4G

Summary of Contents for Teka CG. 1 4G

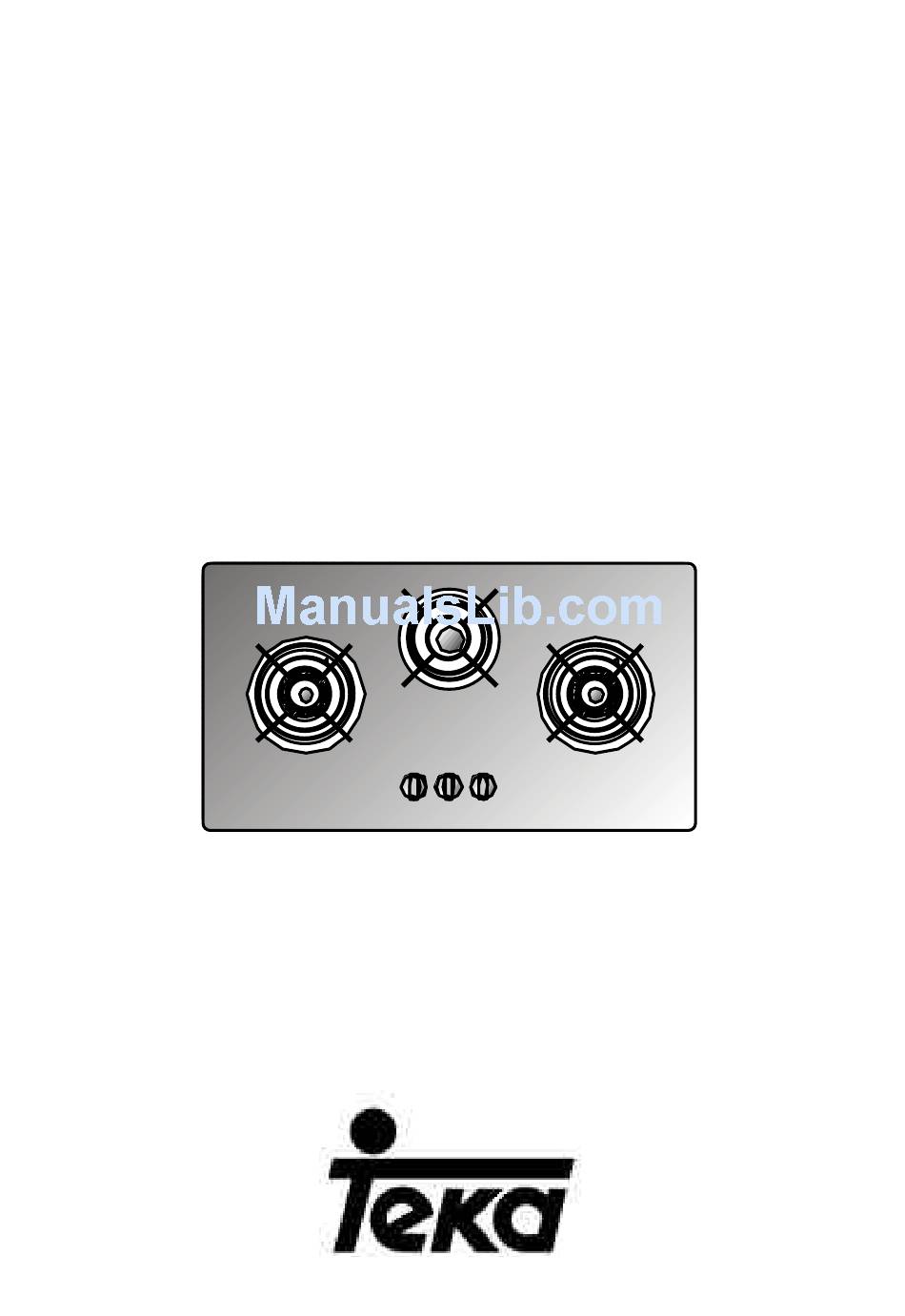

  • Page 1 Installation and maintenance manual COCINAS CRISTAL-GAS CG.1 4G / CG.1 3G. 1P CG Lux-60 4G. / CG Lux-70 4G. / CG Lux-70 4G AI AL CG Lux-70 5G. / CG Lux-60 4G. Al AL / CG Lux-70 5G. Al AL CG Lux-70 5G AI TR AL / CG Lux-70 5G TR / CGC 4G / CGC 4G AI AL CG Lux-75 2G AI TR AL / CG Lux-86 3G AI TR AL CG Lux-86 2G 1P AI TR AL...
  • Page 2 These hob models can be installed in the This modern, functional and practical applian- same kitchen units as TEKA ovens and control ce has been built using top quality materials panels. which are subjected to strict quality contro l s throughout the manufacturing process.

  • Page 3: Table Of Contents

    Contents Introduction Page 4 Description of the Appliance Installation Positioning of the hobs Positioning of the oven Anchoring of the hob Connecting the hob to the oven or the control panel Gas Connection Electrical Connection Gas transformation Technical Information Dimensions and powers Technical Data Rating Plates Use and Maintenance...

  • Page 4: Introduction

    Introduction Description of the Appliance CG. 1 4G (see drawing 1) CG.1 3G. 1P. (see drawing 2) 1 Auxiliary burner of 860 Kcal/h - 1 kW. 1 Auxiliary burner of 860 Kcal/h - 1 kW. 2 Semi fast burner of 1,500 Kcal/h - 2 High -powe r hotp late of 1,5 00 W, 1.75 kW.
  • Page 5 CG-Lux-60 4G. and CG Lux-60 4G AI AL ( s e e CGC 4G and CGC 4G AI AL (see drawing 4) drawing 3) 1 Fast burner of 2,580 Kcal/h - 3 kW. 1 Fast burner of 2,580 Kcal/h - 3 kW. 2 Semi fast burner of 1,500 Kcal/h - 2 Semi fast burner of 1,500 Kcal/h - 1.75 kW.
  • Page 6 CG-Lux-70 5G., and CG Lux -70 5G AI AL (See CG-Lux-70 5G TR and CG Lux -70 5G AI TR AL drawing 5) (See drawing 6) 1 Fast burner of 2,580 Kcal/h - 3 kW. 1 Fast burner of 2,580 Kcal/h - 3 kW. 2 Fast burner of 2,580 Kcal/h - 3 kW.
  • Page 7 CG-Lux-70 4G and CG Lux -70 4G AI AL CG-Lux-75 2G AI TR AL (See drawing 8) (See drawing 7) 1 Triple ring burner of 3,010 Kcal/h - 1 Fast burner of 2,580 Kcal/h - 3 kW. 3.5 kW. 2 Semi fast burner of 1,500 Kcal/h - 2 Triple ring burner of 3,010 Kcal/h - 1.75 kW.
  • Page 8 CG-Lux-86 3G AI TR AL (See drawing 9) CG-Lux-86 2G 1P AI TR AL (See drawing 10) 1 Triple ring burner of 3,010 Kcal/h - 1 Triple ring burner of 3,010 Kcal/h - 3.5 kW. 3.5 kW. 2 Triple ring burner of 3,010 Kcal/h - 2 Triple ring burner of 3,010 Kcal/h - 3.5 kW.

  • Page 9: Installation

    Installation Important I N S TA L L ATION AND ADJUSTMENT MUST BE CARRIED OUT BY AUTHORISED TECHNICAL PERSONNEL ACCORDING TO THE APPLICABLE INSTALLATION REGULATIONS. Positioning of the hobs Depending on the model to be installed an aper- t u re will be made in the worktop, of the dimen- sions specified in the drawing 11.

  • Page 10: Positioning Of The Oven

    Positioning of the oven In the cases of the models CG.1 4G and CG.1 3G 1P, the clamps must be fitted as shown in the picture 13, depending on the thickness of See the applicable manual. the furniture. Anchoring of the hob For worktops 30 mm thick or less, use the M5 Once the hob position has been dimensioned, s c rews supplied as complementary fixation by...

  • Page 11: Connecting The Hob To The Oven Or

    Hob models CG-Lux-75 2G and CG-Lux-86 3G If the unit below the hob is to be used to store a re installed in the same way as the CGC 4G p roducts it must be situated at a distance of at AI AL, except for the staples which are least 10 cm below the hob.

  • Page 12: Gas Connection

    This hob comes complete with knob covers for all TEKA ovens except for models RT-600 and RT-800. For these two models, order the knob covers in your nearest TEKA establishment or official technical service.

  • Page 13: Electrical Connection

    CG.1 3G. 1P, the re p l a- tial to check that neither the gas hose nor the cement must be carried out by TEKA’s off i c i a l electric cable is in contact with hot parts of the...

  • Page 14: Gas Transformation

    • Use a no 7 tubular spanner to remove Gas transformation th e no zz les a nd re pl ac e th em wi th th e c o rresponding alternative nozzles. Take care Important! to tighten the nozzles well so as to avoid the risk of gas leaks.
  • Page 15 TEKA INDUSTRIAL, S.A. will not accept responsibility for incorrect hob operation if the gas transformation and regulation of minimum b u rner settings are not carried out by TEKA’s official Technical Ser vice.

  • Page 16: Technical Information

    Technical information Dimensions and powers Models CG.1 4G CG.1 3G. 1P. CG Lux-60 CG Lux-60 CGC 4G CG Lux-70 4G AI AL AI AL Dimensions in mm Length Width Depth Glass thickness Worktop dimensions mm. Length Width 3.5 kW Triple ring gas burner 3 kW fast burner...
  • Page 17 Models CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-75 CG Lux-86 CG Lux-86 4G AI AL 5G AI AL 5G AI TR AL 5G. TR 2G AI TR AL 3G AI TR AL 2G 1P AI TR AL Dimensions in mm Length Width...

  • Page 18: Technical Data

    Technical Data COMMON CHARACTERISTICS TO THE ELEC- c) “This appliance must not be connected to a device for the evacuation of combustion pro- TRIC HOTPLATES AND AUTOMATIC LIGHTING ducts. Its installation and connection will be MODEL c a rried out according the installation rules in for- ce.
  • Page 19 COMMON CHARACTERISTICS TO EVERY MODEL N.B.: All the hob models re f e rred to in this manual have hot zones during or after their use and can cause burns. Care must be taken when handling these hobs b e f o re installation as there may be ro u g h zones or corners which may be dangerous.

  • Page 20: Rating Plates

    T E K A INDUSTRIAL, S.A. T E K A INDUSTRIAL, S.A. SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG.1 4G CG LUX 60 4G Mod. Clase Mod. Clase ∑ Qn ∑ Qn Nº Nº 7.50 7.50 (P.C.S.) (P.C.S.) G-110 Vr G-20 Vr G-110 Vr G-20 Vr...
  • Page 21 T E K A INDUSTRIAL, S.A. T E K A INDUSTRIAL, S.A. SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG LUX 70 5G AI AL CG LUX 70 5G Mod. Clase Mod. Clase CG LUX 70 5G AI ∑ Qn ∑ Qn Nº...
  • Page 22 T E K A INDUSTRIAL, S.A. T E K A INDUSTRIAL, S.A. SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG LUX 70 4G AI AL CGC 4G Mod. Clase Mod. Clase CG LUX 70 4G AI ∑ Qn ∑ Qn Nº Nº...
  • Page 23 T E K A INDUSTRIAL, S.A. T E K A INDUSTRIAL, S.A. SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG LUX 70 5G AITR A L CG LUX 75 2G AI TR A L Mod. Clase Mod. Clase CG LUX 70 AI TR CG LUX 75 2G AI TR ∑...

  • Page 24: Use And Maintenance

    Use and Maintenance N.B. Each time you assemble a burner, check Special requirements that all of its component parts fit together before first use c o rre c t l y. A badly positioned component may cause the hob glass to overheat. Before connecting the hob to the power supply check that the voltage and frequency are tho- Lighting of burners...
  • Page 25 For hobs CG Lux-60, CG Lux-70, CG Lux-75 • Check that the control knobs are in the appropriate position. and CG Lux-86, which have automatic igni- • Open the gas flow key or the gas cylinder tion and a safety feature, the following steps key.

  • Page 26: Switching On Electric Hotplates

    Disconnected any pan, for five minutes at power position 2. 135 W. TEKA Industrial, S.A. will accept no re s p o n s i- 165 W. bility for possible inaccuracies contained in 250 W.

  • Page 27: Components Of A Safety System

    Components of a Safety System On all the hobs which incorporate the safety f e a t u re (models with initials AL), the gas cut- o ff system is comprised formed by the follo- wing elements: (See drawing 26). •...
  • Page 28 (‘0’), turn of f the gas connection and disconnect the electri- Pan support supplement city supply. Contact your TEKA Te c h n i c a l Service.

  • Page 29: Using Your Hob

    Suggestions and Recommendations hob, in order to prevent deflected flames Hints for the Correct Usage f rom damaging worktops with plastic sur- of Burners f a c e s . • Do not use large burners with pans of Hints for the Correct Usage small diameters as par t of the flame will of Electric Hotplates be deflected around the outside of the...

  • Page 30: Reminder

    Reminder Do not use small pans on large burners, as the fla- me will be dissipated. Use appropriately sized pans for each burn e r, thus making the best use of the heat. Do not place pans unevenly on the pan support. Place the pan correctly over the centre of the burn e r.

  • Page 31: Cleaning And Conservation

    Cleaning and Conservation For the correct conser vation of the hob glass Cleaning and conservation of other elements: it must be cleaned using the appropriate pro- • Pan supports should be cleaned with a ducts and utensils and when the glass is non-abrasive scourer after they have coo- cold.

  • Page 32: Electric Hotplates (Mod. Cg. 1 3G 1P)

    Electric Hotplates Maintenance (Mod. CG.1 3G. 1P.) B e f o re cleaning, disconnect the appliance No part of this appliance requires period lubri- from the mains supply. cation, though the gas tap cones should be kept clean and well greased. Electric hotplates should be cleaned with soapy water and a non-abrasive scoure r.

  • Page 33: If Something Doesn't Work

    Important If Something Doesn’t Work Before calling the Technical Service, make the following checks: Fault Possible Cause Solution Neither the hob nor the pilot light works. The mains cable is not connected. Connect the mains cable. No spark appears when the automatic ignition switch is pressed.
  • Page 34 555 - 762.04.90 555 - 762.05.17 P o l a n d Wa r s z a w a TEKA POLSKA SP. Z O O. 22 - 652.18.94 22 - 850.12.48 P o rt u g a l I l h a v o TEKA PORTUGUESA LT D A .
