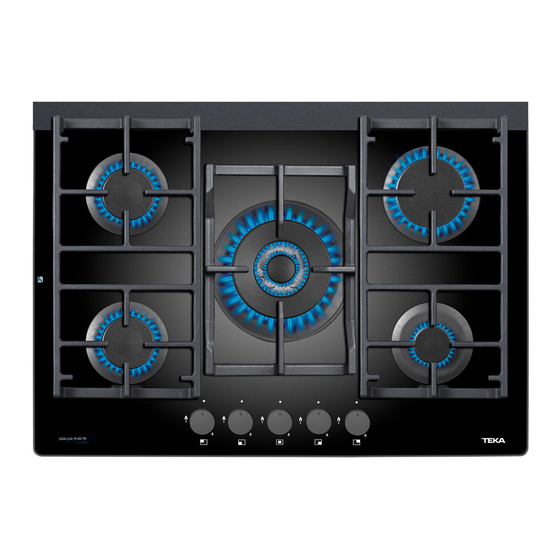

Teka CG.1 4G Installation And Maintenance Manual

Teka CG.1 4G Installation And Maintenance Manual

Cristal-gas hobs

Advertisement

61401134/329
ingles
18/7/03 16:55

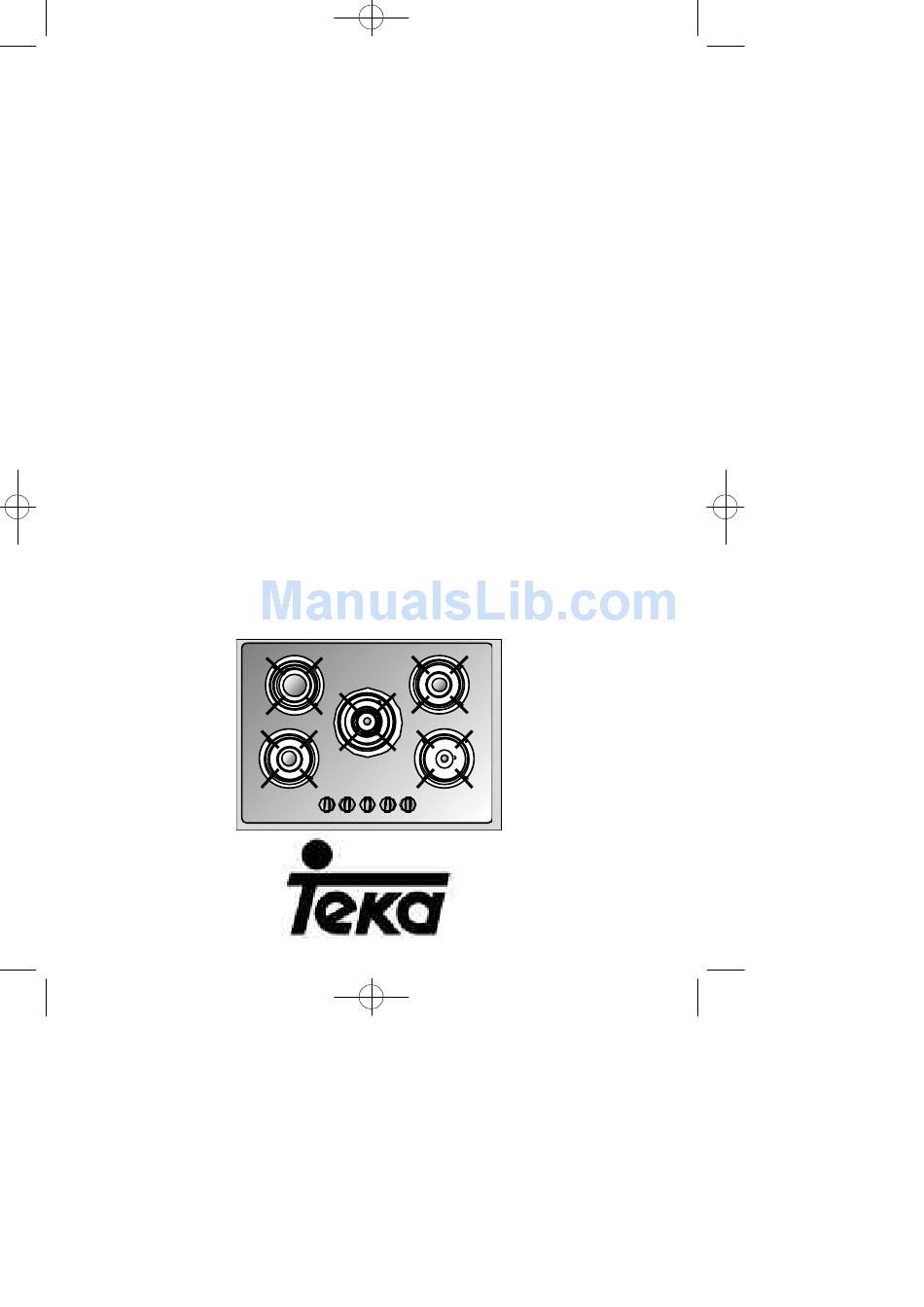

Installation and maintenance manual
CRISTAL-GAS HOBS CG.1 4G / CG.1 3G. 1P
CG Lux-60 4G. / CG Lux-70 4G. / CG Lux-70 4G AI AL
CG Lux-70 5G. / CG Lux-60 4G. Al AL / CG Lux-70 5G. Al AL
CG Lux-70 5G AI TR AL / CG Lux-70 5G TR / CGC 4G / CGC 4G AI AL
CG Lux-75 2G AI TR AL / CG Lux-86 3G AI TR AL
CG Lux-60 4G AI / CG Lux-70 4G AI / CG Lux-70 5G AI
CG Lux-70 5G AI TR / CG Lux-75 2G AI TR / CG Lux-86 3G AI TR
Bedienungsanleitung und Pflegehinweise
GASKOCHFELDER TEMPERGLAS CG.1 4G / CG.1 3G. 1P
CG Lux-60 4G. / CG Lux-70 4G. / CG Lux-70 4G AI AL
CG Lux-70 5G. / CG Lux-60 4G. Al AL / CG Lux-70 5G. Al AL
CG Lux-70 5G AI TR AL / CG Lux-70 5G TR / CGC 4G / CGC 4G AI AL
CG Lux-75 2G AI TR AL / CG Lux-86 3G AI TR AL
CG Lux-60 4G AI / CG Lux-70 4G AI / CG Lux-70 5G AI
CG Lux-70 5G AI TR / CG Lux-75 2G AI TR / CG Lux-86 3G AI TR
Instructions de montage et conseils d'entretien
PLAQUES DE CUISSON CRISTAL-GAZ CG.1 4G / CG.1 3G. 1P
CG Lux-60 4G. / CG Lux-70 4G. / CG Lux-70 4G AI AL
CG Lux-70 5G. / CG Lux-60 4G. Al AL / CG Lux-70 5G. Al AL
CG Lux-70 5G AI TR AL / CG Lux-70 5G TR / CGC 4G / CGC 4G AI AL
CG Lux-75 2G AI TR AL / CG Lux-86 3G AI TR AL
CG Lux-60 4G AI / CG Lux-70 4G AI / CG Lux-70 5G AI
CG Lux-70 5G AI TR / CG Lux-75 2G AI TR / CG Lux-86 3G AI TR
Página 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG.1 4G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teka CG.1 4G

  • Page 1 CG Lux-70 5G AI TR / CG Lux-75 2G AI TR / CG Lux-86 3G AI TR Instructions de montage et conseils d’entretien PLAQUES DE CUISSON CRISTAL-GAZ CG.1 4G / CG.1 3G. 1P CG Lux-60 4G. / CG Lux-70 4G. / CG Lux-70 4G AI AL CG Lux-70 5G.
  • Page 2 These hob models can be installed in the This modern, functional and practical applian- same kitchen units as TEKA ovens and control ce has been built using top quality materials panels. which are subjected to strict quality contro l s throughout the manufacturing process.
  • Page 3: Table Of Contents

    61401134/329 ingles 18/7/03 16:55 Página 3 Contents Introduction Página 4 Description of the Appliance Installation Positioning of the hobs Positioning of the oven Anchoring of the hob Connecting the hob to the oven or the control panel Gas Connection Electrical Connection Gas transformation Technical Information Dimensions and powers...
  • Page 4: Introduction

    61401134/329 ingles 18/7/03 16:55 Página 4 Introduction Description of the Appliance CG. 1 4G (See drawing 1) CG.1 3G. 1P. (See drawing 2) 1 Auxiliary burner of 860 Kcal/h - 1 kW. 1 Auxiliary burner of 860 Kcal/h - 1 kW. 2 Semi fast burner of 1,500 Kcal/h - 2 High -powe r h otp late of 1,5 00 W, 1.75 kW.
  • Page 5 61401134/329 ingles 18/7/03 16:55 Página 5 CG-Lux-60 4G, CG Lux-60 4G Al AL CGC 4G and CGC 4G AI AL (See drawing 4) and CG Lux-60 4G AI (See drawing 3) 1 Fast burner of 2,580 Kcal/h - 3 kW. 1 Fast burner of 2,580 Kcal/h - 3 kW.
  • Page 6 61401134/329 ingles 18/7/03 16:55 Página 6 CG-Lux-70 5G., CG Lux-70 5G Al AL CG-Lux-70 5G TR , CG Lux-70 5G AI TR AL and CG Lux -70 5G AI (See drawing 5) and CG Lux -70 5G AI TR (See drawing 6) 1 Fast burner of 2,580 Kcal/h - 3 kW.
  • Page 7 61401134/329 ingles 18/7/03 16:55 Página 7 CG-Lux-70 4G, CG-Lux-70 4G AI AL CG-Lux-75 2G AI TR AL and CG Lux-75 2G AI TR and CG Lux -70 4G AI (See drawing 7) (See drawing 8) 1 Fast burner of 2,580 Kcal/h - 3 kW. 1 Triple ring burner of 3,010 Kcal/h - 2 Semi fast burner of 1,500 Kcal/h - 3.5 kW.
  • Page 8 61401134/329 ingles 18/7/03 16:55 Página 8 CG-Lux-86 3G AI TR AL and CG Lux-86 3G AI TR (See drawing 9) 1 Triple ring burner of 3,010 Kcal/h - 3.5 kW. 2 Triple ring burner of 3,010 Kcal/h - 3.5 kW. 3 Semi fast burner of 1,500 Kcal/h - 1.75 kW.
  • Page 9: Installation

    10. A template is included in the packaging of models CG.1 4G. and CG.1 3G. 1P. for the c o rrect sizing of the aper t u re for these two hob models.
  • Page 10: Positioning Of The Oven

    61401134/329 ingles 18/7/03 16:55 Página 10 In the cases of the models CG.1 4G and CG.1 Positioning of the oven 3G 1P, the clamps must be fitted as shown in the picture 12 depending on the thickness of See th applicable manual.
  • Page 11: Connecting The Hob To The Oven Or The Control Panel

    14, depending on the CONNECTING THE HOB TO THE OVEN thickness of the work top. (Mod. CG.1 4G, CG.1 3G 1P and CGC 4G) OR THE CONTROL PANEL To connect the hob to the oven, four telescopic 20 mm.
  • Page 12: Gas Connection

    This hob comes complete with knob covers for all TEKA ovens except for models RT-600 and RT-800. For these two models, order the knob covers in your nearest TEKA establishment or official technical service.
  • Page 13: Electrical Connection

    After installing the hob, check that the bur- the electrical cable of these appliances, this ners’ minimum settings are well regulated. To should be done by official TEKA technicians as do this, light the burners and check that they specific tools are required.
  • Page 14: Gas Transformation

    Hob CG.1 4G, CG.1 3G 1P, CGC 4G y CGC 4G o rder to identify the new characteristics after AI AL the changeover.
  • Page 15 TEKA INDUSTRIAL, S.A. will not accept re s- ponsibility for incorrect hob operation in the gas transformation and regulation of minimum b u rner settings are not carried out by TEKA’s official Technical Service.
  • Page 16: Technical Information

    18/7/03 16:56 Página 16 Technical information Dimensions and powers M o d e l s CG Lux-60 4G AI CG.1 4G CG.1 3G. 1P. CG Lux-60 CG Lux-60 CGC 4G CG Lux-70 4G. AIAL AI AL D i m e n s i o n s...
  • Page 17 61401134/329 ingles 18/7/03 16:56 Página 17 M o d e l s CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-75 CG Lux-86 4G AI 5G AI 5G AI TR 2G AI TR 3G AI TR CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-75 CG Lux-86...
  • Page 18: Technical Data

    61401134/329 ingles 18/7/03 16:56 Página 18 Technical Data COMMON CHARACTERISTICS TO THE ELEC- c) “This appliance must not be connected to a device for the evacuation of combustion pro- TRIC HOTPLATES AND AUTOMATIC LIGHTING ducts. Its installation and connection will be MODEL c a rried out according the installation rules in for- ce.
  • Page 19 G-31 (Kg/h) 0,24 0,21 0,13 0,07 CCR CG Lux-60, CG Lux-70 CGC 4G, CG.1 4G and CG.1 3G. 1P 1 , 5 5 0 , 7 7 0 , 4 7 0 , 3 3 CCR CG Lux-75 and CG Lux-86 1,55 –...
  • Page 20: Rating Plates

    61401134/329 ingles 18/7/03 16:56 Página 20 TEKA INDUSTRIAL, S . A . TEKA INDUSTRIAL, S . A . SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG.1 4G CG LUX 60 4G Mod. Clase Mod. Clase ∑ Qn ∑ Qn Nº Nº...
  • Page 21 61401134/329 ingles 18/7/03 16:56 Página 21 TEKA INDUSTRIAL, S . A . TEKA INDUSTRIAL, S . A . SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG LUX 70 5G AI AL CG LUX 70 5G Mod. Clase Mod. Clase CG LUX 70 5G AI ∑...
  • Page 22 61401134/329 ingles 18/7/03 16:56 Página 22 TEKA INDUSTRIAL, S . A . TEKA INDUSTRIAL, S . A . SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG LUX 70 4G AI AL CGC 4G Mod. Clase Mod. Clase CG LUX 70 4G AI ∑...
  • Page 23 61401134/329 ingles 18/7/03 16:56 Página 23 TEKA INDUSTRIAL, S . A . TEKA INDUSTRIAL, S . A . SANTANDER - ESPAÑA SANTANDER - ESPAÑA CG LUX 70 5G AI TR AL CG LUX 75 2G AI TR AL Mod. Clase Mod.
  • Page 24: Use And Maintenance

    Ligthing of Burners check that the voltage and frequency are tho- se indicated in the rating plate located on the For hobs models CGC 4G, CG.1 4G. and CG.1 lower par t of the hob. 3G. 1P. (See drawing 20).
  • Page 25 61401134/329 ingles 18/7/03 16:57 Página 25 • Check that the controls are in the corre c t • Set the control knob to the desired posi- tion. position. • Open the mains connection gas tap or the gas bottle cock. •...
  • Page 26: Switching On Electric Hotplates

    2. These hobs have zones which become hot during and after their use and can cause TEKA Industrial, S.A. will accept no re s p o n s i- burns. bility for possible inaccuracies contained in this instruction manual due to transcription or The red-point hotplate (1,500 W) heats up printing errors.
  • Page 27: Components Of A Safety System

    61401134/329 ingles 18/7/03 16:57 Página 27 Components of a Safety System On all the hobs which incorporate the safety f e a t u re (models with initials AL), the gas cut- o f f system is comprised formed by the follo- wing elements: (See drawing 24).
  • Page 28: Using Your Hob

    (‘0’), turn off the Pan suppor t supplement gas connection and disconnect the electri- city supply. Contact your TEKA Te c h n i c a l Service.
  • Page 29: Hints For The Correct Usage Of Burners

    61401134/329 ingles 18/7/03 16:57 Página 29 f rom damaging worktops with plastic sur- Hints for the Correct Usage f a c e s . of Burners Hints for the Correct Usage • Do not use large burners with pans of of Electric Hotplates small diameters as par t of the flame will be deflected around the outside of the...
  • Page 30: Reminder

    61401134/329 ingles 18/7/03 16:57 Página 30 Reminder Do not use small pans on large burners, as the fla- me will be dissipated. Use appropriately sized pans for each burn e r, thus making the best use of the heat. Do not place pans unevenly on the pan support. Place the pan correctly over the centre of the burn e r.
  • Page 31: Cleaning And Conservation

    61401134/329 ingles 18/7/03 16:57 Página 31 Cleaning and Conservation For the correct conservation of the hob glass Cleaning and conservation of other elements: it must be cleaned using the appropriate pro- ducts and utensils and when the glass is • Pan suppor ts should be cleaned with a cold.
  • Page 32: Electric Hotplates (Mod. Cg.1 3G. 1P)

    61401134/329 ingles 18/7/03 16:57 Página 32 Electric Hotplates Maintenance (MOD. CG.1 3G 1P.) B e f o re cleaning, disconnect the appliance No part of this appliance requires period lubri- from the mains supply. cation, though the gas tap cones should be kept clean and well greased.
  • Page 33: If Something Doesn't Work

    61401134/329 ingles 18/7/03 16:57 Página 33 Important If Something Doesn’t Work Before calling the Technical Service, make the following checks: Fault Possible Cause Solution Neither the hob nor the pilot light works. The mains cable is not connected. Connect the mains cable. No spark appears when the automatic ignition switch is pressed.
  • Page 34 Budapest, HUNGARY 1 - 111.58.03/04 1 - 111.58.05 TEKA BV Amsterdam, THE NETHERLANDS 31 23 - 565.73.99 23 - 565.03.96 TEKA POLSKA SPOLKA Z O.O. Warszawa, POLAND 22 - 652.18.94 22 - 654.22.66 TEKA PORTUGUESA LTDA. Ilhavo, PORTUGAL 351 34 - 32.95.00 34 - 32.54.57...
