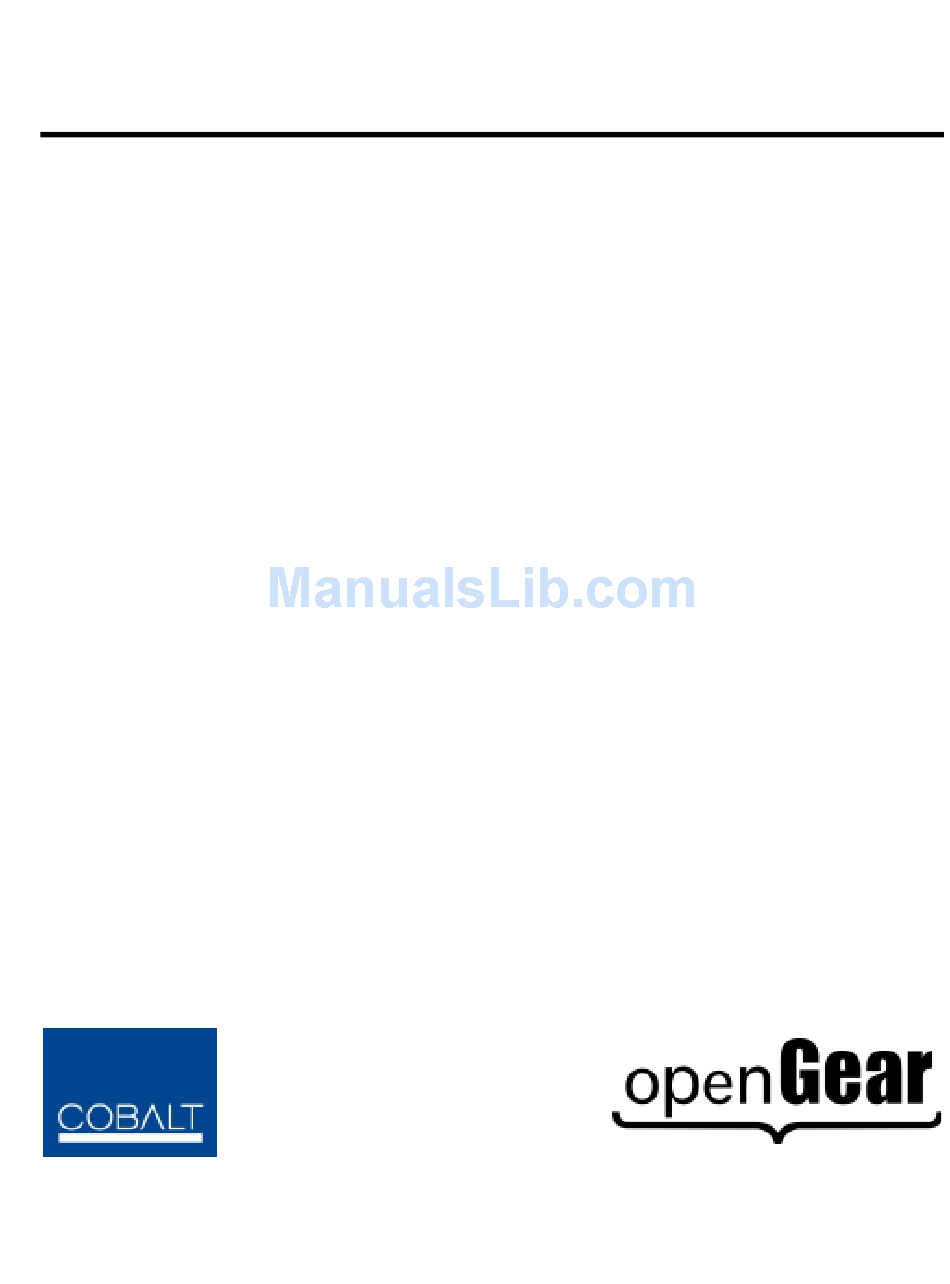

- Page 1 Cobalt Digital Inc. 9035 Analog and Digital Input Converter with Audio Embedding, Audio De-Embedding, and Frame Synchronization Owner’s Manual 9035-OM Version: 1.0.9...
- Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as a commitment by Cobalt Digital Inc. Cobalt Digital Inc assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Important Safety Instructions
To reduce the risk of fire, replacement fuses must be the same type and rating. Only use attachments/accessories specified by the manufacturer. 9035 Owner’s Manual • • • • (V 1.0.9) Page 3 of 27... - Page 4 If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Cobalt Digital for more information on the environmental performances of our products. 9035 Owner’s Manual • • • • (V 1.0.9) Page 4 of 27...
-
Page 5: Table Of Contents
Troubleshooting Checklist .......................23 Warranty and Repair Policy .....................24 Ordering Information 9035 and Related Products.......................25 Contact Us Contact Cobalt Digital Inc......................27 Visit us at the Cobalt Digital Inc. website................27 9035 Owner’s Manual • • • • (V 1.0.9) Page 5 of 27... -
Page 6: Introduction

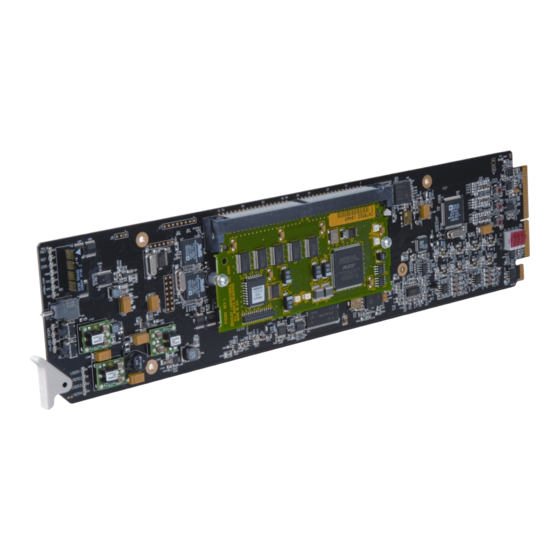

The 9035 can best be thought of as a universal input processing card with audio and video support. The video source can be either the HD/SD-SDI input or the HD/SD analog video input. - Page 7 Card configuration can also be done over Dashboard remote control software. The input and outputs of the 9035 are the following: Input: One dual-rate HD/SD-SDI video input...
-
Page 8: Functional Block Diagram
All rates displayed as frame rates, interlaced (“i”) field rates are two times the number shown. Not supported as analog video input formats Embedded Audio The 9035 supports all four groups (16 channels) of embedded audio at full 24 bit resolution in both SD (with extended data packets) and HD. Analog Audio The 9035 supports 8 channels differential analog audio. -
Page 9: Discrete Aes Audio Input
AES input at 32 kHz, 44.1 kHz, 96 kHz or 192 kHz rates. Discrete AES Audio Output The 9035 can emit 16 channels (8 pairs) of discrete AES audio on 75 ohm BNC connections. The AES clock rate will be precisely locked to the output video rate. -
Page 10: Installation And Setup
Unpack each card you received from the shipping container, and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Cobalt Digital directly. 9035 Owner’s Manual • • • • (V 1.0.9) Page 10 of 27... -
Page 11: Rear Module Installation (Optional)
If you are installing the card into a slot with no rear module, you should have ordered and received a RM-9035-A Rear Module with your card. You will need to install it in your 8310 frame before you can connect cables. -
Page 12: Board Installation
AES IN/OUT 2 AES IN/OUT 4 AES IN/OUT 3 HD/SD SDI HD/SD SDI Output 1 Output 2 Figure 3. BNC Designations for the Card Rear Module RM-9035-A or 8310-RM-10 9035 Owner’s Manual • • • • (V 1.0.9) Page 12 of 27... -
Page 13: Card Control And Status
0 no change is made. If set to 1024 absolute black (value 004) becomes absolute white (value 3FB). If set to –1024, absolute white becomes absolute black. 9035 Owner’s Manual • • • • (V 1.0.9) Page 13 of 27... - Page 14 Allows the user to specify an additional vertical offset between the output video and the frame sync reference in lines. These are lines in the reference format, not the output video format. 9035 Owner’s Manual • • • • (V 1.0.9) Page 14 of 27...
-
Page 15: Audio Delay
Resets the frame sync, clearing any buffered audio and video. You must reset the framesync after manipulating the horizontal and vertical offset in order re-establish correct audio and video co-timing. 9035 Owner’s Manual • • • • (V 1.0.9) Page 15 of 27... - Page 16 If set to “Norm” output polarity is the same as input polarity, if set to “Inv” the output polarity is inverted. This can be used to correct polarity errors in the input signals fed to the card. 9035 Owner’s Manual • • • • (V 1.0.9) Page 16 of 27...
- Page 17 Restore Factory Settings In this parameter, move the toggle switch up to make the factory default settings active, and make the stored settings equal to the factory settings. 9035 Owner’s Manual • • • • (V 1.0.9) Page 17 of 27...
-
Page 18: Factory Default Settings
3) Audio gain is set to 0dB and polarity is set to normal on all channels. 4) The Frame Sync is disabled, reference 1 or 2 must be chosen to enable the frame sync. 9035 Owner’s Manual • • • • (V 1.0.9) Page 18 of 27... -
Page 19: Remote Control
Detected Video Standard ############ Standard on SDI or Analog Input Detected standard of Reference Standard ############ selected reference. Displays the Silicon Serial ############ Number of the card. 9035 Owner’s Manual • • • • (V 1.0.9) Page 19 of 27... - Page 20 Gain applied to embedded Gain Range (-400) – 400 audio output, one slider (per channel) for each channel. Inverts the phase of the Normal Phase embedded audio. (per channel) Invert 9035 Owner’s Manual • • • • (V 1.0.9) Page 20 of 27...
- Page 21 YPbPr Specifies the amount of SD Composite setup (pedestal) in the 0.0 or 7.5 IRE of Setup Contains input video. It will be removed by the decoder. 9035 Owner’s Manual • • • • (V 1.0.9) Page 21 of 27...
- Page 22 10 bit code value. Gain applied to C Color Gain Range 0-2000 (Chroma). 1000 is unity. Phase of C (Chroma) in Color Phase Range (–360) – 360 degrees. 9035 Owner’s Manual • • • • (V 1.0.9) Page 22 of 27...
-
Page 23: Service Information
Module Exchange Exchanging a suspect module with a module that is known to be working correctly is an efficient method for localizing problems to individual modules. 9035 Owner’s Manual • • • • (V 1.0.9) Page 23 of 27... -
Page 24: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your Cobalt Digital Inc. card proves to be defective in any way during this warranty period, Cobalt Digital Inc. reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. -
Page 25: Ordering Information
Ordering Information 9035 and Related Products Your 9035 HD/SD Analog and Digital Input Converter with Audio Embedding, De-Embedding and Frame Sync is a part of the openGear family of products. Cobalt Digital offers a full line of openGear terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, embedders, and de-embedders, as well as analog audio and video products. - Page 26 Notes: 9035 Owner’s Manual • • • • (V 1.0.9) Page 26 of 27...
-
Page 27: Contact Us
Visit us at the Cobalt Digital Inc. website. http://www.cobaltdigital.com • Online catalog • Related products and full product lines • Trade show information • Dealer information • Cobalt Digital Inc. news 9035 Owner’s Manual • • • • (V 1.0.9) Page 27 of 27...
