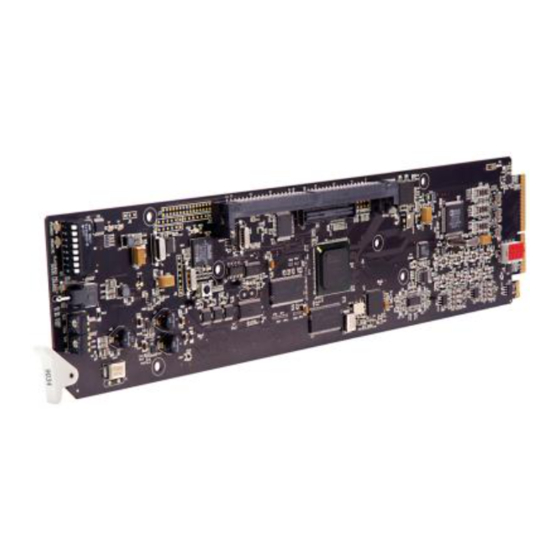

- Page 1 Cobalt Digital Inc. 9034 Analog to Digital Converter with Audio Embedding and Frame Sync Owner’s Manual 9034-OM Version: 2.0...
- Page 2 9034 • • • • HD/SD Analog to Digital Converter with Audio Embedding and Frame Sync Owner’s Manual • Cobalt Part Number: 9034-OM • Document Version: 2.0 • Printed in the United States. • Last Author: MB • Printing Date: 2/21/2008 10:48 AM The information contained in this Owner’s Manual is subject to change without notice or obligation.
-
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below so as to avoid personnel injury and to prevent product damage. Products may require specific equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance requirements. - Page 4 Environmental Information The equipment that you purchased required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment. To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Cobalt Digital encourages you to use the appropriate take-back systems.
-
Page 5: Table Of Contents
Contents Introduction In This Chapter...........................6 A Word of Thanks........................6 Overview............................6 Functional Block Diagram ......................8 Supported Audio and Video Formats ..................8 Input and Output Video ....................8 Analog Audio.......................8 Discrete AES Audio Input ...................8 Discrete AES Audio Output..................9 AES Audio Input Advanced Features ..................9 AES Sample Rate Converter Bypass................9 Zero-Delay Audio Embedding ..................9 Low latency AES Passthrough ..................9... -
Page 6: Introduction
Introduction In This Chapter This chapter includes the following sections: • A Word of Thanks • Overview • Functional Block Diagram • Supported Audio and Video Formats • Documentation Terms A Word of Thanks Congratulations on choosing the openGear 9034 Analog to Digital Converter with Audio Embedding and Frame Sync. - Page 7 Audio rates are always 48kHz nominally but discrete AES inputs pass through sample rate converters to align them with the output timing. The sample rate converters can be disabled if necessary. Output AES is always precisely locked in time with the output video. Analog audio is differential input and sampled at 48 kHz with 0 dbFS digital equivalent to a +24 dBu analog.
-
Page 8: Functional Block Diagram
Functional Block Diagram The 9034 has a very flexible signal flow path and feature set that combines several products into one compact package. This section diagrams the basic signal flow of your 9034 product. Video Frame Video Video Proc: Sync Gain, Lift, Saturation, Phase Analog Analog... -
Page 9: Discrete Aes Audio Output
Discrete AES Audio Output The 9034 can emit 16 channels (8 pairs) of discrete AES audio on 75 ohm BNC connections. The AES clock rate will be precisely locked to the output video rate. AES Audio Input Advanced Features AES Sample Rate Converter Bypass The card’s AES inputs have built in sample rate converters that are enabled by default. -
Page 10: Installation And Setup
Installation and Setup In This Chapter This chapter includes the following sections: • Static Discharge • Unpacking • Rear Module Installation (Optional) • Board Installation • BNC Connections • Menu Structure • Factory Defaults Static Discharge Whenever handling the card and other related equipment, please observe all static discharge precautions as described in the following note: Static discharge can cause serious damage to sensitive semiconductor devices. -
Page 11: Rear Module Installation (Optional)
Rear Module Installation (Optional) If you are installing the card in a 8310-C-BNC or 8310-BNC frame (one with a 100 BNC rear module installed across the entire back plane), skip this section. If you are installing the card into a slot with no rear module, you should have ordered and received one of the following modules;... -
Page 12: Rear Modules Available For 9034
Rear Modules Available for 9034 Figure 3. BNC Designations for the Card Rear Modules available for the 9034. CMPST CMPST Pr/C Pr/C Analog Analog text text AES IN/ AES IN/ Audio IN Audio IN OUT 1 OUT 2 Analog Analog AES IN/ AES IN/ Audio IN... -
Page 13: Board Installation
Board Installation Use the following steps to install the card in the openGear 8310 frame: Refer to the Owner’s Manual of the openGear 8310 frame to ensure that the frame is properly installed according to instructions. Heat and power distribution requirements within a frame may dictate specific slot placement of cards. -
Page 14: Card Control And Status
Card Control and Status Card Status The card indicates the status of the input signal with the four blue LEDs labeled with the different supported formats (1080, 720, 625, 525). When the card has locked to a particular input format, that LED will be illuminated. - Page 15 Proc Phase This is Chroma (C channel) phase adjustment, expressed in degrees, ranging from –360 to +360 in steps of one degree. Decoder SD Input Selects the input format for SD analog video. This must be changed to reflect the analog video format on the input for the 9033 to lock correctly.
- Page 16 Audio Delay Specifies the amount of additional audio delay after matching video delay. When the change is under one and a half frames, the change in audio delay will be applied without interrupting audio. When changing audio delay more than a frame and a half at a time, there will be a slight audio glitch. Video Delay Reports the current amount of video delay in ms.
-
Page 17: Save Settings
Output Gain The gain of each output is adjustable from +30 dB to –100 dB in 0.1 dB steps. After –100 dB gain is set to –Inf, which means that output is present, but muted. Output Polarity If set to “Norm” output polarity is the same as input polarity, if set to “Inv” the output polarity is inverted. -
Page 18: Factory Default Settings
Restore Factory Settings In this parameter, move the toggle switch up to make the factory default settings active, and make the stored settings equal to the factory settings. Information Submenu Menu Structure Parameter Type Info +POW Positive Watts Consumed -POW Negative Watts Consumed SWR# Software Release Number... -
Page 19: Remote Control
Remote Control In This Chapter This section provides a detailed explanation on using remote control functions with your card. DashBoard Control System Software The DashBoard Control System enables you to monitor and control openGear frames and controller cards from a computer. The DashBoard software and manual can be downloaded from the Cobalt Digital Inc. - Page 20 Menu Item Format Description Enables the Frame Sync Framesync Enable On/Off Applies additional Horizontal Offset 0-4125 samples horizontal offset Applies additional vertical Vertical Offset 0-1124 lines offset Minimum Latency Selects the minimum lines 3-1124 lines Lines of latency allowed. Frame Sync Minimum Latency Selects the minimum 0-27...
- Page 21 Menu Item Format Description Composite Selects the format of input SD analog video, so the decoder can properly YPbPr BetaCam SD Input Type decode the signal. YPbPr MII YPbPr SMPTE Video Signal Controls Selects the format of HD Input Type input HD analog video.
-
Page 22: Technical Specifications
Technical Specifications Table 4. Card - Technical Specifications Number of Inputs Input Type Differential, Common Mode Rejection (5V AC) Video Inputs HD: Component YPbPr and RGB SD: Composite, Component YPbPr (BetaCam™, MII™, SMPTE/N10), RGB, and Y/C 12-Bits Conversion Bit Depth 5-Line Adaptive Comb or Notch Filter SD Color Separation Analog Video... - Page 23 SMPTE 276M Standard Number of Inputs 8 unbalanced Input Level 0.1 to 2.5V p-p (5V p-p tolerant) AES Audio Input Impedance 75Ω Input > 12dB 100kHz to 6MHz Return Loss Automatic to 1000m with Belden 1694A (or Equalization equivalent) @ 48kHz AES signal 48KHz Sample Rate SMPTE 276M...
-
Page 24: Service Information
Service Information In This Chapter This chapter includes the following sections: • Troubleshooting Checklist • Warranty and Repair Policy Troubleshooting Checklist Routine maintenance to this openGear product is not required. In the event of problems with your card, the following basic troubleshooting checklist may help identify the source of the problem. If the module still does not appear to be working properly after checking all possible causes, please contact your openGear products distributor, or the Technical Support department at the numbers listed under... -
Page 25: Warranty And Repair Policy
Warranty and Repair Policy The openGear card is warranted to be free of any defect with respect to performance, quality, reliability, and workmanship for a period of FIVE (5) years from the date of shipment from our factory. In the event that your Cobalt Digital Inc. card proves to be defective in any way during this warranty period, Cobalt Digital Inc. -
Page 26: Ordering Information
Ordering Information 9034 and Related Products Your 9034 HD/SD Analog to Digital Converter with Audio Embedding and Frame Sync is a part of the openGear family of products. Cobalt Digital offers a full line of openGear terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, embedders, and de-embedders, as well as analog audio and video products. - Page 27 Notes: 9034 Owner’s Manual • • • • (V 2.0) Page 27 of 28...
-
Page 28: Contact Us
Contact Us Contact Cobalt Digital Inc. General Business Office 217.344.1243 and Technical Support PHONE 217.344.1245 Info@cobaltdigital.com General Information E-MAIL Sales Information Sales@cobaltdigital.com 2406 East University Avenue POSTAL Cobalt Digital Inc. Urbana, IL 61802 USA SERVICE Visit us at the Cobalt Digital Inc. website. http://www.cobaltdigital.com •...
