Summary of Contents for Cobalt Digital Inc 9033

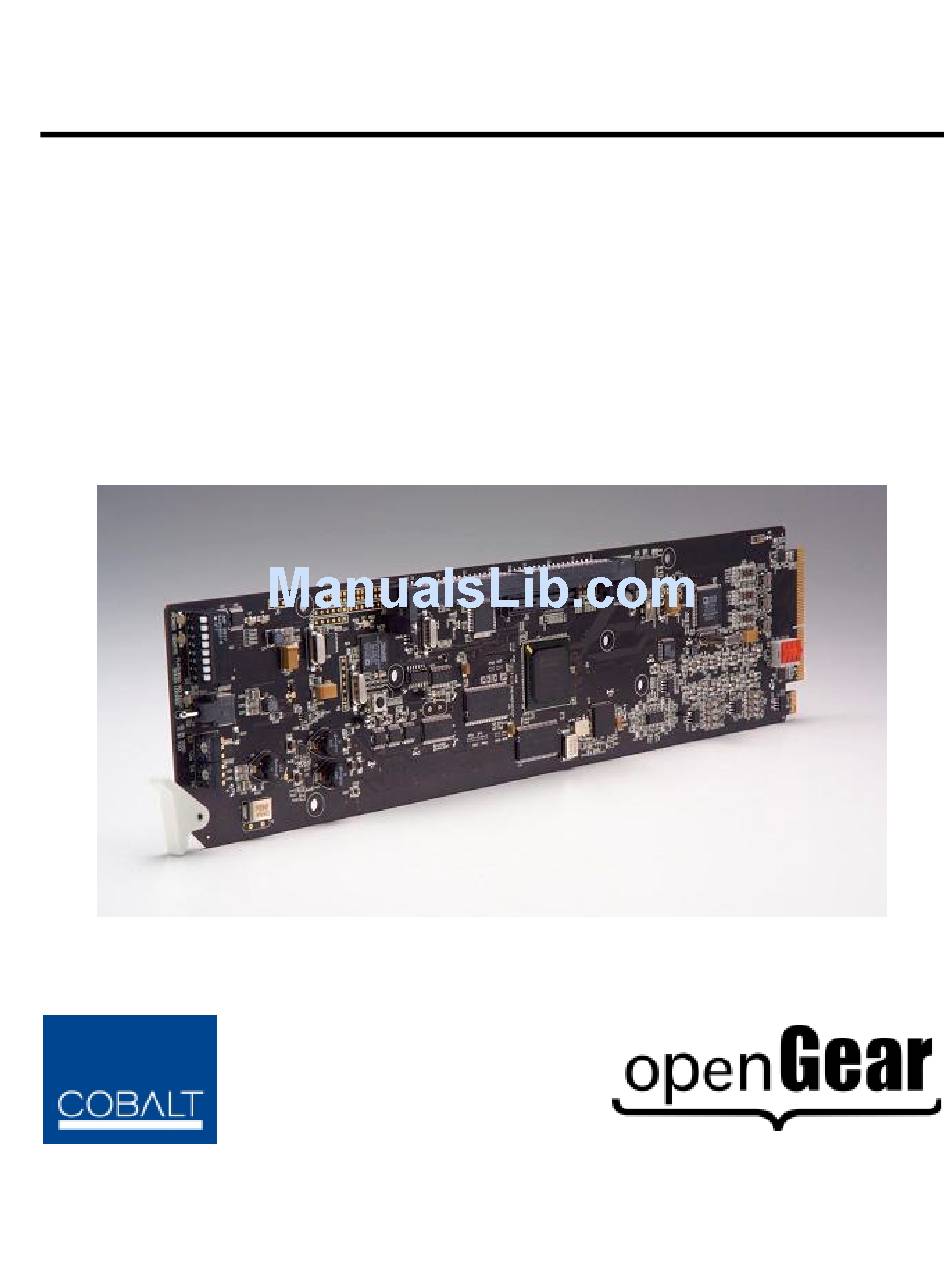

- Page 1 Cobalt Digital Inc. 9033 Preliminary Owner’s Manual 9033-OM Version: 0.5...
- Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as a commitment by Cobalt Digital Inc. Cobalt Digital Inc assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Important Safety Instructions
To reduce the risk of fire, replacement fuses must be the same type and rating. Only use attachments/accessories specified by the manufacturer. 9033 Owner’s Manual • • • • (V 0.5) Page 3 of 23... - Page 4 If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Cobalt Digital for more information on the environmental performances of our products. 9033 Owner’s Manual • • • • (V 0.5) Page 4 of 23...
-
Page 5: Table Of Contents
Troubleshooting Checklist .......................19 Warranty and Repair Policy .....................19 Ordering Information 9033 and Related Products.......................21 Contact Us Contact Cobalt Digital Inc......................23 Visit us at the Cobalt Digital Inc. website................23 9033 Owner’s Manual • • • • (V 0.5) Page 5 of 23... -
Page 6: Introduction
HD and SD. The embedder on the 9033 can best be thought of as an audio router on a card. On the input side of the router are the up to 16 channels of embedded AES in the input video, the up to16 channels (8 pairs) of discrete AES input, and up to 8 channels of differential analog audio input. -
Page 7: Functional Block Diagram
8 dedicated AES output connections. (AES output 1-8) Functional Block Diagram The 9033 has a very flexible signal flow path and feature set that combines several products into one compact package. This section describes the basic operation of your 9033 product. -
Page 8: Supported Audio And Video Formats
The 9033 is an analog to digital converter that also features an embedder which can embed both analog audio and AES. For the audio embedded on the SDI output, the card acts as a router that can map any input channel to any channel on the embedded SDI output. The router inputs are de-embedded audio, discrete AES audio, and differential analog audio. -
Page 9: Embedded Audio
Embedded Audio The 9033 supports all four groups (16 channels) of embedded audio at full 24 bit resolution in both SD (with extended data packets) and HD. Analog Audio The 9033 supports 8 channels differential analog audio. The analog audio is encoded in such a way as to make +24 dBu (analog) equivalent to 0 dBFS (digital). -
Page 10: Installation And Setup
Unpack each card you received from the shipping container, and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Cobalt Digital directly. 9033 Owner’s Manual • • • • (V 0.5) Page 10 of 23... -
Page 11: Rear Module Installation (Optional)
Using a Phillips driver and the supplied screw, fasten the 8310-RM-10 panel to the 8310 back plane. Do not over tighten. This completes the procedure for installing the 8310-RM-10 in an 8310 openGear frame. 9033 Owner’s Manual • • • • (V 0.5) Page 11 of 23... -
Page 12: Board Installation
Output 2 Figure 3. BNC Designations for the Card Rear Module 8310-RM-10 or 8310-RM-100 In the near future, Cobalt Digital Inc. will release a series of rear modules that allow access to the full IO capabilities of the card. 9033 Owner’s Manual • • • • (V 0.5) -
Page 13: Card Control And Status
Output Source Gain Output Gain Output Polarity Ch04 Output Source Gain Output Gain Output Polarity Grp2 Enbl Embedded Group Enable Ch05 Output Source Gain Output Gain Output Polarity 9033 Owner’s Manual • • • • (V 0.5) Page 13 of 23... - Page 14 Save Save Settings Load Load Settings Fact Restore Factory Settings Info +POW Positive Watts Consumed -POW Negative Watts Consumed SWR# Software Release Number SWB# Software Build Number 9033 Owner’s Manual • • • • (V 0.5) Page 14 of 23...
-
Page 15: Parameter Type Descriptions
Selects the input format for SD analog video. This must be changed to reflect the analog video format on the input for the 9033 to lock correctly. Valid SD formats are GBR, Component SMPTE, Component MII, Component Betacam, Component Y/C, and Composite. -
Page 16: Factory Default Settings
3) Discrete AES inputs 1-16 are mapped to embedded audio outputs 1-16. 4) Audio gain is set to 0dB and polarity is set to normal on all channels. 9033 Owner’s Manual • • • • (V 0.5) Page 16 of 23... -
Page 17: Remote Control
#.## W Positive Supply Voltage -7.5 Power Rail #.## W Negative Supply Voltage Video Input Detected Video Standard Standard on SDI Input Reference Standard Detected Standard of Ref. 9033 Owner’s Manual • • • • (V 0.5) Page 17 of 23... - Page 18 Enable Video Gain Range 0-2000 Contrast Video Proc Video Lift Range (-999) – 999 Brightness Color Gain Range 0-2000 Saturation Color Phase Range (–360) - 360 Tint 9033 Owner’s Manual • • • • (V 0.5) Page 18 of 23...
-
Page 19: Service Information
FIVE (5) years from the date of shipment from our factory. 9033 Owner’s Manual • • • • (V 0.5) Page 19 of 23... - Page 20 In the event that your Cobalt Digital Inc. card proves to be defective in any way during this warranty period, Cobalt Digital Inc. reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
-
Page 21: Ordering Information
Ordering Information 9033 and Related Products Your 9033 HD/SD Analog to Digital Converter with Audio Embedding is a part of the openGear family of products. Cobalt Digital offers a full line of openGear terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, embedders, and de- embedders, as well as analog audio and video products. - Page 22 Notes: 9033 Owner’s Manual • • • • (V 0.5) Page 22 of 23...
-
Page 23: Contact Us
Visit us at the Cobalt Digital Inc. website. http://www.cobaltdigital.com/ • Online catalog • Related products and full product lines • Trade show information • Dealer information • Cobalt Digital Inc. news 9033 Owner’s Manual • • • • (V 0.5) Page 23 of 23...
