- Page 1 Model 9015 Dual Monitoring Converter SDI 4:2:2 to Analog Composite Video and Reclocked SDI Owner's Manual V1.1 Copyright 2000-2012 Cobalt Digital Inc.

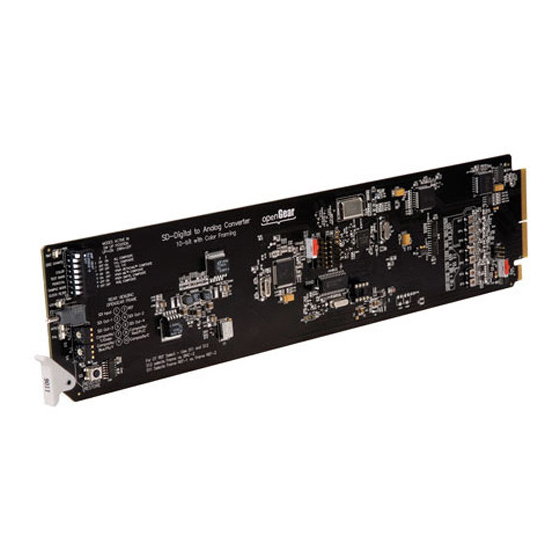

- Page 2 9015 Owner's Manual The Cobalt Digital 9015 is a high performance Dual 4:2:2 SDI digital to analog composite converter card. The card is 100% compatible with openGear frames. Through the use of the DashBoard Lite software, which can be found at the openGear...
- Page 3 Configuration Dip Switch Settings The 9015 has two 4 segment dip switches mounted on the forward edge of the PCB (Fig 4.); one for each converter. These configuration switches provide the capability to set the 9015 converter to display a color bar test pattern, turn setup on or off, and turn the chroma on or off.
- Page 4 Notes: Specifications subject to change without notice. This product is not authorized for use in life support systems. Product liability limited only to the replacement of this unit. Cobalt Digital Inc. does not assume any liability for loss of use due to failure of this component.
