E X S T R E A M E R

1 2 0

Quick Install Guide Version 1.0

Advanced multiformat

network audio decoder

Package contents

a Exstreamer 120

b Power supply

c RCA Stereo cable

d IR remote control

e Batteries (2 x AAA)

Cable Set AUDIO (not included)

Earphone

g RCA Stereo cable

h Network cable

Serial cable

Firmware

This device comes preloaded with the Streaming Client firmware. Alternative firmware,

such as the standard Exstreamer firmware, can be downloaded from www.barix.com.

Support

For support please contact your local dealer or visit www.barix.com.

without notice. All mentioned trademarks belong to their respective owners

and are used for reference only. Barix, Exstreamer and SonicIP are trade-

marks of Barix AG, Switzerland, and are registered in certain countries.

Need help?

Do you have a question about the EXSTREAMER 1 2 0 and is the answer not in the manual?

Page 1 Support For support please contact your local dealer or visit www.barix.com. © Barix AG 8/2010, all rights reserved.All information is subject to change without notice. All mentioned trademarks belong to their respective owners and are used for reference only. Barix, Exstreamer and SonicIP are trade-...

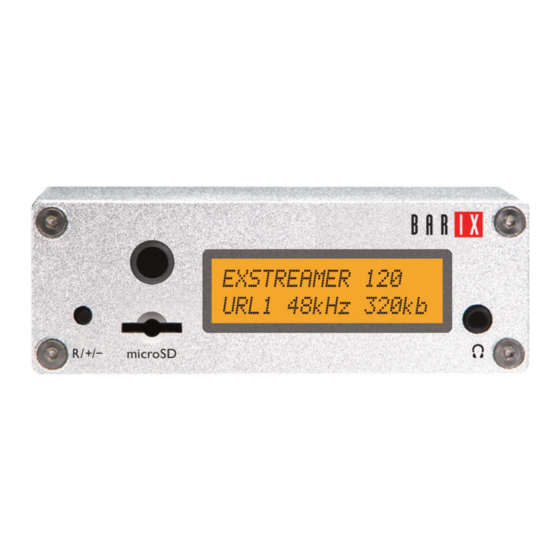

Page 2: Front View
Front view Rear view Reset button Line out A brief press of the button will reset the device. Stereo RCA line outputs Holding the reset button pressed in for approximately 10 seconds will reset the device and restore the factory default settings when the RS-232 serial port (DSub 9 pin male) button is released.
Page 3: Network Configuration
Installation Network configuration by web browser STEP 1 STEP 1 Plug a standard (straight) network cable (h, not included) Open your web browser. into the network port (C) of the Exstreamer and the other end into your hub or switch.You can also use a STEP 2 crossover network cable (not included) for a direct Enter the IP address that was announced by the Ex-...
Page 4 Read it to configure the Exstreamer for your purpose. have the IP address “192.168.0.2” and want to check if “192.168.0.6” is free. Check out the Barix user forum on www.barix.com for To do so type ping 192.168.0.6 and hit the additional information.
