USER MANUAL

On-Line UPS
Model ZS110
1000VA/2000VA/3000VA
Uninterruptible Power Supply System
1
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZS110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gtec ZS110

  • Page 1: User Manual

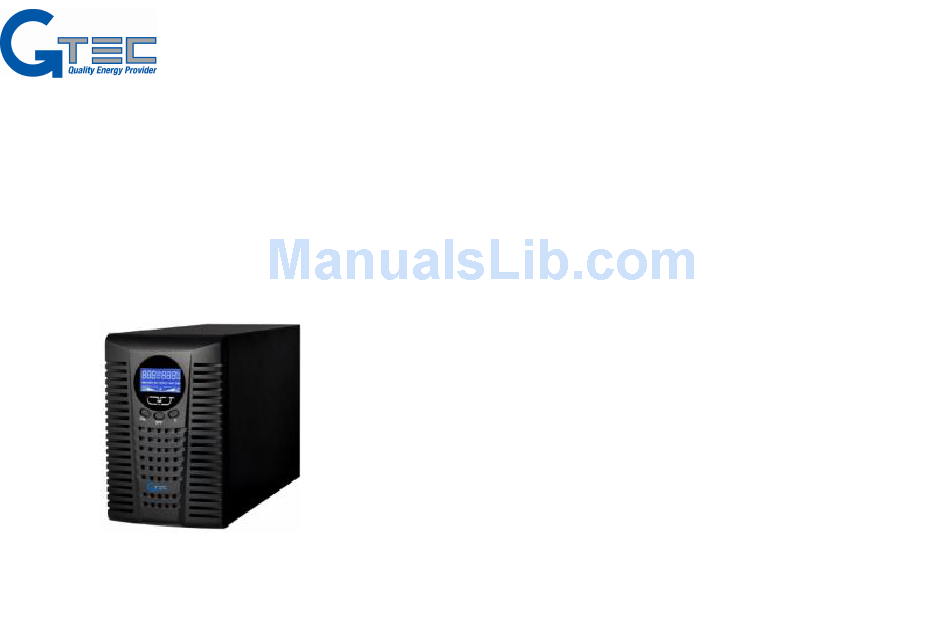

    USER MANUAL On-Line UPS Model ZS110 1000VA/2000VA/3000VA Uninterruptible Power Supply System...
  • Page 2: Safety Instructions

    1 Introduction 1. 2 Safety Instructions 1. 1 Description of Commonly Used Symbols 1. Read this manual carefully and thoroughly before operation the UPS and save this manual properly for future reference. Some or all of the following symbols may be used in this manual and may 2.
  • Page 3: Product Description

    There are two types of UPS according to the battery configuration: standard type and long backup time type, each available in the following ratings: 1kVA, 2kVA and 3kVA UPS. Figure 2-1 The rear panel of ZS110-1K-KS Table 2-1 UPS types and configurations Type...
  • Page 4: Operating Principle

    2. 3 Operating Principle the fault type, and the fault information will be reported through the communication ports. 6. Charger: The charger of standard UPS provides 1A charging current; and long backup time provided 7A charging current. 7. Battery: Sealed maintenance-free lead –acid battery can be used as the DC source of the UPS.
  • Page 5: Unpacking Inspection

    10A for ZS110-1K(-KS), over 16A for ZS110-2K(-KS) and present. (Refer to Table 9-1). ZS110-3K(-KS). A side of input wiring has been fixed with the UPS, and 3. Make sure the model is what you wanted from the nameplate on the rear the other side is just need to plug into the input socket.
  • Page 6 1. First connect in series the batteries of the pack to ensure proper battery 3.3.3 Connecting Communication Cable voltage that ZS110-1KS for 36VDC, ZS110-2KS for 72VDC, 1. Computer interface ZS110-3KS for 96VDC. 2. Take out the battery cable delivered with the UPS, one end of the external battery cable is a plug for connecting the UPS, the other end has 3 open wires for connecting the battery pack.
  • Page 7 Computer interface: The type of signals is provided by the UPS to 4 Chapter Empty, not present any more communicate with a host computer through communication cable included in the standard accessory, User can use special monitor software UPSilon in the standard accessory to monitor the UPS through the port.
  • Page 8: Operation Mode

    5 Operation (LCD model) c) LCD display screen switch Pressing the function button for more than 1 seconds and less than 2 5.1 Operation Display Panel seconds (buzzer beeps once) to switch LCD display screen 4 LED indicators The LED indicators contains, Bypass indicator, utility power indicator, Inverter indicator, Battery indicator.
  • Page 9: Battery Mode

    5.2.2 Battery Mode When operating in the battery mode, the display of main page on the front panel is shown as the figure 5-3. The battery indicator and the Inverter indicator are turned on. If the utility power indicator blinks at the same time, it shows that the utility power is abnormal.
  • Page 10 battery is not fully charged (the battery level icons lit one after another circularly). When the battery is fully charged, all the level icons are turned 1) When operating in bypass mode, the UPS beeps every 2 minutes. If the “Function”...
  • Page 11 5.3 Operating Instructions power off the UPS. If it bas been set up to work in bypass mode by software, the bypass indicator will be turned on to indicate that the UPS 5.3.1 UPS ON/OFF Operation is working in bypass mode. In order to cut off the output from the UPS, :...
  • Page 12: Battery Maintenance

    6 Maintenance 6. 2 Checking UPS function 6.1 Battery Maintenance Every time when conducting field maintenance, please check the regular function of the UPS, including: The battery is key component of the UPS. The battery life depends on the 1. Check the operation status of the UPS ambient temperature, charging and discharging times.
  • Page 13: Troubleshooting

    7 Troubleshooting 7 Troubleshooting In the event of an UPS fault, shoot the trouble according to Table 6-1. If the fault still persists, please contact our customer service center. Faults Possible Solution Fault/Warning Faults cause Fault icon Alarm Possible code Solution Fault/Warning cause...
  • Page 14: Specifications

    8 Specifications 8. 2 Mechanical 8. 1 Electrical Model W*H*D(mm) Weight(kg) 144×229×350 ZS11 ZS110- ZS11 ZS110- ZS11 ZS110- ZS110-1K 11.5 Model 190×328×424 0-1K 1K-KS 0-2K 2K-KS 0-3K 3K-KS ZS110-2K 190×328×424 Rating 1KVA/800W 2KVA/1600W 3KVA/2400W ZS110-3K 144×229×350 Input system Single phase & earth ground...
  • Page 15 9 Appendix 9.1 Consignment Lists Model Type Accessories Machine Intelligent monitor software CD Standard Model User Manual Serial communication cable Machine Intelligent monitor software CD Long backup User Manual time Model External Battery Cable Serial communication cable...
