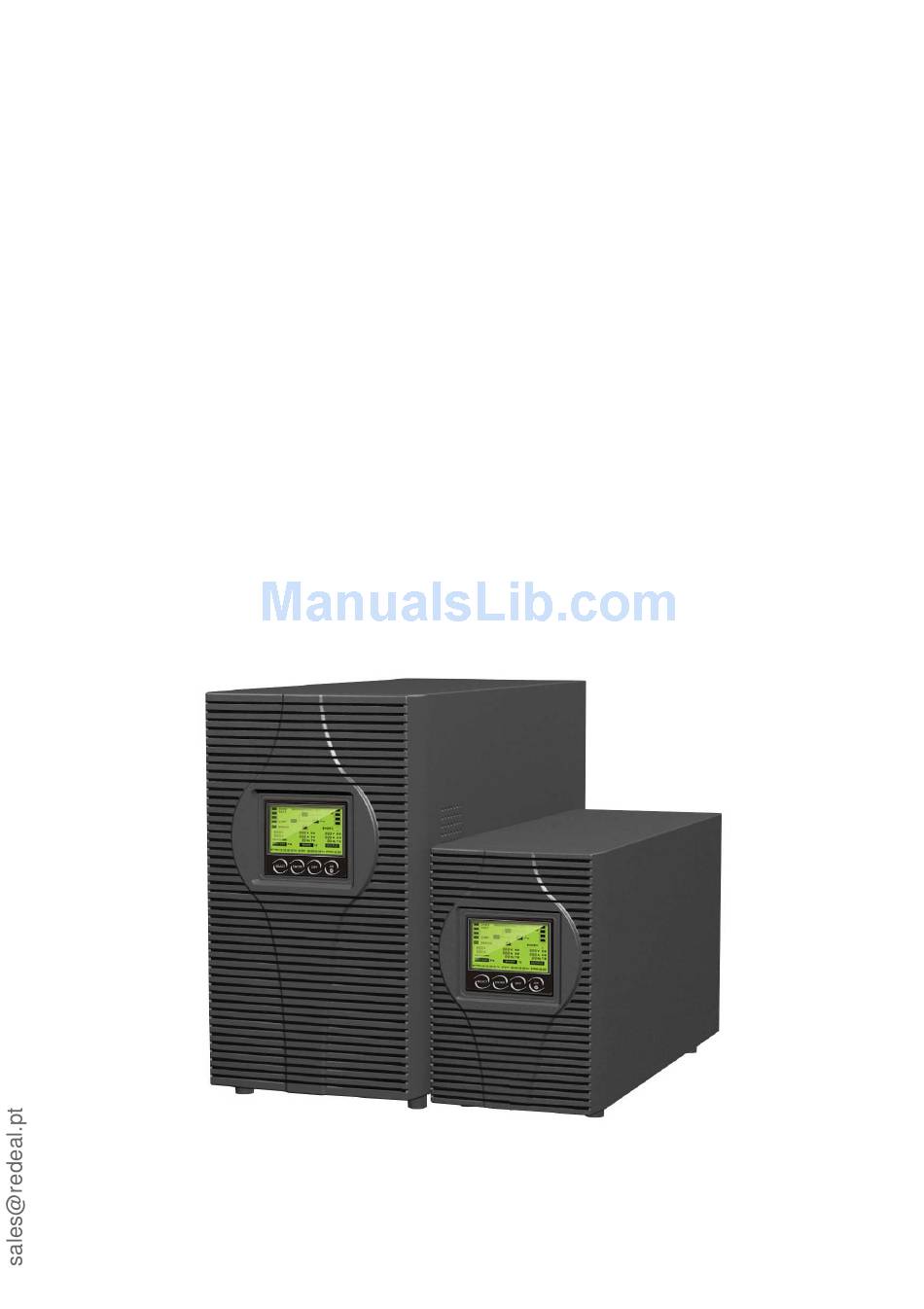

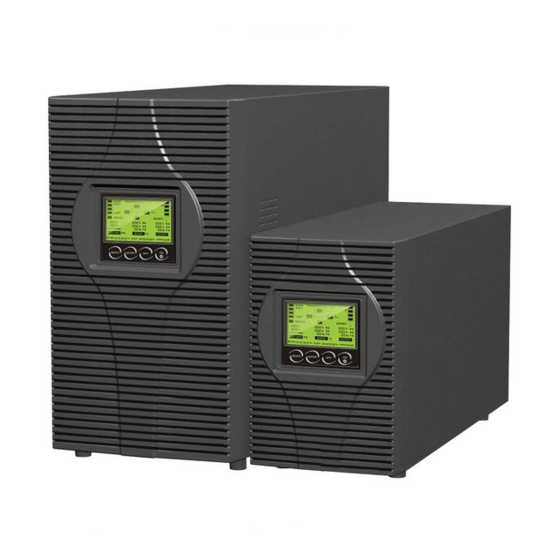

- Page 1 Deal USER’S MANUAL MANUALE UTENTE For Models ZP120N 1~3KVA Uninterruptible Power System www.redeal.pt...
-
Page 2: Table Of Contents
6.4 NO output mode ................21 6.5 EPO (Emergency Power Off) ............22 6.6 ECO mode (Economy mode) ............22 6.7 Converter mode................23 6.8 Abnormal mode ................23 7. Setting by LCD Module..............24 8. Trouble Shooting................27 9. Maintenance..................31 9.1 Operation ..................31 www.redeal.pt... - Page 3 10.3 Typical backup time (Typical values at 25° C in minutes:) ..... 33 10.4 Dimensions and weights ............33 11. Communication Port ..............34 11.1 USB.................... 34 11.2 RS232 Interface(Option)............34 11.3 AS400 Interface (Option) ............34 12. Software ..................36 Appendix: Rear panel ................37 www.redeal.pt...
-
Page 4: Safety And Emc Instructions
UPS and the connected load does not exceed 3.5mA. Do not block ventilation openings in the UPS’s housing. Ensure the air vents on the front, side and rear of the UPS are not blocked. Allow at least 25cm of space on each side. www.redeal.pt... -
Page 5: Operation
In order to fully disconnect the UPS, first press the OFF button to turn off the UPS, then disconnect the mains lead. Ensure that no liquid or other foreign objects can enter the UPS. www.redeal.pt... -
Page 6: Maintenance, Servicing And Faults
Batteries have a high short-circuit current and pose a risk of shock. Take all precautionary measures specified below and any other measures necessary when working with batteries: remove all jewellery, wristwatches, rings and other metal objects use only tools with insulated grips and handles. www.redeal.pt... -
Page 7: Transport
Do not dismantle the UPS, except the qualified maintenance personnel. 1.4 Transport Please transport the UPS only in the original packaging (to protect against shock and impact). 1.5 Storage The UPS must be stockpiled in the room where it is ventilated and dry. www.redeal.pt... -
Page 8: Standards
Voltage Fluctuation and Flicker..:IEC/EN 61000-3-3 *EMS ESD...........:IEC/EN 61000-4-2 Level 4 RS.............:IEC/EN 61000-4-3 Level 3 EFT............:IEC/EN 61000-4-4 Level 4 SURGE..........:IEC/EN 61000-4-5 Level 4 CS……………………………………...:IEC/EN 61000-4-6 Level 3 MS……………………………………..: IEC/EN 61000-4-8 Level 3 Voltaje Dips…………………………...: IEC/EN 61000-4-11 Low Frequency Signals.....:IEC/EN 61000-2-2 www.redeal.pt... -
Page 9: Description Of Commonly Used Symbols
2. Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning: www.redeal.pt... -
Page 10: Introduction
This manual covers the UPS listed as follows. Please confirm whether it is the model you intend to purchase by performing a visual inspection of the Model No. on the rear panel of the UPS. Model No. Type Model No. Type ZP120N-1K ZP120N-1K-KS Extended Standard ZP120N-2K ZP120N-2K-KS backup time... -
Page 11: Panel Description
By pressing this Button an acoustic alarm can be deactivated in the bypass mode. If the UPS system is No output or Bypass mode, the output Select-Button voltage and frequency and Bypass disable/enable and operating mode could be selected by pressing Select-Button, Enter-Button and confirmed by pressing Enter-Button. www.redeal.pt... - Page 12 0 to 99Hz Indicates the input Line current value, which could be displayed from 0 to 99.9A Output Information Indicates the UPS output voltage value, which could be displayed from 0 to 999Vac www.redeal.pt...
-
Page 13: Battery Information
Indicates the battery is weak, and the UPS would shut down soon UPS status Information Indicates some the warning or fault occur in the UPS, fault code or warning code could be displayed, and the codes are illuminated in detail in the following chapter www.redeal.pt... - Page 14 “UPS” means the setting of normal inverter mode (Line mode). “ECO” means the setting of economy mode. “CVF” means the setting of converter mode. The detail illustration of the three modes and the operation of the setting would be presented in the following section 6. www.redeal.pt...
-
Page 15: Connection And Operation
If the UPS is connected via the power cord, please use a proper socket with protection against electric current, and pay attention to the capacity of the socket: over 9A for ZP120N 1K/1K-KS, over 17A for ZP120N 2K/2K-KS, over 26A for ZP120N 3K/3K-KS. - Page 16 When selecting the NFB, the user can refer to below table for detailed information when installation. UPS INPUT NFB Model No. VOLTAGE CURRENT 300Vac ZP120N 1K/1K-KS 300Vac ZP120N 2K/2K-KS 300Vac ZP120N 3K/3K-KS (2) UPS Output Connection The output of the UPS is IEC socket-types. Simply plug the load power cord to the output sockets to complete connection.
-
Page 17: Battery Charge
Fully charge the batteries of the UPS system by leaving the UPS system connected to the mains for 1-2 hours. You may use the UPS system directly without charging it but the stored energy time may be shorter than the nominal value specified. www.redeal.pt... -
Page 18: Turn On The Ups
Press “OFF” button continuously for more than 1 second to turn off the UPS, the UPS will get into no output or bypass mode. At this time, the UPS might has output if bypass is enabled. Disconnect the utility power to turn off the output. www.redeal.pt... -
Page 19: Audible Alarm Mute Function
5.8 Operation procedure of external battery for long backup time model (“S” model) (1) Use the battery pack with voltage: 36VDC for ZP120N 1K-KS (3 pcs of 12V batteries), 96VDC for ZP120N 2K-KS/ 3K-KS (8 pcs of 12V batteries). Connection of batteries more than or less than required will cause abnormality or permanent damage. - Page 20 The output sockets of the UPS system may still be electrically live even if the power supply system has been disconnected or the Bypass switch is on “OFF” position. DC breaker Model No. VOLTAGE CURRENT 48Vac ZP120N 1K-KS 125Vdc ZP120N 2K-KS 125Vdc ZP120N 3K-KS www.redeal.pt...
-
Page 21: Operating Mode For All Models
6.1 Line mode The LCD display in Line mode is shown in the following diagram. The information about the utility power, the battery, the UPS output could be displayed. The “2” code indicate the UPS is working in Line mode. www.redeal.pt... -
Page 22: Battery Mode
The LCD display in battery mode is shown in the following diagram. The information about the utility power, the battery, the UPS output and the load could be displayed. The “3” code indicate the UPS is working in the battery mode. www.redeal.pt... -
Page 23: Bypass Mode
The information about the utility power, the battery, the UPS output and the load could be displayed. The UPS will beep once every 2 minutes in bypass mode. The “1” code indicate the UPS is working in the bypass mode. www.redeal.pt... -
Page 24: No Output Mode
The LCD display in No output mode is shown in the following diagram. The information about the utility power, the battery, the UPS output and the load could be displayed. The “0” code indicates the UPS is working in the No output mode. www.redeal.pt... -
Page 25: Epo (Emergency Power Off)
ECO mode. Once the mains is loss or abnormal, the UPS would transfer to battery mode and the load is supplied continuously by the battery. www.redeal.pt... -
Page 26: Converter Mode
UPS. And some warning words could also be shown, for example “SHORT!” would be shown when the load or the UPS output is short and the UPS is in inverter fault mode. www.redeal.pt... -
Page 27: Setting By Lcd Module
Button. The UPS would turn to bypass mode in several seconds after “Bypass ON” is selected, and turn to no output mode in several seconds after “Bypass OFF” is selected. The mode change would be active only after the UPS is turned on. www.redeal.pt... - Page 28 230Vac through the LCD panel. Step 1: One flickering black line would appear before “208Vac” after pressing the “Select” button three times. Step 2: The flickering line would move to “230Vac” after pressing the “Select” button two times again. www.redeal.pt...
- Page 29 Step 3: The line below “230Vac” would turn to flickerless after pressing the “Enter” button. Step 4: The output voltage would be 230Vac after the UPS is turned on. www.redeal.pt...
-
Page 30: Trouble Shooting
Battery over voltage (over charged) Battery low Charge fail DC-DC temperature high Inverter temperature high Ambient temperature high Line voltage high (OVCD action) Battery open Overload Fault Code Bus fault Inverter fault Overload fault Over temperature fault Inverter short Bus short www.redeal.pt... - Page 31 Inside temperature Check the ventilation of the high of the UPS is too UPS, check the ambient high temperature. Inverter temperature Inside temperature Check the ventilation of the high of the UPS is too UPS, check the ambient high temperature. www.redeal.pt...
- Page 32 UPS. Check whether the output of UPS and loads is short circuit. Make sure the short circuit is removed, and the UPS has no internal faults before turning on again. Bus short UPS internal fault Notify dealer www.redeal.pt...
- Page 33 3. LCD display status, Buzzer alarm status 4. Utility power condition, load type and capacity, environment temperature, ventilation condition 5. The information (battery capacity, quantity) of external battery pack if the UPS is “S” model 6. Other information for complete description of the problem www.redeal.pt...
-
Page 34: Maintenance
Reconnect the new batteries to the UPS by following section 5.8. Then turn on the battery breaker and press the ON switch to make the UPS do the battery test, check whether the battery information is normal. www.redeal.pt... -
Page 35: Technical Data
Derating to 90% when the output voltage is adjusted to 208VAC Derating to 80% when the output voltage is adjusted to 200VAC BATTERIES Model No. ZP120N 1K ZP120N 2K ZP120N 3K Number and type 3 12V 7Ah 8 12V 7Ah 8 12V 7Ah 10.2 Operating Environment... -
Page 36: Typical Backup Time (Typical Values At 25° C In Minutes:)
10.3 Typical backup time (Typical values at 25° C in minutes:) Model No. 100 % Load 50 % Load ZP120N 1K ZP120N 2K ZP120N 3K 10.4 Dimensions and weights Dimensions W D H Net Weight Model No. (mm) (kg) 145 400 220... -
Page 37: Communication Port
The following is the pin assignment and description of DB-9 connector in AS400 card. Pin # Description Pin # Description UPS Fail Output Bypass Output Summary Alarm Output Battery Low Output Input UPS ON Output Remote Input Line Loss Output Shutdown Common Input www.redeal.pt... - Page 38 DB-9 Interface of AS400 communication protocol www.redeal.pt...
-
Page 39: Software
3. When downloading all required files from the internet, enter the serial No: 511C1-01220-0100-478DF2A to install the software. When your computer restarts, the WinPower software will appear as a green plug icon located in the system tray, near the clock. www.redeal.pt... -
Page 40: Appendix: Rear Panel
Appendix: Rear panel Back View of ZP120N-1K and 1K-KS Back View of ZP120N-2K and 2K-KS www.redeal.pt... - Page 41 Back View of ZP120N-3K Back View of ZP120N-3K-KS www.redeal.pt...
