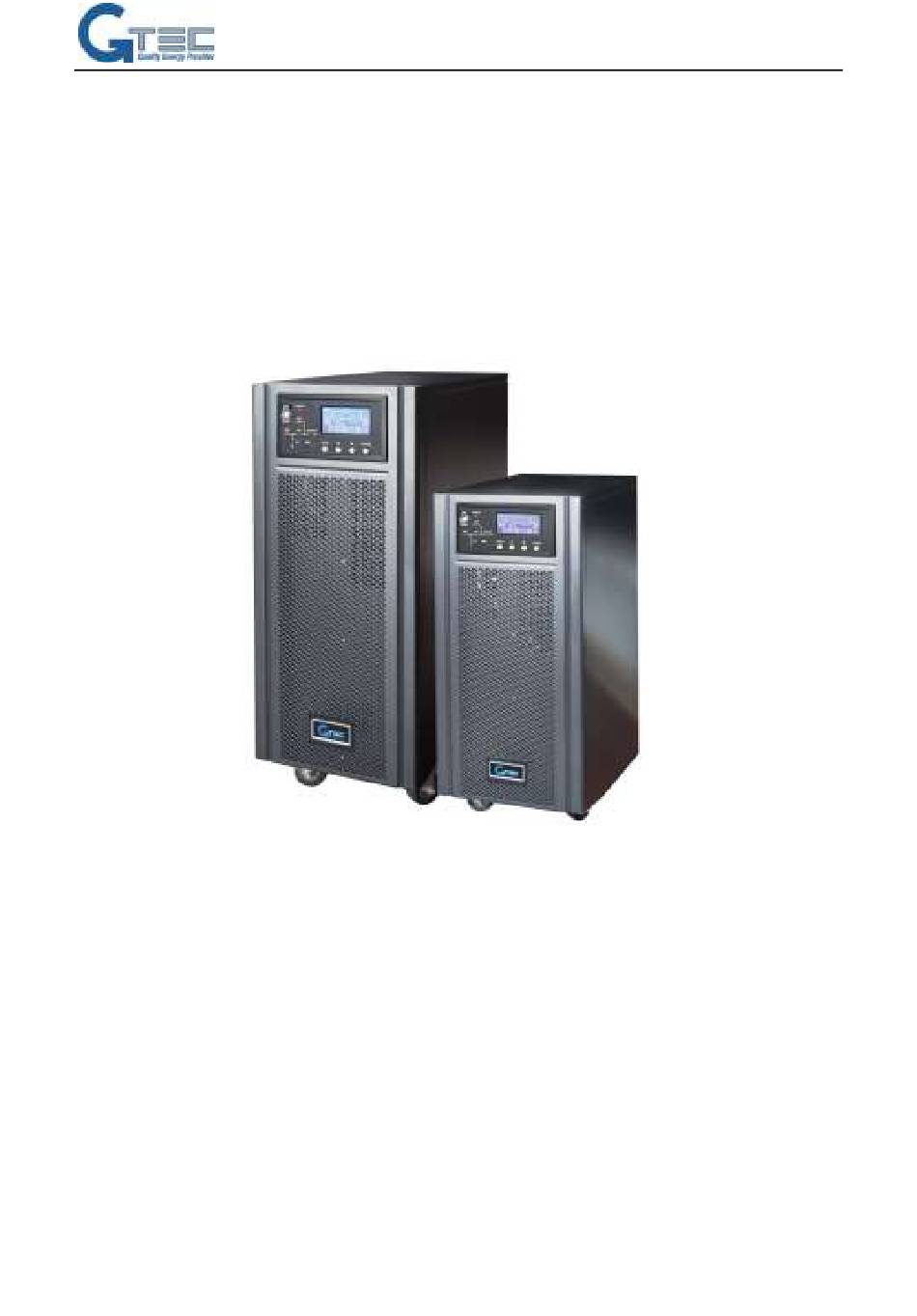

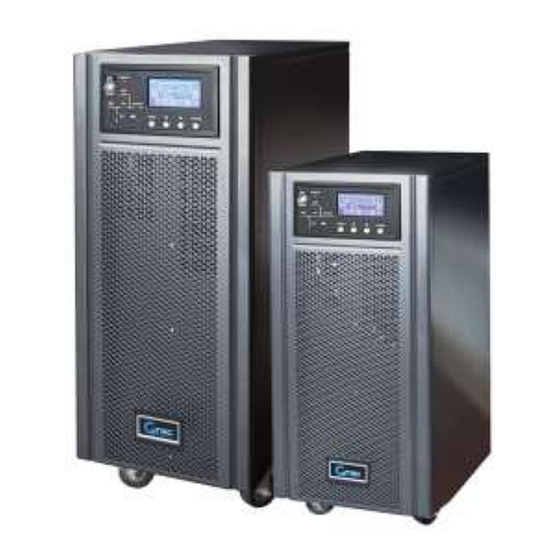

- Page 1 Uninterruptible Power Supply ZY120 6-20kVA 1/1 User Manual...
- Page 2 EMPTY PAGE ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 3: Important Safety Instructions
If the battery is damaged in any way or shows signs of leakage, contact your local representative immediately. ⚫ Do not dispose of batteries in a fire. The batteries may explode. ⚫ Handle, transport and recycle batteries in accordance with local representative. ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 4 Clean the UPS with a dry cloth. Do not use liquid or aerosol cleaners. ⚫ Never block or insert any objects into the ventilation holes or other openings of the UPS. ⚫ Do not place the UPS power wires where it might be damaged. ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 5 In the states of the European community or If is provided of local state disposal is possible return the product to the manufacturer, or ask a withdrawal when is purchasing an equivalent equipment. ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 6: Table Of Contents
NPACKING AND NSPECTION 5.2 C ................... 15 ONNECT NPUT UTPUT OWER 5.3 O PERATING PROCEDURE FOR CONNECTING THE LONG BACKUP TIME MODEL WITH THE ........................19 EXTERNAL BATTERY 5.4 P ......................20 ARALLEL OPERATION ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 7 ...................... 33 HECKING STATUS 10.2 A ................. 33 DJUST THE FACTORS CAUSED THE PROBLEM ANNEX A. RATED PARAMETERS SET ON LCD ................38 ANNEX B. INTELLIGENT SLOT ....................41 ANNEX C. EPO ..........................42 ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 8: Electromagnetic Compatibility
Storing magnetic media on top of the UPS may result in data loss or corruption. Turn off and isolate the UPS before cleaning it. Use only a soft cloth, never liquid or aerosol cleaners. ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 9: Introduction
2. INTRODUCTION Congratulations on your choice of the ZY120 uninterruptible power system (UPS), the UPS comes in nominal power ratings of 6000VA,10000VA and 20000VA. It is designed to provide conditioned power to microcomputers and other sensitive electronic equipment. When it is generated, alternating current is clean and stable. However, during transmission and distribution it may be subject to voltage sags, spikes and complete power failure that may interrupt computer operations, cause data loss and even damage equipment. - Page 10 SNMP card slot (option) Dry contactor slot USB port RS232 Parallel ports (option) Fans Reserved customer function External battery connector. 10. Internal manual bypass 11. Input breaker 12. Cable entry protector 13. Terminal cover ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 11: System Description
AC power. Upon a utility power failure, the inverter receives its required energy from the battery through the DC-to-DC converter. In both modes of operation, the UPS inverter is on-line and continuously generating clean, precise, regulated AC ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 12: Battery Charger
Bypass LED. To manually transfer the connected load from the inverter to bypass, press the ON/OFF button or Manual Bypass button once. NOTICE：The bypass power path does NOT protect the connected equipment from disturbances in the utility supply. ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 13: Product Specification And Performances
192VDC 192VDC 192VDC Battery Current 37A max 60A max 120A max I recharge Voltage 220V/230V/240V Output Current 27/26/25A 45/43/42A 91/87/83A Dimension 250*544*750 250*526*640 250*526*480 250*526*640 250*526*480 (WxDxH) mm Weight (kg) Factory setting 230Vac-50Hz ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 14 NOTICE：If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated in use, please refer to the following: Altitude (M) 1000 1500 2000 2500 3000 3500 4000 4500 5000 Derating Power 100% ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 15: Installation
It’s suggested to install input protection breaker upstream the UPS. Here below the references: ZY120-6K / KS: 32A curve C 250Vac , 40A-2P curve C 250Vac (Ks) ZY120-10K / KS: 63A-2P curve C 250Vac, ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 16 For 6-10K, connect the input and output wires to the corresponding input and output terminals according to the fig.3. Make sure that wires be connected to terminals through cable entry protector shown as fig.3: ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 17 Anderson connector be connected to battery -, or else it may destroy UPS. For 20K(KS),connect the input 3 line wires to input A/B/C separately as fig.4. Or connect 1 input wire to input C. ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 18 11) To connect the load with the UPS, please turn off all the loads first, then perform the connection and finally turn on the loads one by one. ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 19: External Battery
Anderson connector be connected to battery -, or else it may destroy UPS. For the long backup time modes, make sure that the capacity of batteries is larger than 24AH to avoid over ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 20: Parallel Operation
2. Parallel installation Users need to opt two standard 15-pin communication cables which length is appropriate to be less than 3m. shown as fig.5: ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 21 ● When the distance between the UPSs in parallel and the breaker panel is greater than 20 meters, the difference between the wires of input & output of the UPSs is required to be less than 10%. The wiring diagram are shown as follows: ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 22 UPS2 battery breaker Battery pack 2 UPS2 output breaker UPS2 input breaker Load UPS1 output breaker Utility UPS1 input breaker UPS1 battery breaker Battery pack 1 (a)Wiring Diagram of 6K/10K ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 23 UPS2 output breaker UPS2 battery breaker UPS2 input breaker UPS1 output breaker UPS1 battery breaker UPS1 input breaker (b)Wiring Diagram of 20K-KS Fig.6 wiring diagram ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 24 Load Output 1# Output 2# UPS 1# UPS 2# Inverter Inverter Bypass Bypass Charger Charger Rectifier/ Rectifier/ Parallel Communication Cables Utility Power Input Fig 7. Parallel Installation Diagram ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 25: Controls And Indicators
UPS status: green--normal mode, red--UPS is abnormal Rectifier indicator: green--rectifier is normal, green flicker--rectifier starting, red--rectifier fault, flicker--rectifier alarm, dark—rectifier is not working Inverter indicator: green--inverter is normal, green flicker--inverter is starting or tracking with bypass(ECO), red—inverter fault and ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 26 Voltage, current, frequency, PF Battery: voltage, discharge current, battery status, Battery information battery temperature, capacity DC bus voltage Output information: Voltage, current, frequency, PF Output information Load information: Active power, apparent power, percent ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 27: Operation
Mute on, mute off 7. OPERATION 7.1 Operation Mode 1. Turn on the UPS in normal mode 1) After you make sure that the power supply connection is correct, and then close the battery ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 28: Parallel Operation
This UPS system has parallel machine function, if you want to add single machine to parallel system, please follow operational process of joining new machine; if you must remove UPS, please follow operational processes of removing parallel machine. 2. How to install a new parallel UPS system: ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 29: Maintenance Bypass Mode
INV output. 7.3 Maintenance Bypass Mode Maintenance Bypass Mode operates on the condition that the inner power supply of the UPS is cut off and the load is supplied by the maintenance bypass. ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 30 Input and Output are closed (in the on position); the Maintenance Bypass is open, as it is shown in the figure above; Transfer to the Maintenance Mode for maintenance (a) Enter the menu -->function 1-->transfer to bypass and the system transfers to bypass. ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 31: Battery Maintenance
⚫ Replace batteries with the same number and same type of batteries. ⚫ Do not replace the battery individually. All the batteries should be replaced at the same time following the instructions of the battery supplier. 9. NOTES for BATTERY DISPASAL and REPLACEMENT ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 32: Battery Disposal
Remove metal bars which are used to fasten batteries. Replace batteries one by one. Screw metal bars back to UPS. Connect the battery wires one by one. Take care of electrical shock while connecting the last wire. ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 33: Trouble Shooting
Check whether input is normal REC over temperature, bus over REC Fault Fault voltage, input current unbalance, soft start fail INV over temperature, INV IGBT INV Fault Fault broken, INV relay fault Reserved Reserved Reserved ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 34 Input sequence is wrong, check Input Sequence Fault whether input wires connection is Fault soft-start Check whether rectifier SCR is Fault Fault broken, or SCR drivers are lost. Reserved Reserved over OK Fault Check environmental ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 35 Reserved Reserved Reserved Battery voltage low OK Fault Reserved Battery EOD Fault Reserved Reserved Reserved BYP voltage Fault Fault Check if bypass input voltage is ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 36 Check load level indicator and remove non-essential load. Over Over load Recalculate the load and remove load number of loads connected to UPS. INV relay or fuse OK Fault Check if inverter relay is shorted ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 37 Output shorted Fault or short internally, check if output connector is shorted. Battery test None 2--Fault Battery None 2--Fault maintenance Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 38: Annex A. Rated Parameters Set On Lcd
V(LN) 230 V(LN) 220 FREQ HZ 50 6. Press “ENTER” button to confirm output voltage selection and activate frequency setting. Press to select the rated frequency. 50Hz and 60Hz are available for selection. ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 39 OP V(LN) 230 FREQ HZ 60 8. Shutdown UPS completely and restart UPS to activate the setting. Enter in and enter in system information to check if the rated setting has been activated as below ZY120 6-20kVA (11) User Manual EN rev.04.doc...
- Page 40 RATE INFO 230V/60Hz 230V/60Hz Power 06000VA ZY120 6-20kVA (11) User Manual EN rev.04.doc...
-
Page 41: Annex B. Intelligent Slot
Inverter switch off when voltage present (12-24Vdc) between pin 2(-) and 4 (+) WARNING: Dry-contact card is not plug & play. Before insert the card insure to put the UPS in maintenance bypass. ZY120 6-20kVA (11) User Manual EN rev.04.doc... -
Page 42: Annex C. Epo
This function can be activated through a remote contact provided by the user. It requires opening NC contact. For remote function is necessary to remove the bridge and connect the terminals to the remote NC auxiliary contact of emergency switch. EPO terminals ZY120 6-20kVA (11) User Manual EN rev.04.doc... - Page 43 ZY120 6-20kVA (11) User Manual EN rev.04.doc...
