Texecom Veritas Reflex Instruction Manual

Instruction Manual

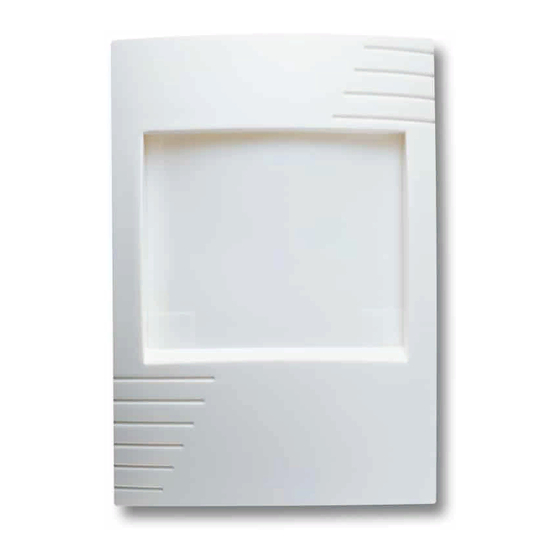

Veritas Reflex
Regulatory information
Supplier: Texecom Ltd, St. Crispin Way, Haslingden, Lancashire, BB4
4PW, UK.
Weee Directive: 2002/96/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted municipal waste
in the European Union. For proper recycling, return this product
to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
RoHs Directive: 2002/95/EC RoHS Compliant. Hereby, Texecom
declares that this device does not contain lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
depheny ethers (PBDE) in more than the percentage specified by EU
directive 2002/95/EC, except exemptions stated in EU
directive 2002/95/EC annex.
CE Directive: 2004/108/EC (CE directive): Hereby, Texecom declares that
this device is in compliance with the essential requirements
and other relevant provisions of Directive 2004/108/EC.
Maintenance: Test yearly by the installer
Warranty: 5 year replacement warranty
Security grade: EN Grade 2 Environmental class: Class II
Standards: EN50131-2-2, PD6662:2010
Disclaimer: The Veritas Reflex is not a complete alarm system, but only
its part. Therefore Texecom does not accept any responsibility or liability
for any damage that is claimed to be a result of an incorrect functioning
of the Veritas Reflex detector. Texecom reserves the right to change the
specification without a prior notice.
© 1994 - 2012 Texecom Ltd

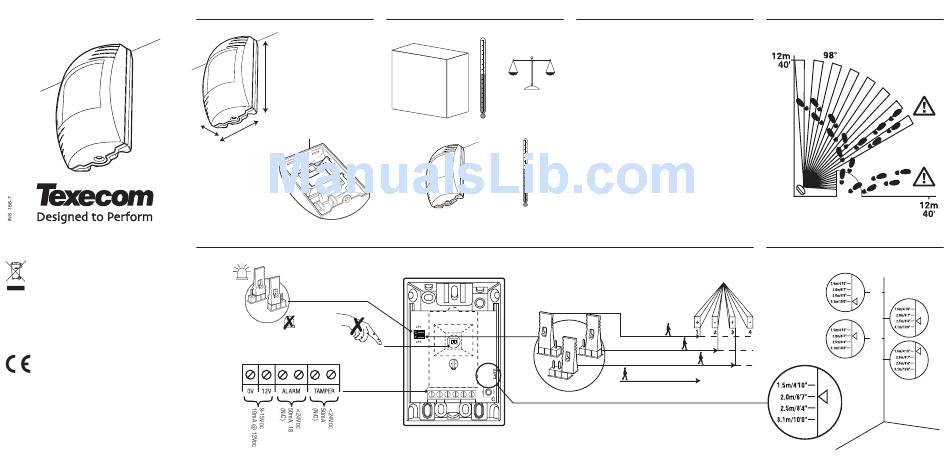

1. PHYSICAL
90mm
(3.6")
2.5mm (0.1") ABS
40mm
63mm
(1.6")
(2.5")
5. DETECTOR WIRING & SET UP
JP1 - LED
LED ON
LED OFF
DO NOT TOUCH
2. ENVIRONMENTAL
90g (3oz) approx.
-35°C (-31°F) to +60°C (+140°F)
-20°C (-4°F) to +55°C (+131°F)
JP2 - PULSE COUNT
1
1.5M/4'10
2.0M/6'7
2.5M/8'4
3.1M/10'0
Mounting
Height
-0V +12V ALARM TAMPER

3. FALSE ALARM PROTECTION

Design: Noise reduction circuits with maximum ground plane.
RF Immunity: No false alarms from 80MHz to 1GHz at 50V/m,
equivalent to a 700W uniform transmitter at 3m (10ft).
Complies with BS EN 61000-4-3 : 1997.
Electrostatic Discharge: No false alarm up to 8kV.
Complies with BS EN 61000-4-2 : 1995.
Fast Transient Immunity: No false alarm up to ±1kV.
Complies with BS EN 61000-4-4 : 1995.
High Energy Transient
Immunity: No false alarm up to ±1kV.
Complies with BS EN 61000-4-5 : 1995.
Conducted RF
Susceptibility: No false alarms at 10Vrms.
Complies with BS EN 61000-4-6 : 1996.
Conducted Emissions: Complies with EN 55022 Class B.
Radiated Emissions: Complies with EN 55022 Class B.
EMC: Independently certified to EN 50130-4 : 1996.
Pulse Count: Adjustable Pulse Count. Internal link to select.
FAST
2
NORMAL
SLOW
0.3 - 3.0m/s
1 - 10ft/s
3
4. COVERAGE & PICK-UP
✓
6. MOUNTING HEIGHT & SETTINGS
3.1m
(10'0")
2.5m
(8'4")
2.0m
(6'7")
1.5m
(4'10")
