Teka ISLA Installer Manual page 9

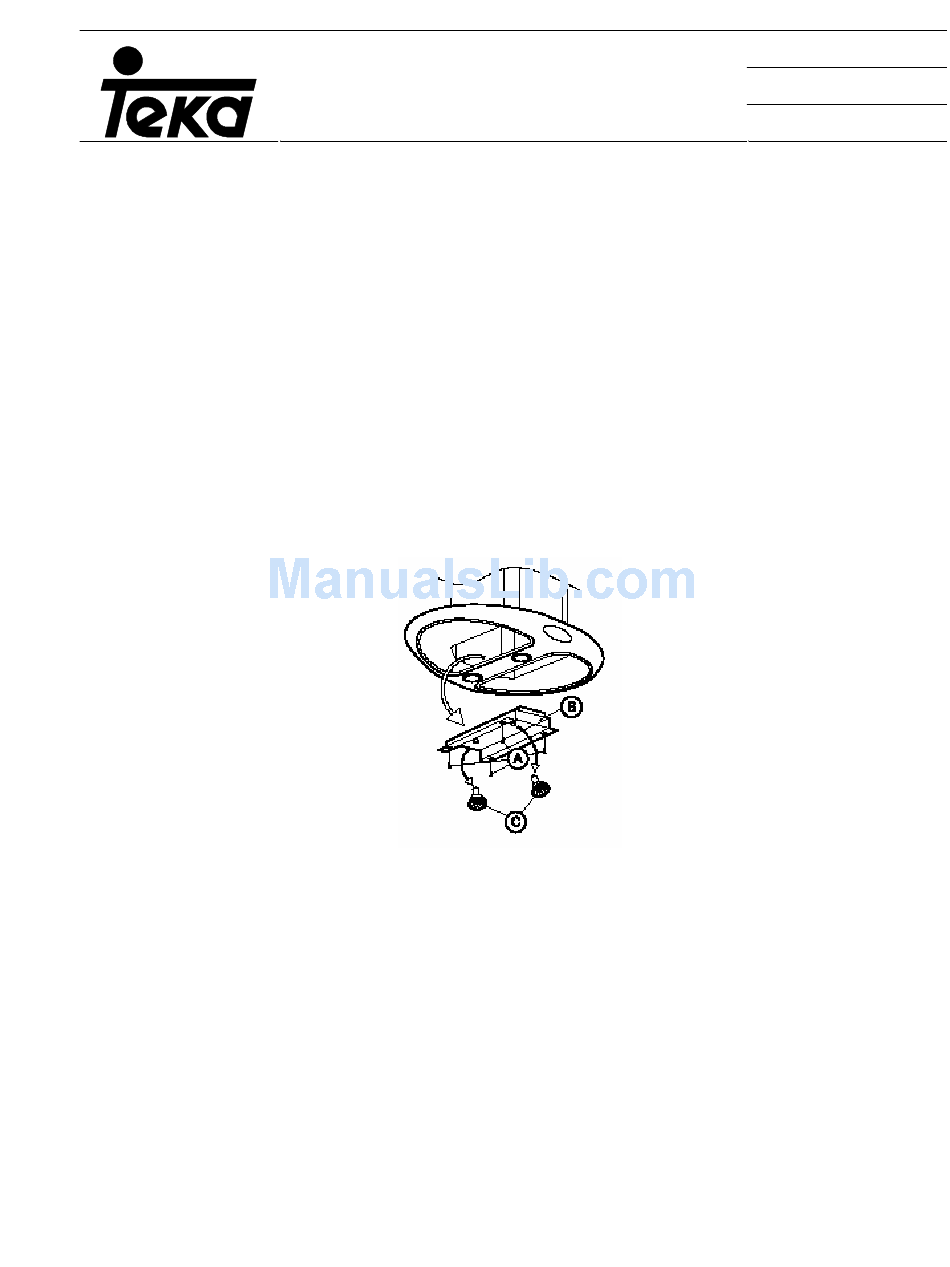

8) Adapt the combination of the lower tube cover (A9) and the upper tube cover (A8) to the
lower part of the of the internal structure (A7) and the decorative extra piece (U).
9) Fit the whole of the combined lower piece to the upper piece and mount on the ceiling with
the screws provided (A10) (M4 x 12), to the desired height.
10) Connect the upper part of the inner tube (not included) to the exit.
11) Lift the upper tube cover (A8) and secure it to the upper part with the supplied screws (G)
(M4 x 12), with a conical head.
12) Adjust the decorative supplementary piece (U), securing it to the hood with the screws (V)
(M4) supplied with the piece.
'
I
NSTALLER
51
M
S ANUAL
Code Nº: PRM-00-0001
Revised / Date: 2006
Page Nº: 51 of 95
