6.1 I
NSTALLATION OF EXTRACTOR HOOD
C-620

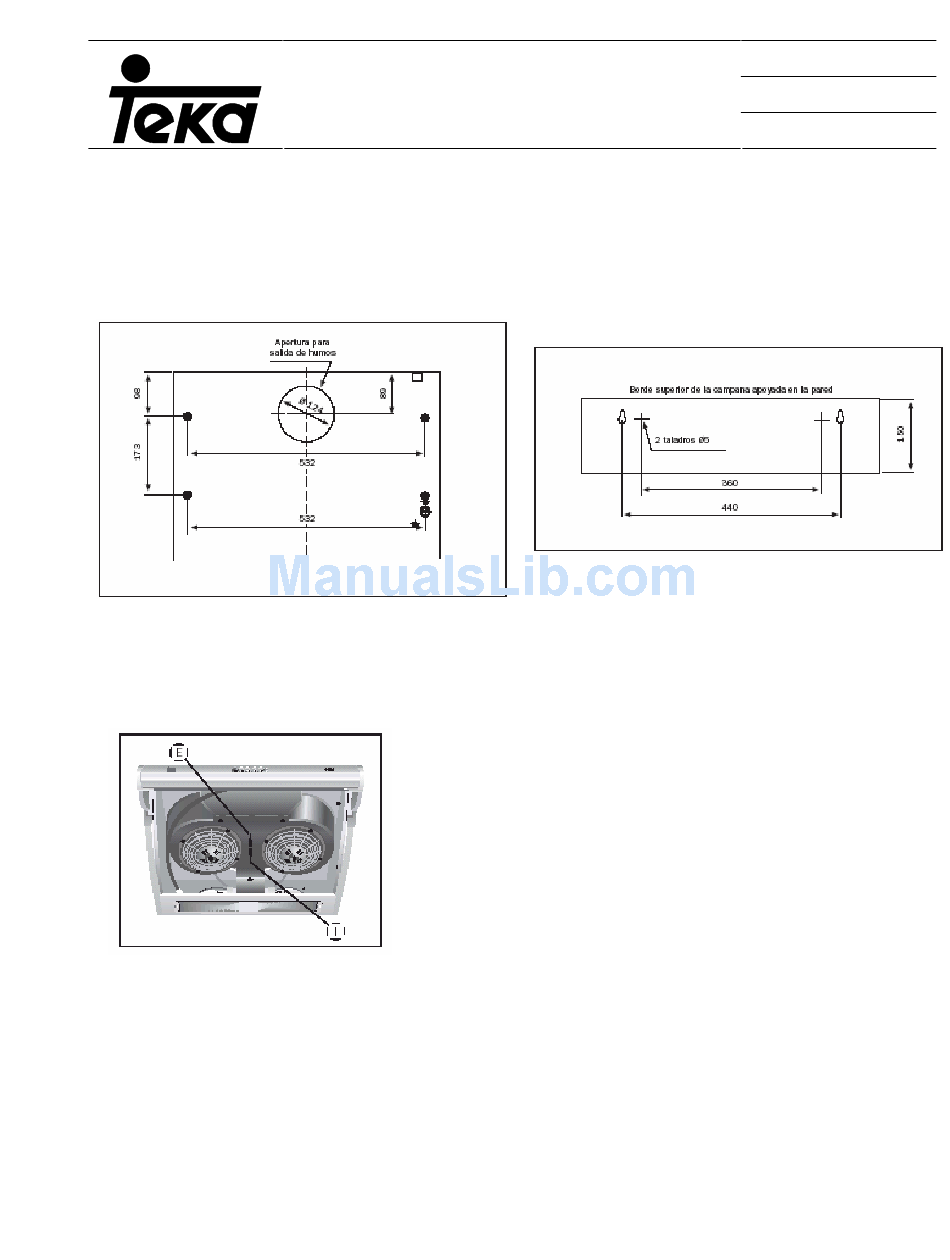

Installation diagrams for extractor hoods are as follows:
Installation under a cabinet
(Opening for smoke exhauster)
'
I
NSTALLER
When cutting out the upper part an evacuation duct outlet
must be included. In this case, the evacuation lever should
be in the "E" position.
In the event that there is recirculation instead of evacuation,
the lever should be in the "I" position. Ensure that the
upper opening is covered.
61
M
S ANUAL
Wall installation
(Top edge of hood supported on wall)
(2 5 mm Ø drill holes)
Fijación en la pared
