5.1 I
NSTALLATION OF DECORATIVE HOOD
DX ISLA

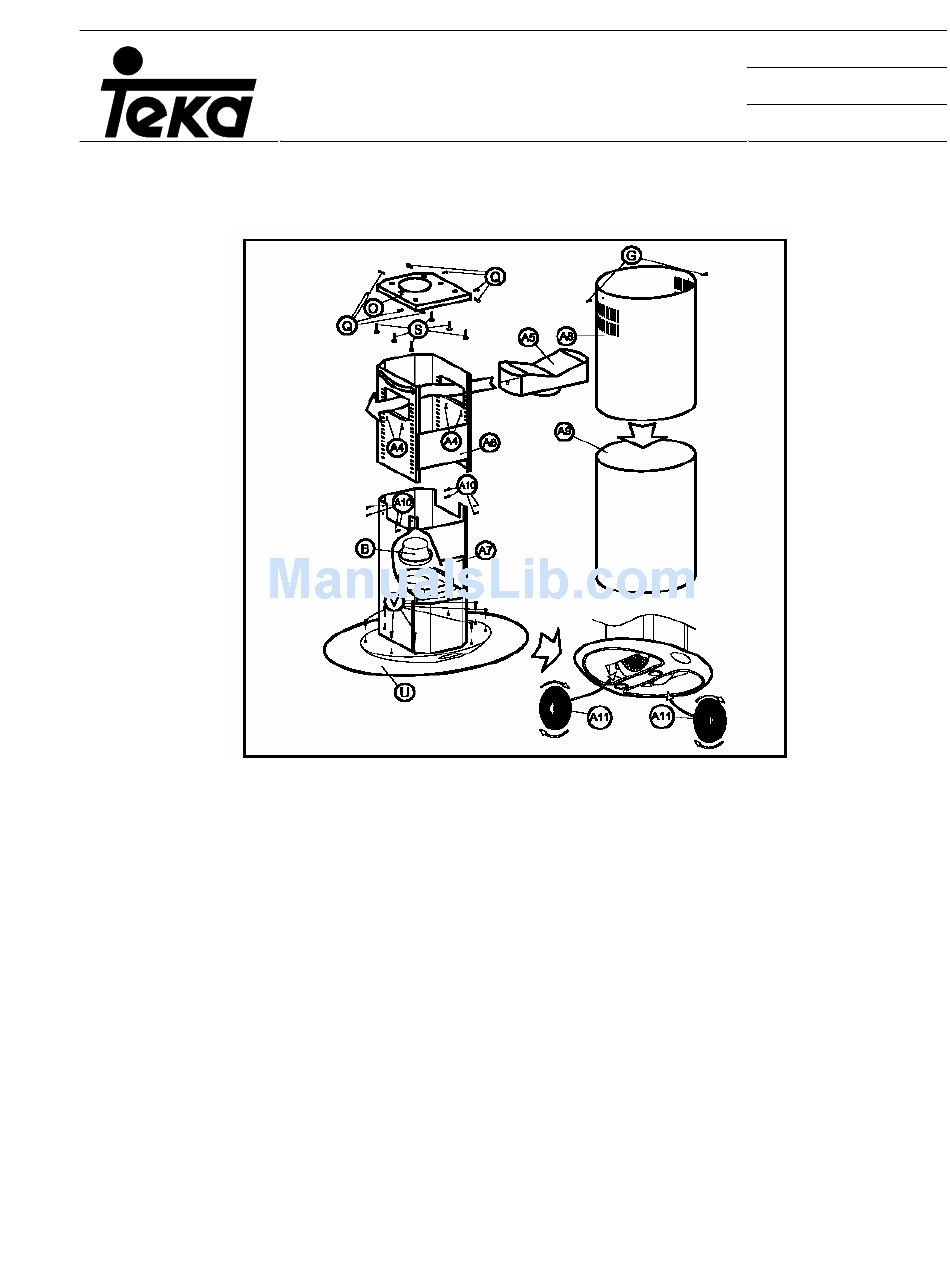

This hood should be fitted in the following way:
1) Using the support (O), mark and make a small hole for the screws (S) (8x45) in the ceiling.
2) Secure the support with the corresponding screws (S).
3) Place the upper part of the internal structure (A6) on the support (O), with screws (Q)
(M6x16).
4) Adjust the decorative supplementary piece (U), carefully securing it with the screws (V) (M4)
supplied with the piece.
5) Insert piece (B) if the interior tube (not supplied) has a diametre of 120 mm.
6) Secure the interior tube with a jubilee clip (not supplied) to (B), or on the exit section of the
motor, as appropriate.
7) Insert the upper tube cover (A8) inside the lower tube cover (A9).
'
